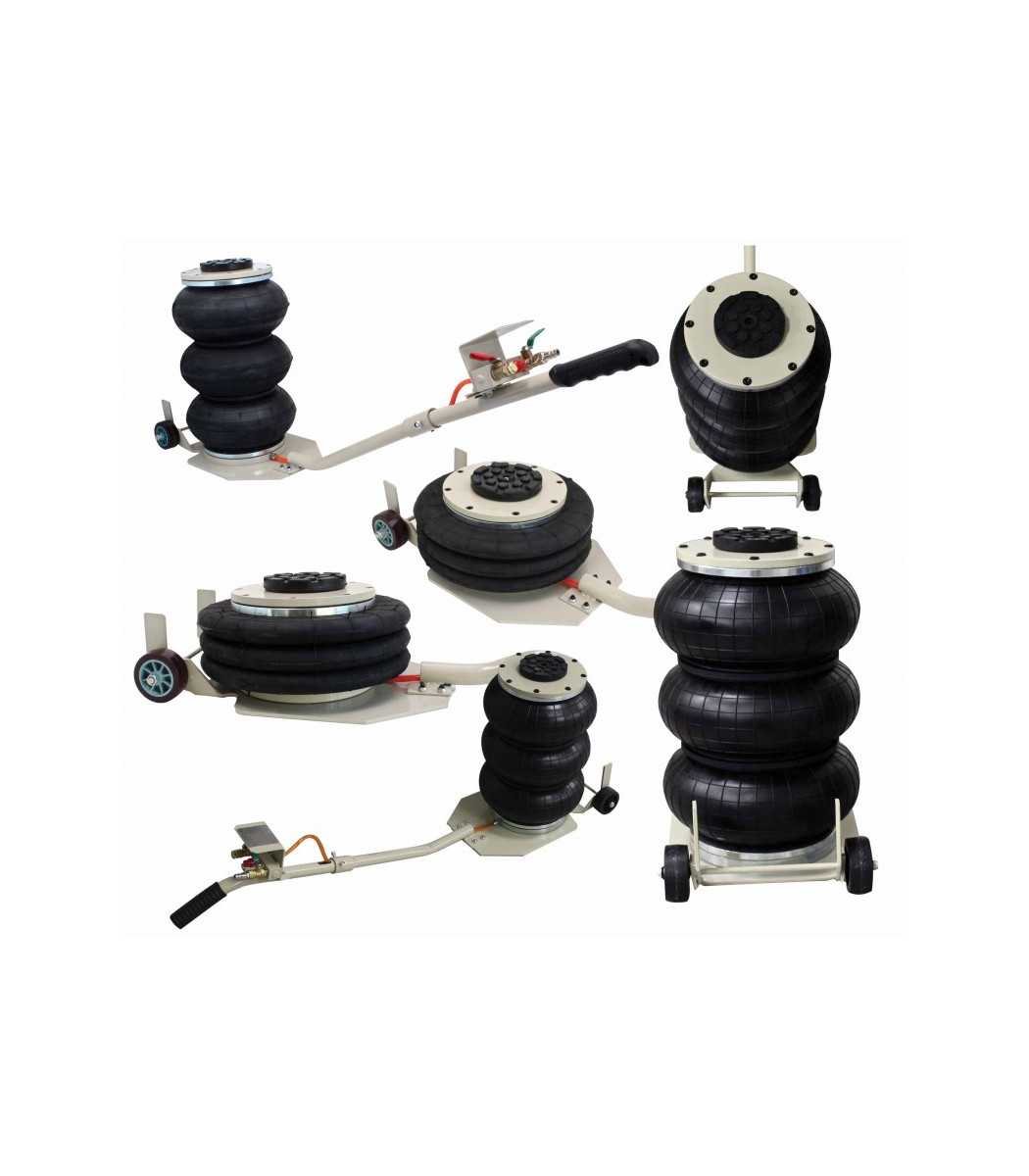

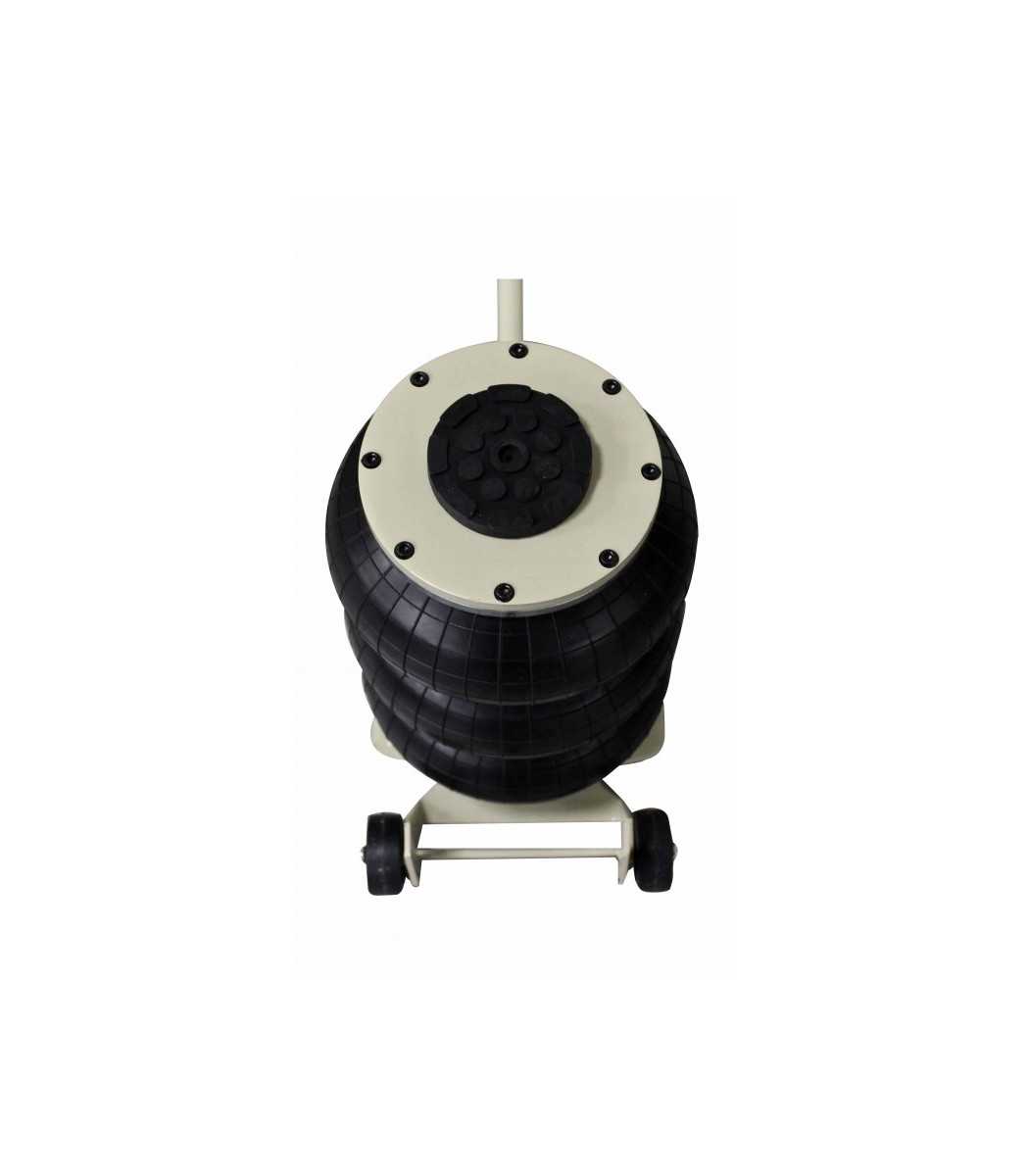

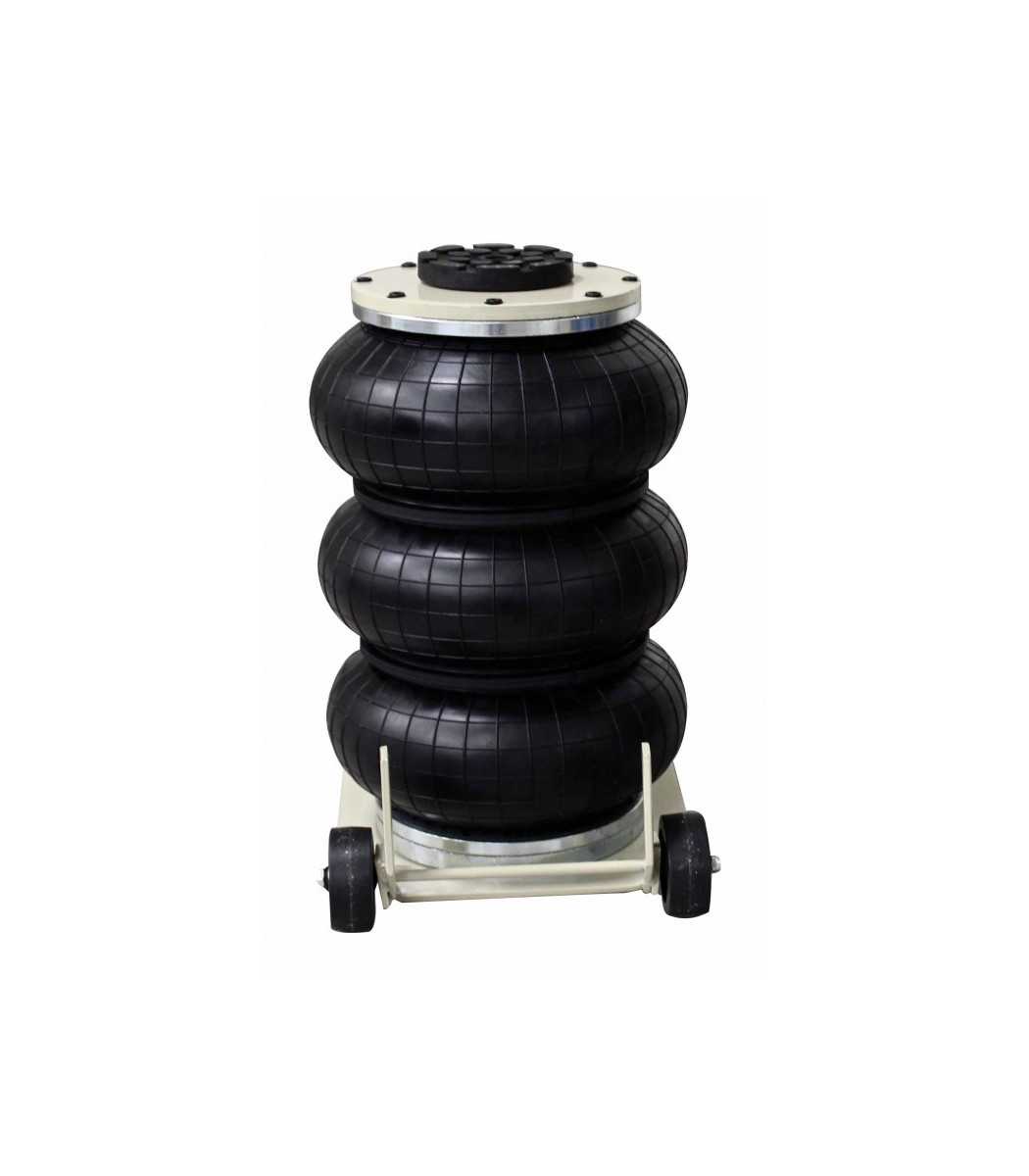

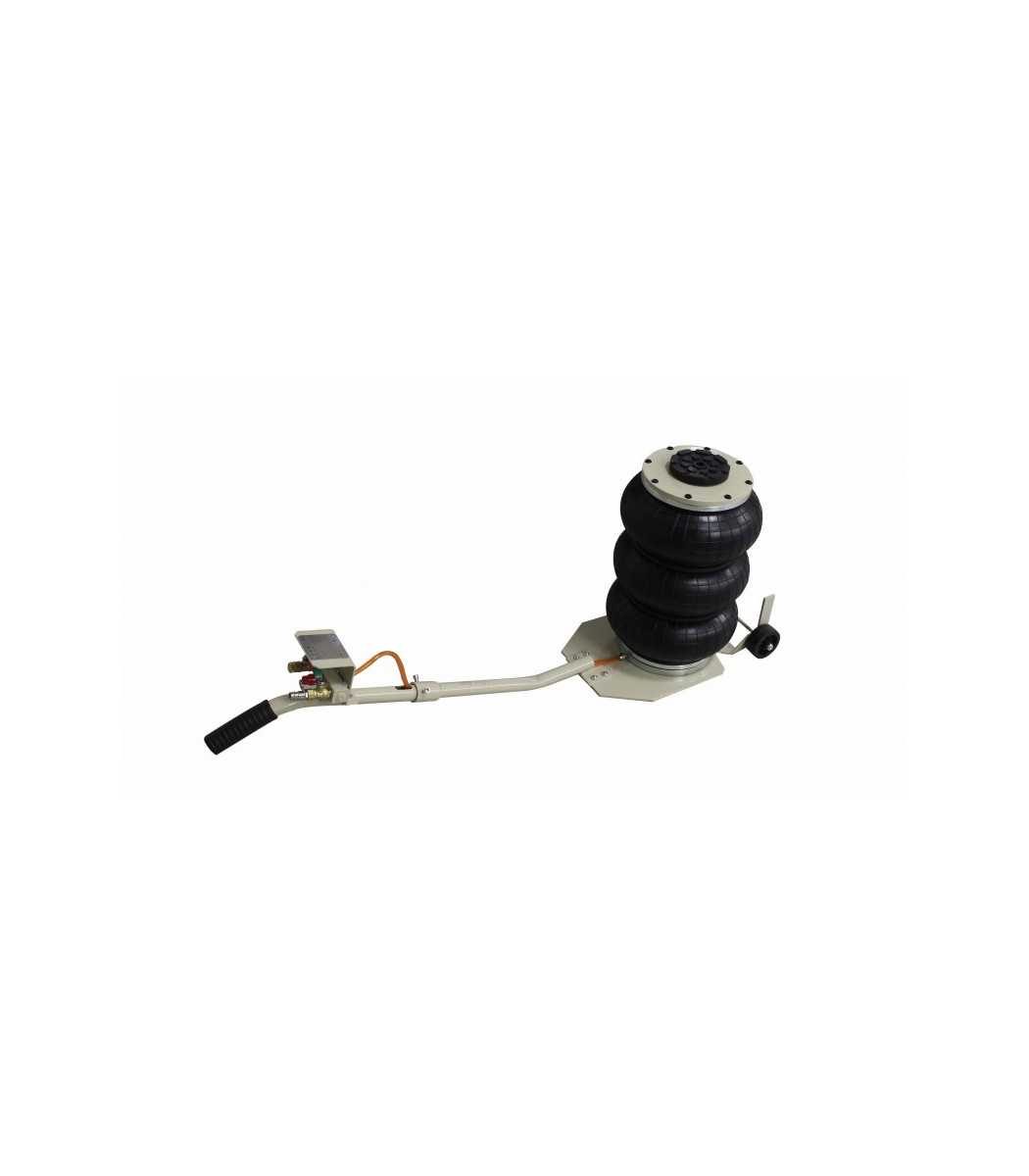

PILLOW CAR LIFT

The Pneumatic pillow lift, commonly called the SATRA snowman, has been designed and made to lift vehicles up to 3000 kg.

The lift has two control valves, inlet and outlet, making the control very easy.

After filling the bellows and disconnecting the compressed air supply, there is no risk of self-falling of the lifted vehicle.

This is ensured by a self-contained check valve, the opening of which is possible only by the supporter of the lift.

The drain valve is located at the top of the handle.

The lift is designed so that its storage and transport does not cause any trouble: a contorted handle, two wheels and a stand for foaming the lift for easier storage.

The bellow of the lift is made of reinforced rubber, and the guide sleeves used inside the bellows will ensure the stability of the structure during lifting.

In addition, the rubber separator prevents the lifting load from moving.

Maximum load: 3000kg
Minimum lifting height: 145mm
Maximum lifting height: 400mm
Rubber pillow diameter : 270mm
Working pressure: 6 – 12bar
