Air Conditioning Hose Pipe Crimping Machine

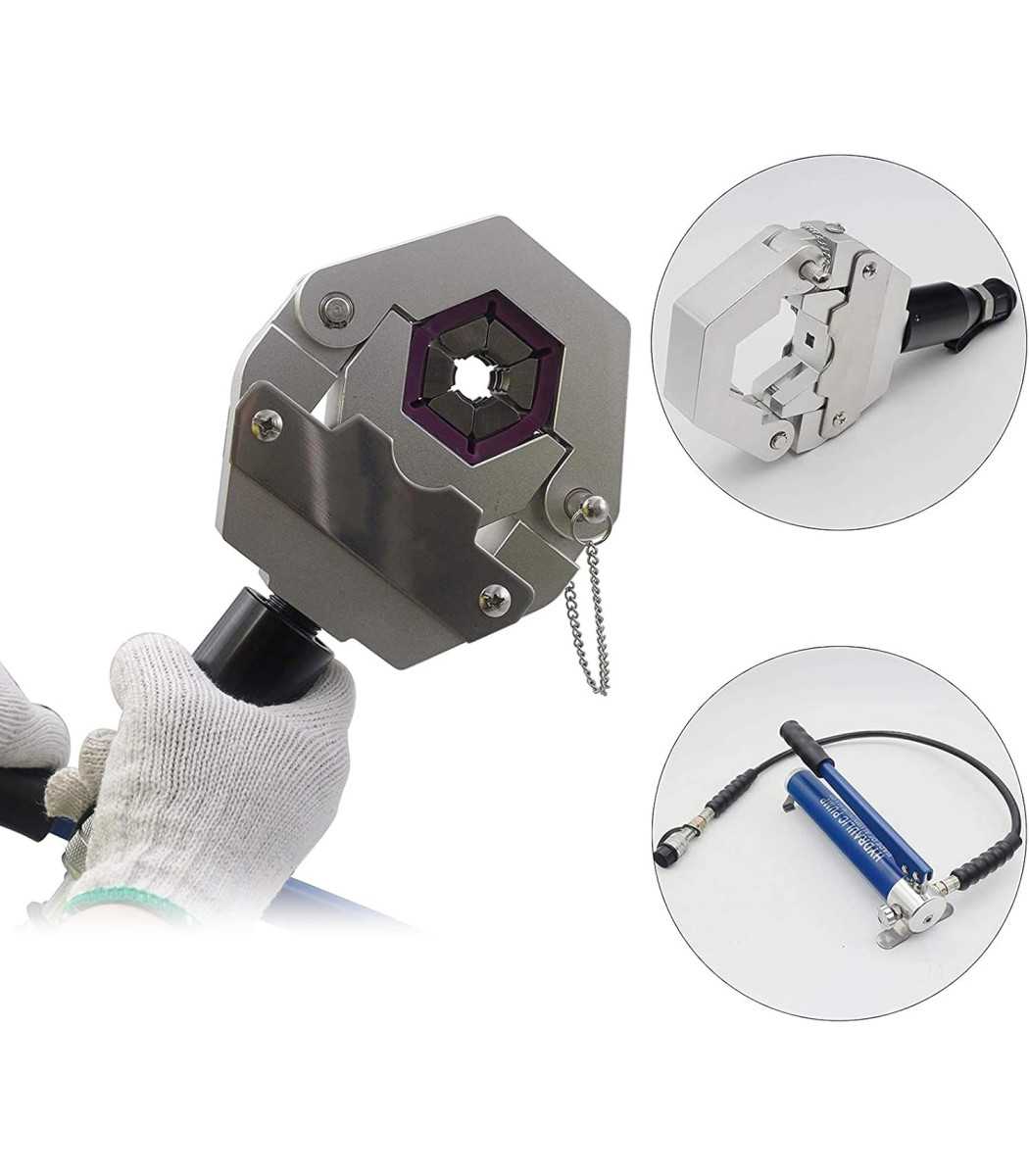

Manual, separate clamping machine hydraulic FS-7842 for car air conditioning cables. Perfect for making and repairing A/C cables with beadlock tips and reduced barrier (#6, #8, #10, #12). Separate layout hydraulic with drain valve provides a secure downforce and repeatable clamp in workshop and mobile conditions. The set includes 7 matrices matched to the popular diameters of A/C hoses.

Key features

• Downforce ~8 T and piston stroke approx. 15 mm – efficient, deep sleeve clamp on A/C hoses.

• Set of 7 dies : #6 (5/16"), #8(13/32"), #10 (1/2"), #12 (5/8") + SRB(reduced barrier) #8, #10, #12 – full coverage typical size of air conditioning cables.

• Separable hydraulic system with valve dump and tight cylinder – convenient operation and pressure control.

• Lightweight, durable construction (body ipompa made of aluminum) – easy to move and work in the field.

• Application : passenger cars, vans, machines, mobile installations – making new wires and fast repairs.

Technical specification

• Model: FS-7842

• System: manual, hydraulic (pump CP-180,3/8") thread

• Clamp strength: approx. 8 tons

• Piston stroke: approx. 15 mm

• Matrixes included:

• #6 5/16", #8 13/32", #10 1/2", #12 5/8";

• SRB: #8 13/32, #10 1/2", #12 5/8"

• Stamp hardness: up to ~ 53 HRC

• Oil capacity: approx. 350 cc

• Gross weight: approx. 9kg

• Body/Dairy Material: Aluminum Alloy /Steel tool

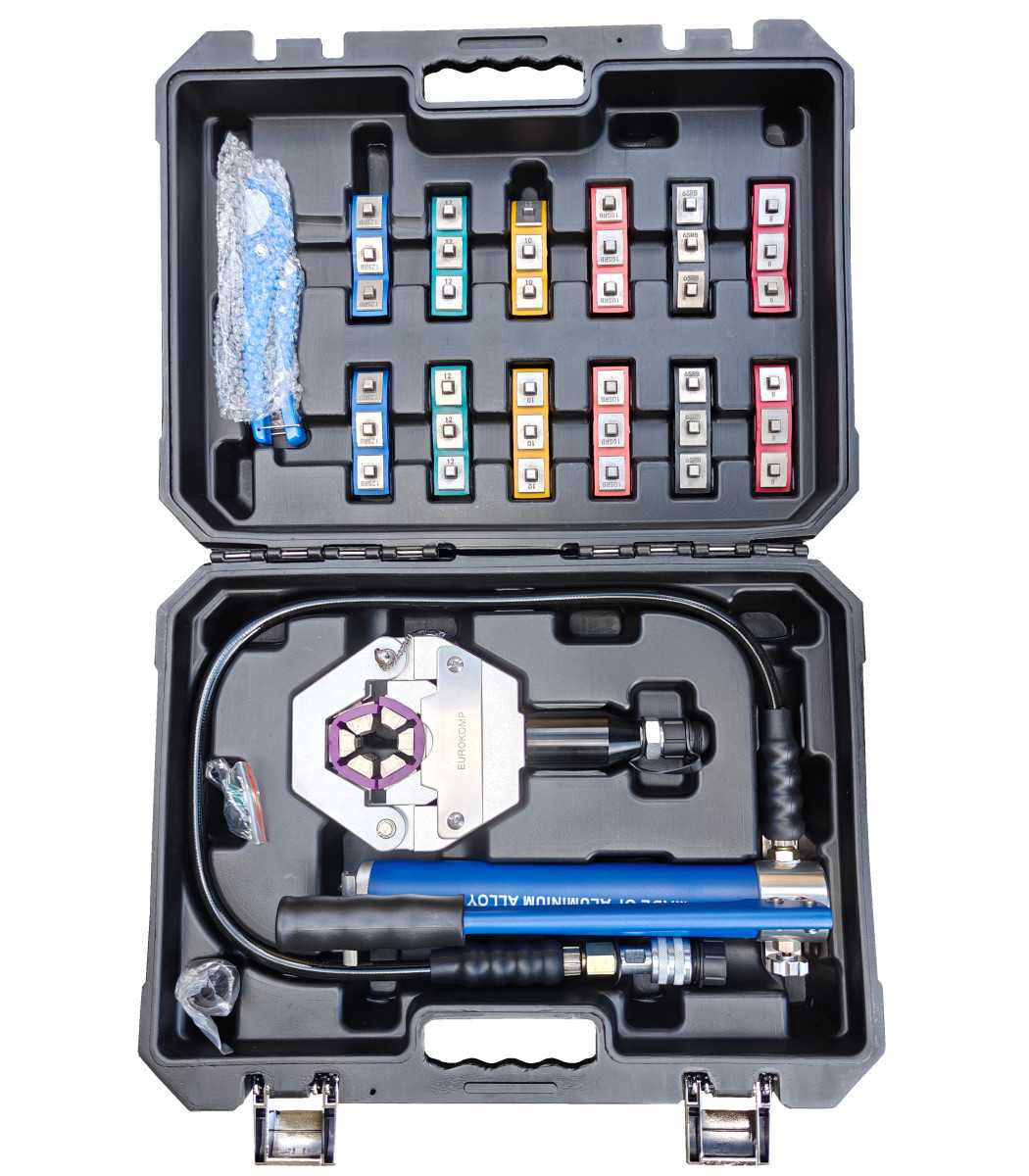

What's in the set

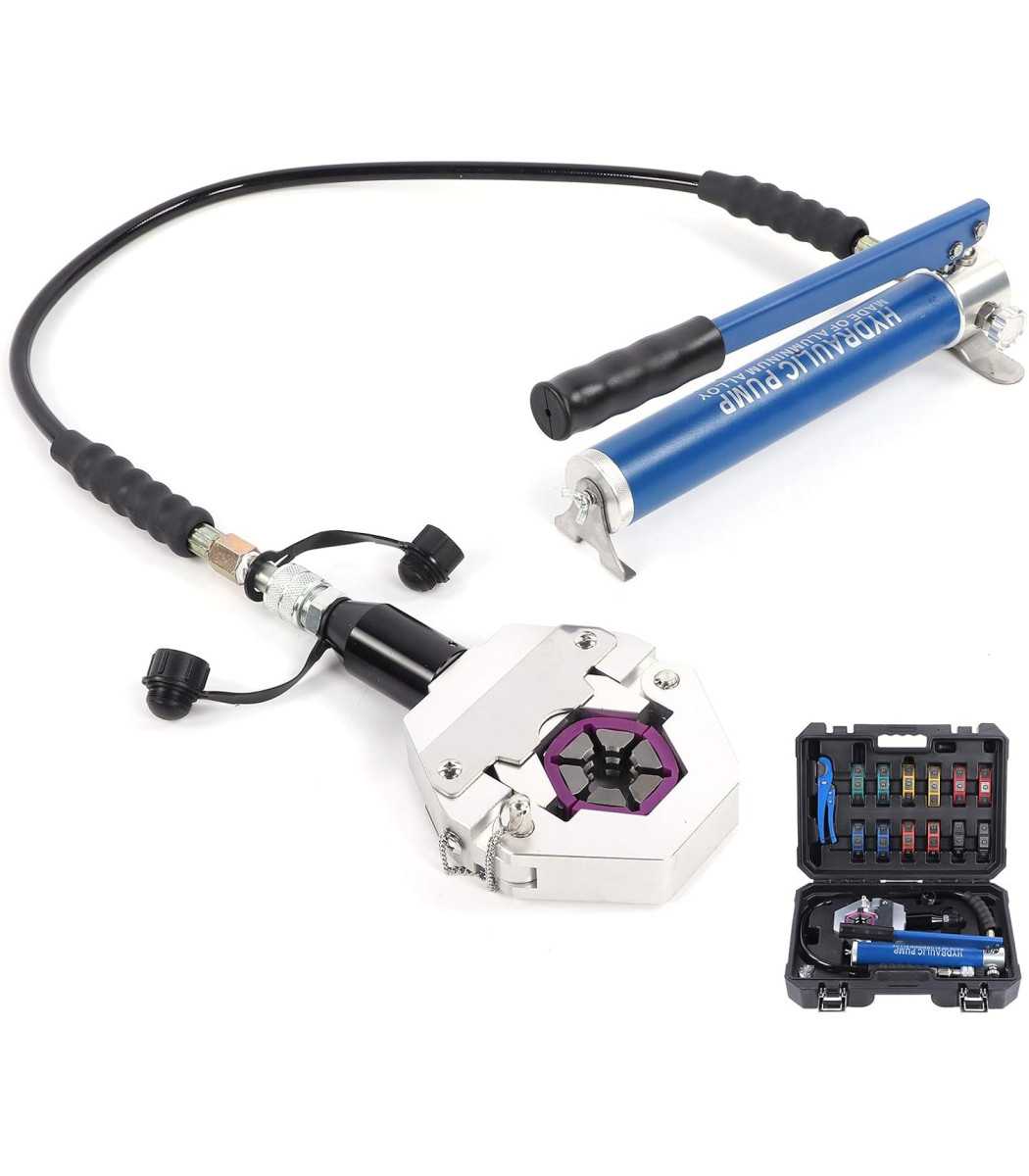

• Clamping head FS-7842 (separated)

• Manual hydraulic pump CP-180 with a wire

• 7 × dies: #6, #8, #10, #12 + SRB #8, #10, #12

• Transport suitcase/pack

• Instruction (EN), Instruction PL for download in version electronic

Compatibility and application

• Hose type: A/C beadlock and reduced barrier (R134a/R1234yf – depending on the applied tips)

• Tips: sleeves and connectors for ductsaclimation (#6/#8/#10/#12)

• Industries: A/C services, workshops, mobile service air conditioning, hobby/DIY (while maintaining health and safety procedures)

How to use

1. Select a matrix to the diameter of the hose/tip(#6/#8/#10/#12 or SRB).

2. Embed the sleeve on the wire and slip the tip in.

3. Place the connector in the dies, the headlep to stable backs.

4. Pump with a lever to the full clamp (control shape).

5. Open the valve – release the pressure and remove the clamped wire.
   Manufacturers' tips: work with the tool support about stable surface; use safety glasses.

Advantages for the Buyer

• A complete set of 7 dies – no need to buy matrices

• 8 T force and stable hydraulic downforce – repeatable effect

• Mobility : compact and low weight – work in car/area

• Support beadlock + reduced barrier – wide Compatibility
