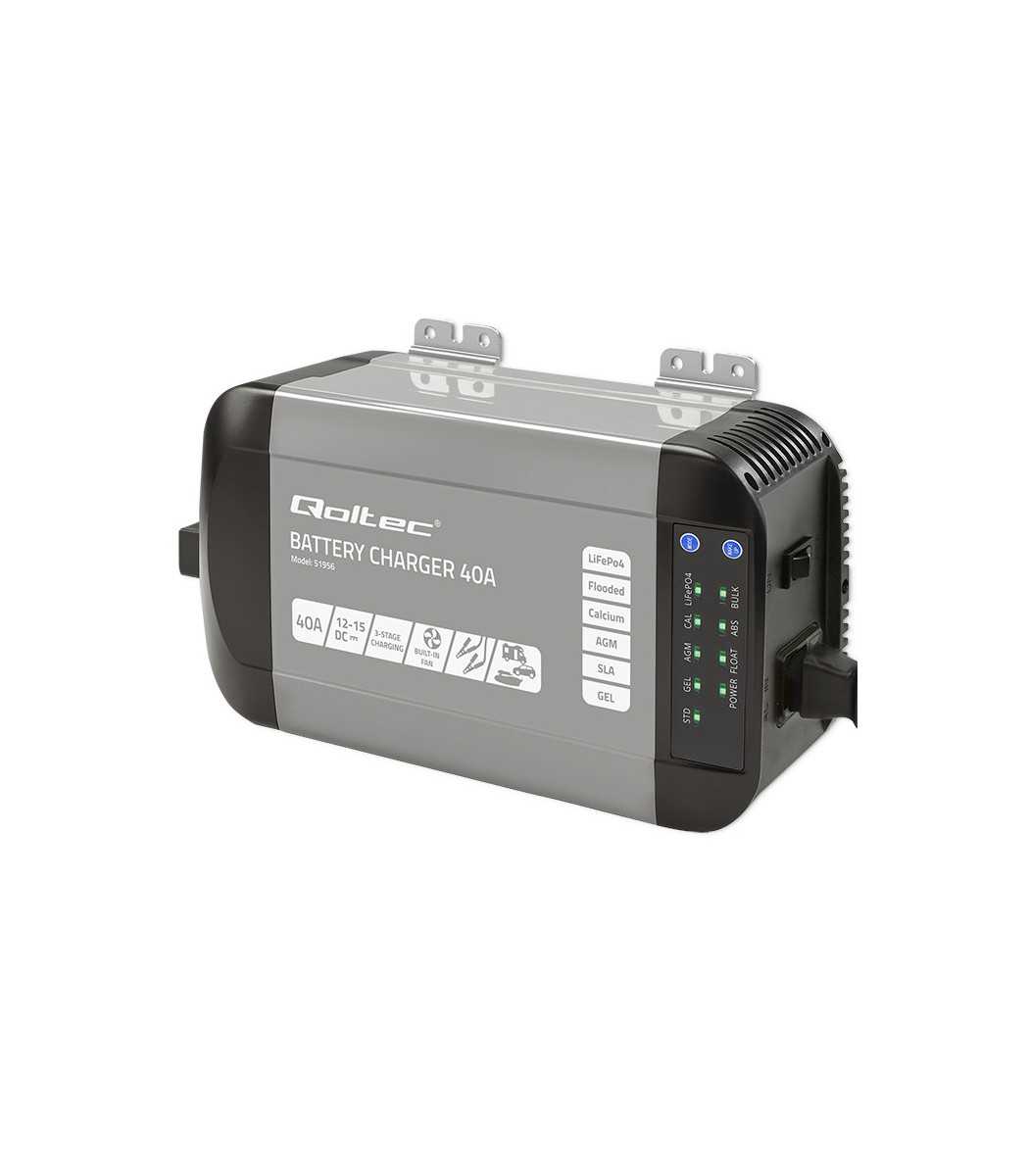

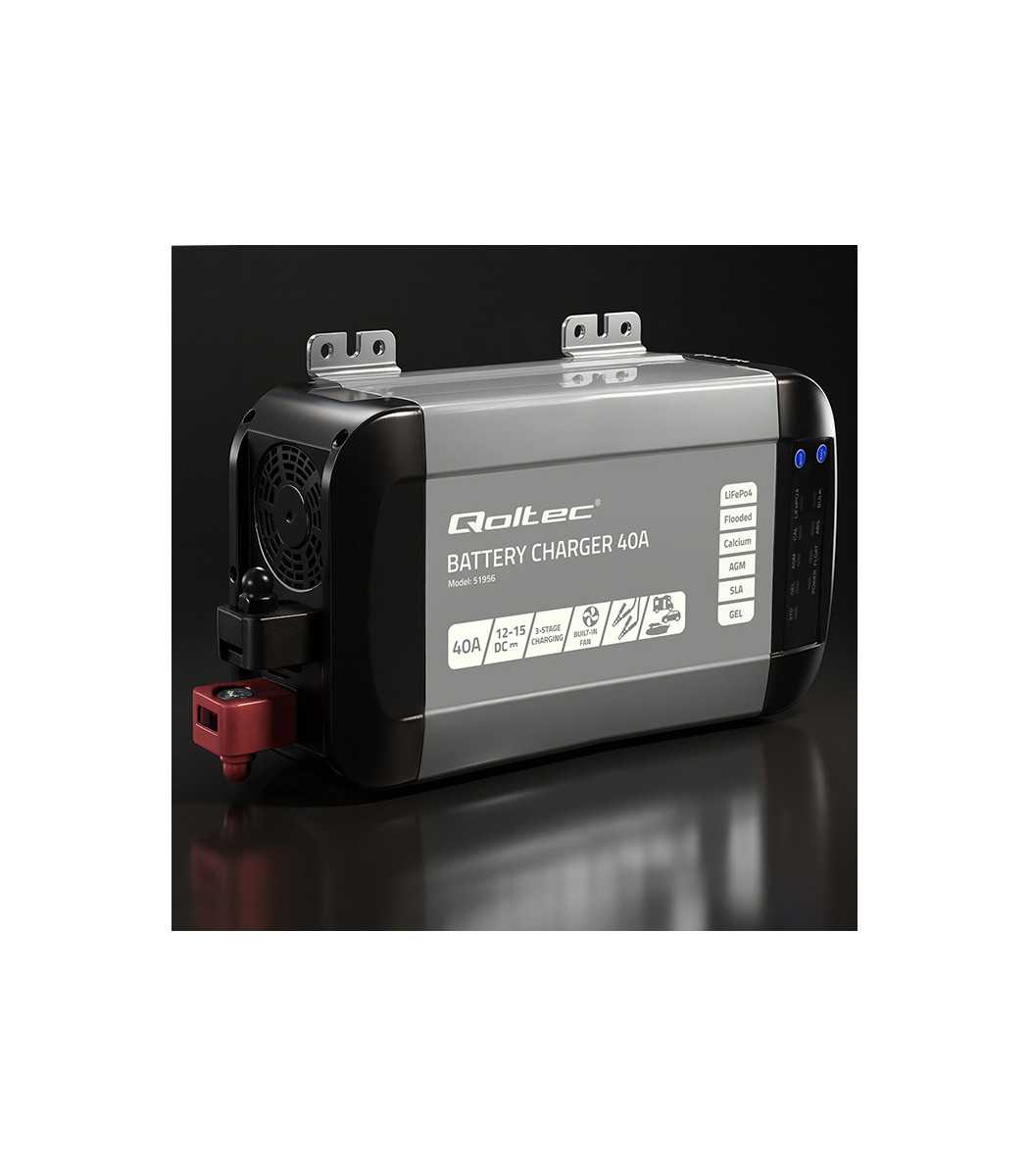

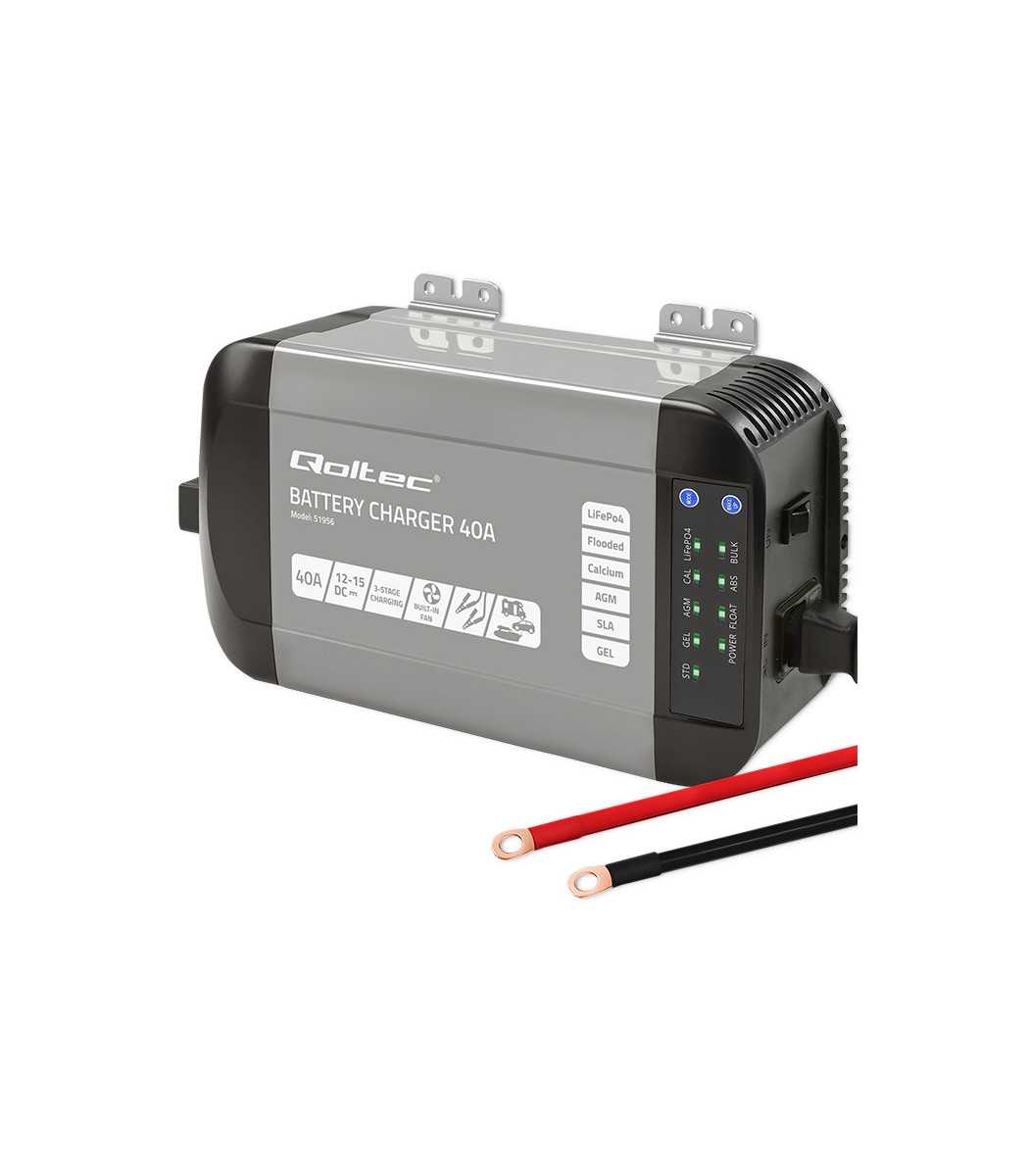

Monolith charger for LiFePO4, AGM, GEL, SLA batteries | 40A | 12V

Reference: LiFePO4 CHARGE 40A
€170.00

Tax included

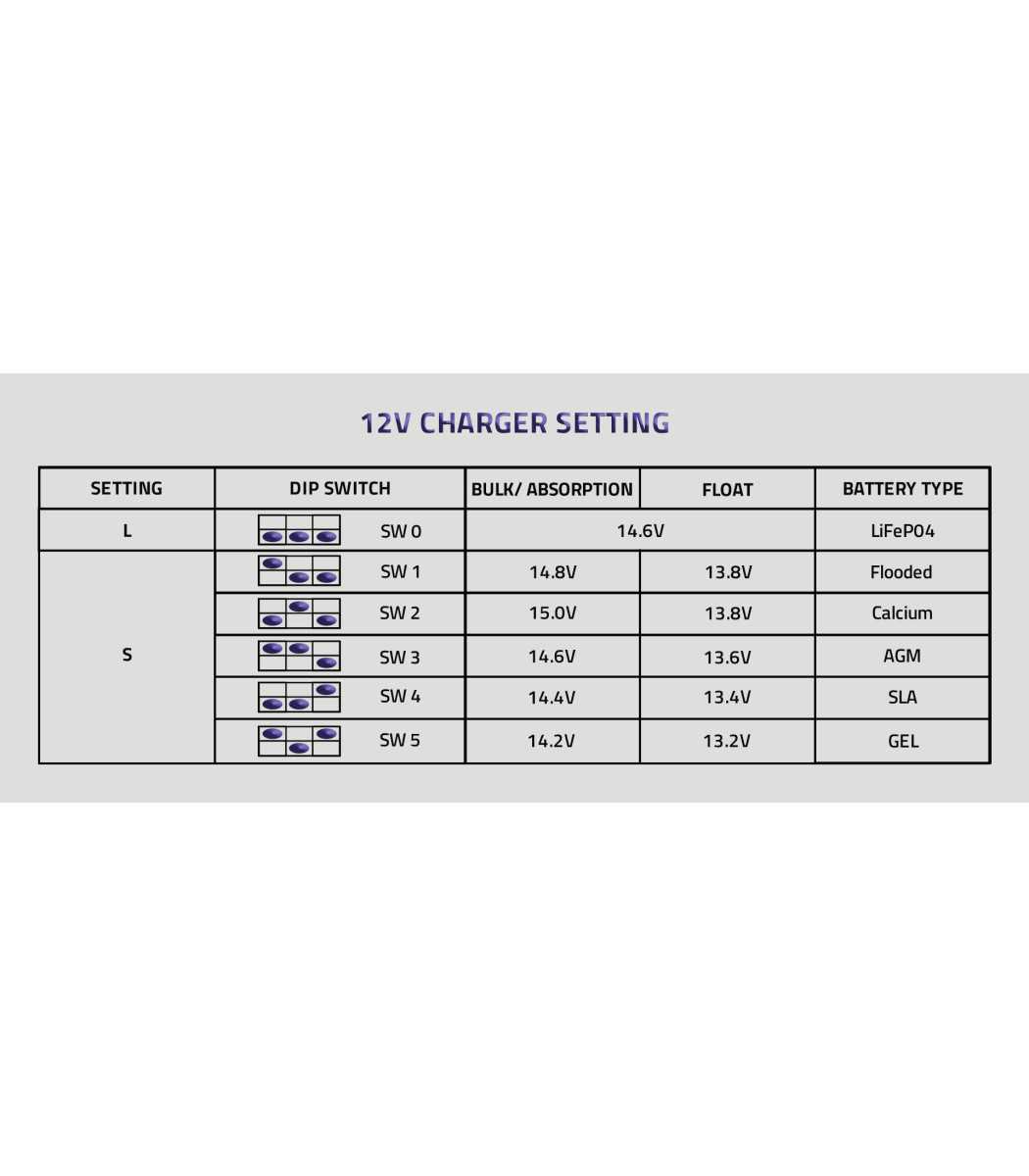

The BULK stage is the identification of the battery and its needs, charging up to 80% of the battery capacity, with a maximum current kept constant and a high voltage,
The BOOST The BOOST stage is the so-called absorption charging, it keeps the charging voltage constant between 14.1VDC and 14.8VDC, reducing the charging current,
The FLOAT stage is the last charging cycle, a so-called sustained charge in which the battery has already reached 95% of its capacity and gradually reaches 100%, there is a reduction in the charging voltage to a constant value between 13.0VDC and 13.8VDC, the charging current automatically drops to 0A once the battery is charged.

The current charging stage of the battery is indicated by an LED on the charger.

Product in stock

mouse info more information about this product.
The charger is designed for 12V batteries only. Make sure that the cables are properly matched to the batteries. Before removing the battery, first turn off all receivers and then disconnect it from the circuit. Only use
Packaging: Box
Package contents: 1 x Battery Charger 1 x Power Cable 1 x Set of Jumper Cables 1 x Fuse 1 x User Manual
Dimensions (D/L x W x H): 305x150x73mm
Depth / Length of package [mm]: 203
Package width [mm]: 382
Package height [mm]: 136
Net weight [kg]: 2,600
Gross weight [kg]: 2,700
Certificate: CE
Guarantee: 24 months
Additional information: The device has been CE tested and confirms compliance with applicable directives and standards.
Operating temperature: 0˚C ~ +40˚C
Charging type: 3-step charging mode
Input voltage: 180 - 260V
Output voltage: 12-15DC
Output current: Max 40A
Load regulation: 1.5% for output current; from no load to full load 0-40˚C
Connector: Red + black crocodile type terminals with brass contacts
Efficiency: 88%
Cooling: 1 x Thermally controlled fan

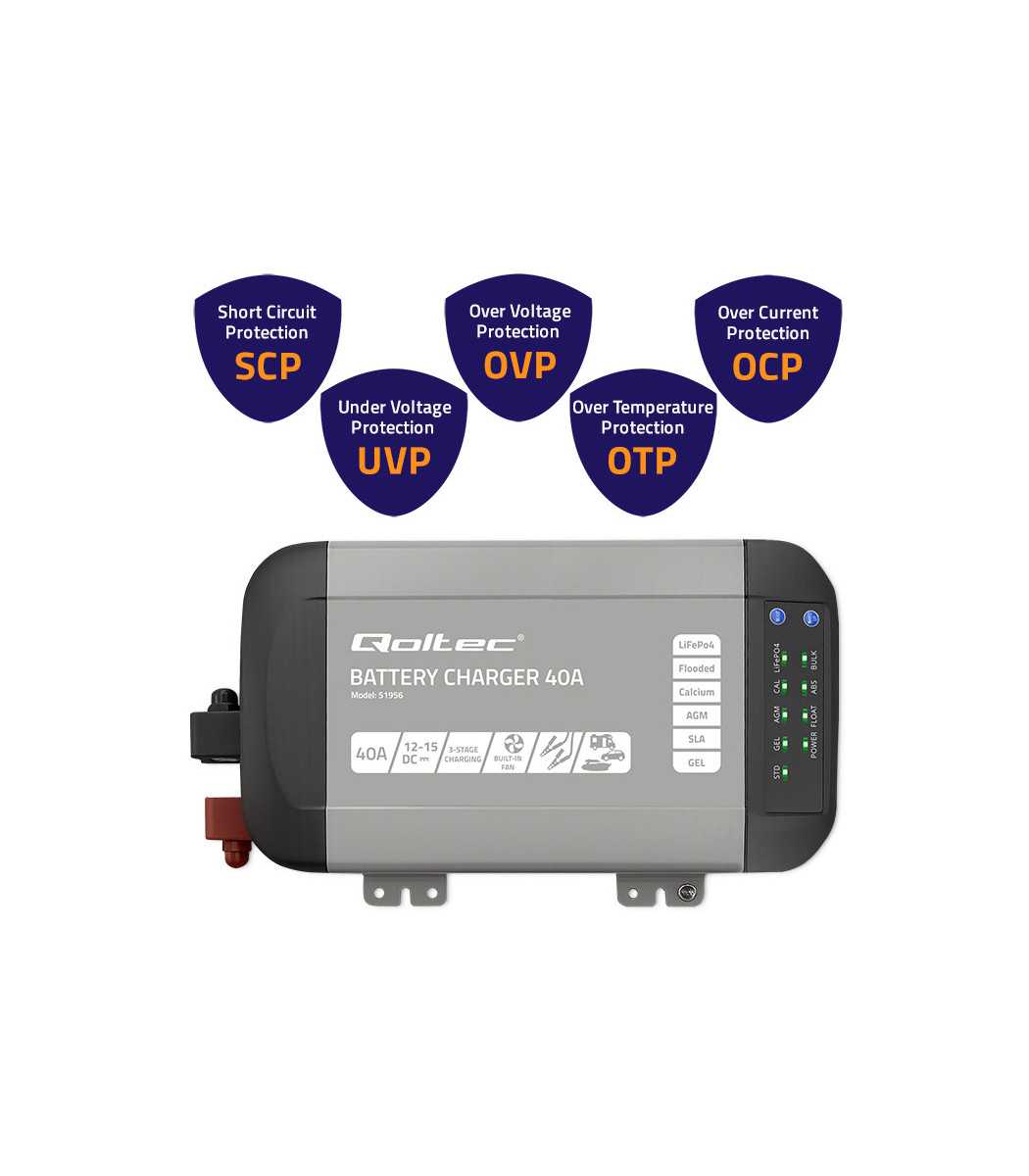

Security: Short circuit protection Overheat protection Over current protection Low voltage protection Over voltage protection Reverse polarity protection
Battery overcharge protection: Yes

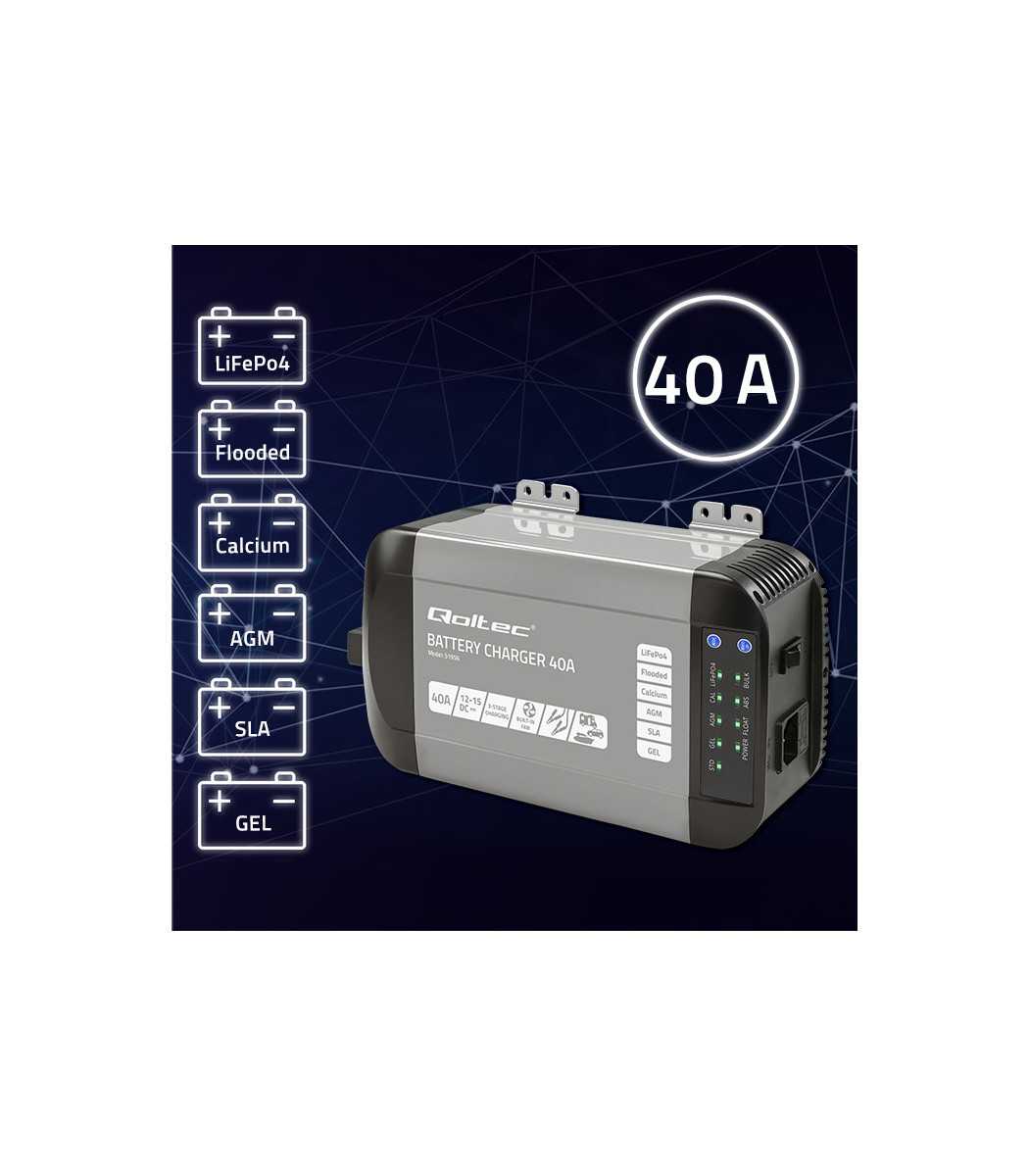

Application: LiFePO4 AGM GEL SLA EFB Calcium
Power cord length: ~0.90m
qoltec
LiFePO4 CHARGE 40A
