Monolith charger for LiFePO4, AGM, GEL, SLA batteries | 50A | 12V

Reference: LiFePO4 CHARGE 50A
€200.00

Tax included


The BULK stage is the identification of the battery and its needs, charging up to 80% of the battery capacity, with a maximum current kept constant and a high voltage,
The BOOST The BOOST stage is the so-called absorption charging, it keeps the charging voltage constant between 14.1VDC and 14.8VDC, reducing the charging current,
The FLOAT stage is the last charging cycle, a so-called sustained charge in which the battery has already reached 95% of its capacity and gradually reaches 100%, there is a reduction in the charging voltage to a constant value between 13.0VDC and 13.8VDC, the charging current automatically drops to 0A once the battery is charged.

The current charging stage of the battery is indicated by an LED on the charger.

Product in stock

mouse info more information about this product.
Dimensions (D/L x W x H) 222 x 290 x 75 mm
5 Connector Cables with eyelets
6 Color Gray, black
7 Output voltage 12-15DC
8 Net weight [kg] 2.890
9 Guarantee 24 months
10 Input voltage 180 - 260V
11 Certificate CE
12 Charging type 3-stage charging mode
13 Material Plastic, metal
14 Efficiency 88%
15 Battery overcharge protection Yes
16 Load regulation 1.5% for output current; from no load to full load 0-40 ̊C
17 Operating temperature 0 ̊C ~ +40 ̊C
18 Packaging Box
19 Power cord length ~0.90m
20 Comments Charger designed for 12V batteries only. Make sure the cables are properly matched to the batteries. Before removing the battery, first turn off all receivers and then disconnect it from the circuit. Only use rechargeable batteries. Never attempt to charge a frozen or damaged battery!
21 Additional information The device has been CE tested and confirms compliance with applicable directives and standards.
22 Output current Max 50A
23 Cooling 2 x Thermally Controlled Fan

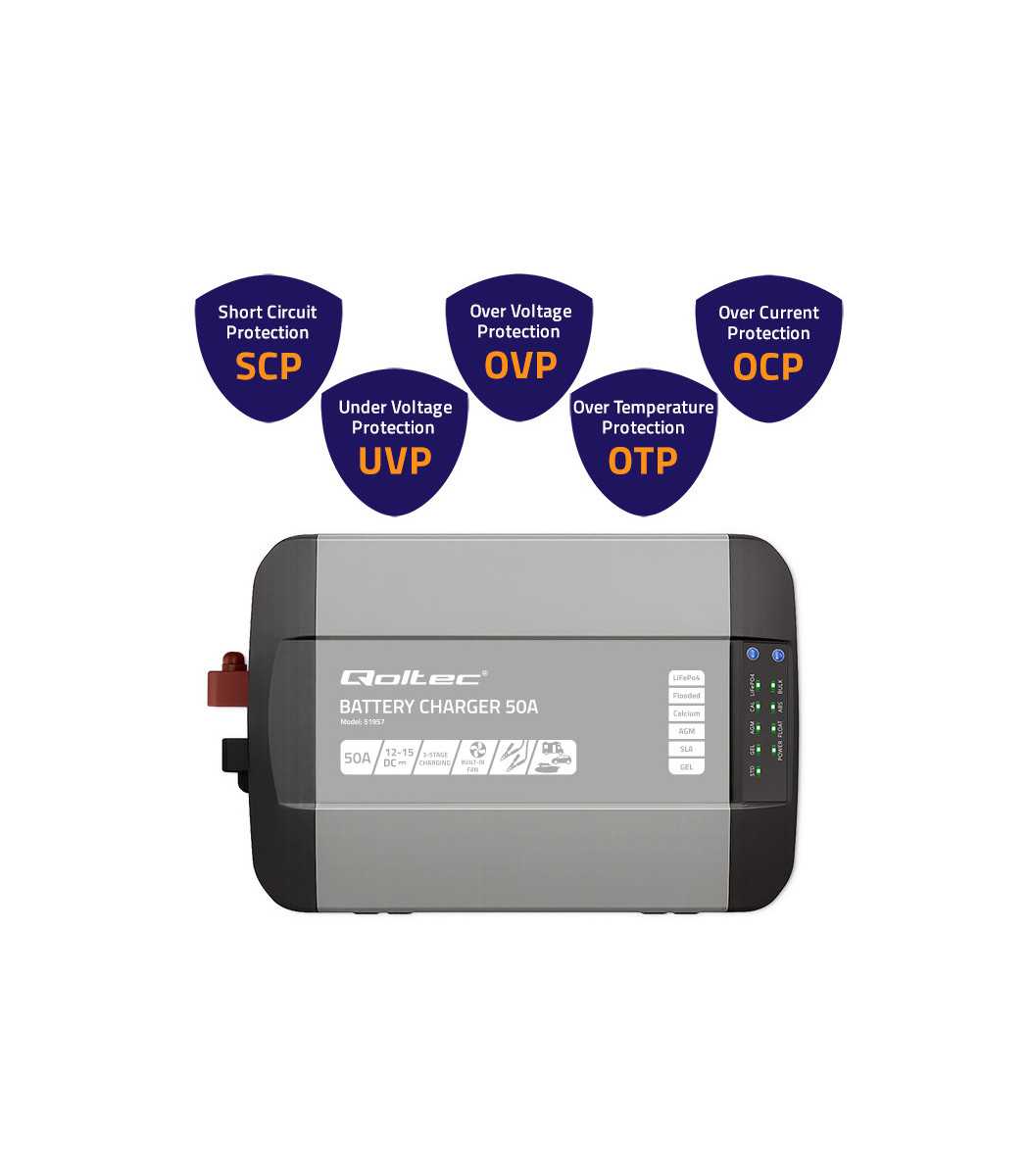

24 Security Short Circuit Protection Overheat Protection Over current protection Low voltage protection Over protection Reverse polarity protection
25 Application LiFePO4 AGM GEL SLA EFB Calcium

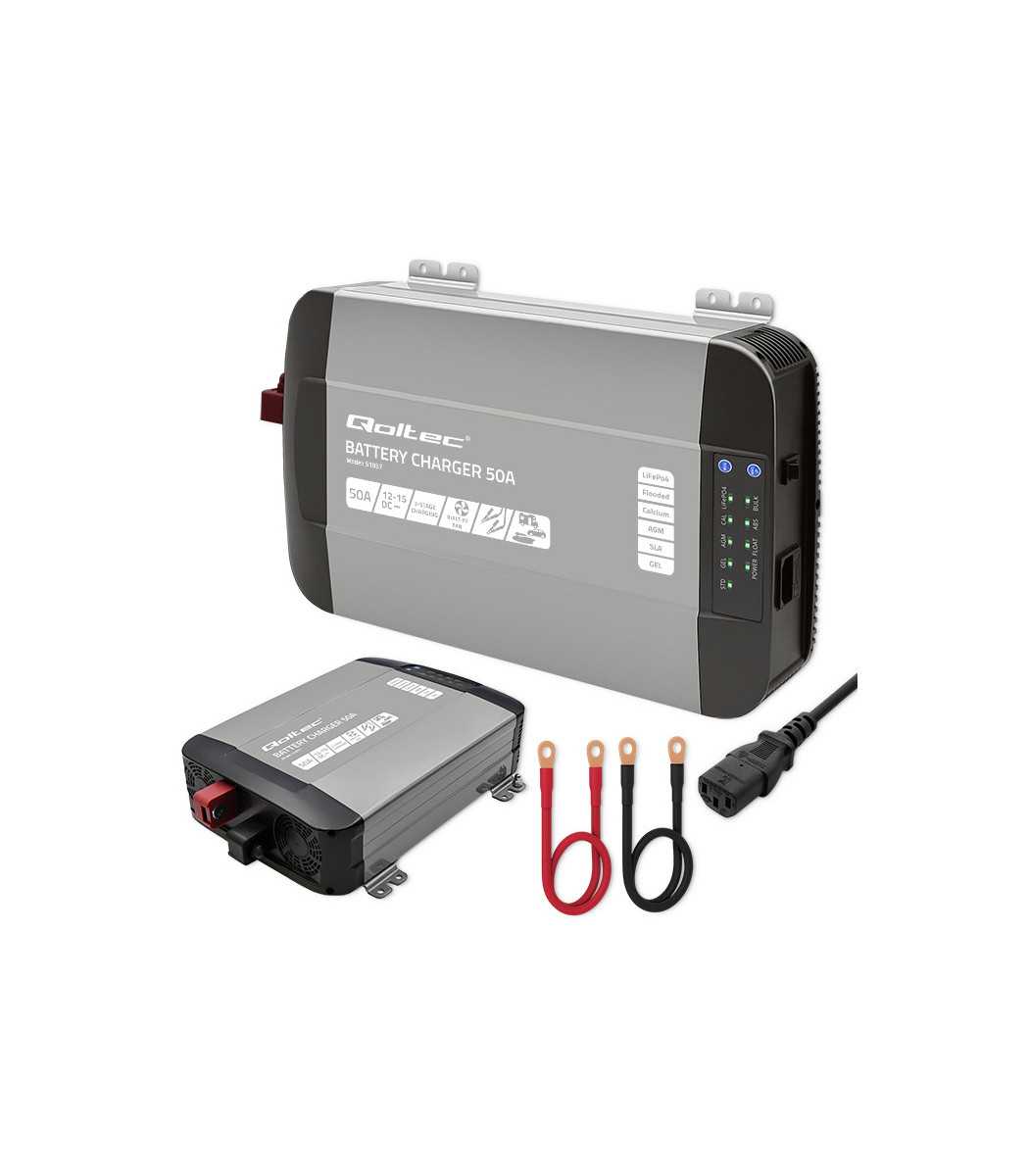

26 Package contents 1 x Battery Charger 1 x Power Cable 1 x Eyelet Cable Set 1 x User Manual
27 Gross weight [kg] 3.100
qoltec
LiFePO4 CHARGE 50A
