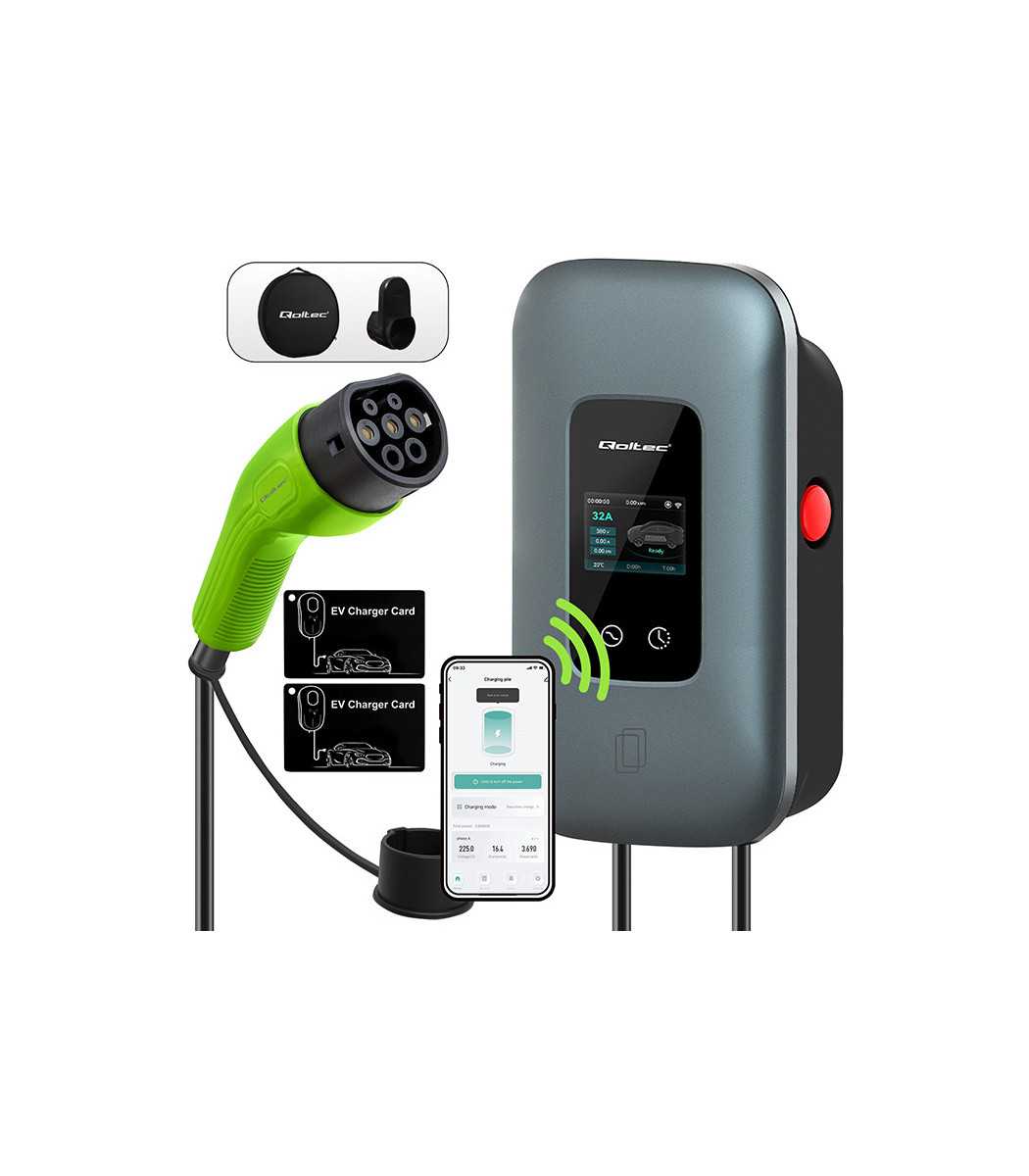

charging station Type2 electric and hybrids | 3 phases | 22kW | 32A | Wi-fi | LCD | RFID | Smart life | TUYA | Wallbox | 5m

Reference: 52723 qoltec
€429.00
Tax included

Do not allow the low level of charge of your battery to prevent you from using an electric vehicle.

With the help of a 3 phase Qoltec charging station, you can charge your car's battery 10 times faster.

Thanks to the 32A intensity for the phase, charging is fast and efficient.

The device offers options for mounting on the wall or on a free-standing post,

thanks to which it will be perfect both in the home garage and in commercial parking lots.

Solid connection with installation

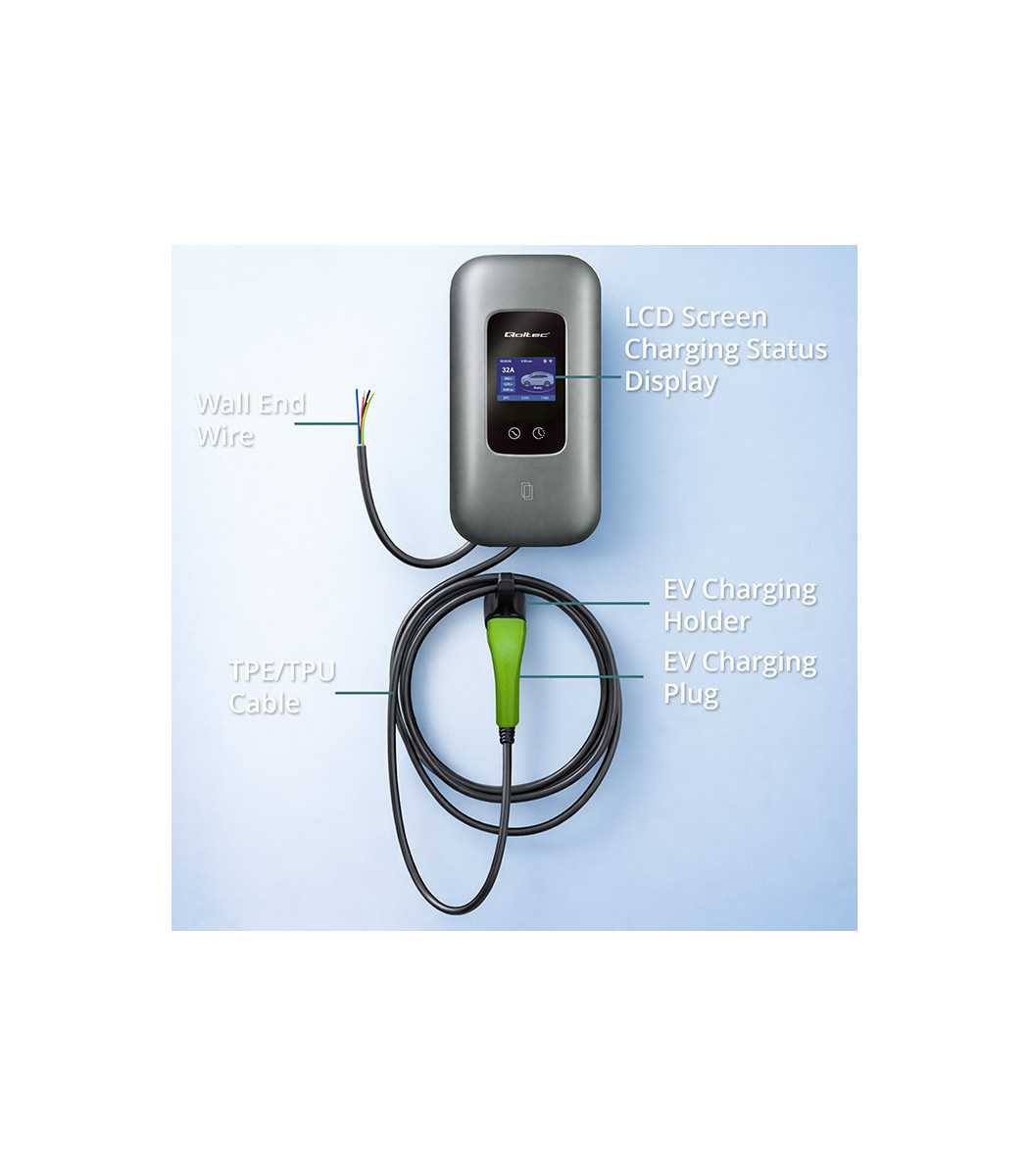

The charging station is equipped with a “Wall End Wire” supply cable, designed for direct connection to the electrical installation.

Exposed wires allow permanent installation by an electrician, in accordance with the requirements of single-phase or three-phase installation.

Thanks to this solution, the charger is permanently integrated into the installation, which increases the reliability of operation.

Product in stock

mouse info more information about this product.
1 Wire diameter 16.8mm
2 Humidity 5%-95%HR
3 Depth / Length of the package [mm] 400
4 Packaging width [mm] 480
5 Package height [mm] 160

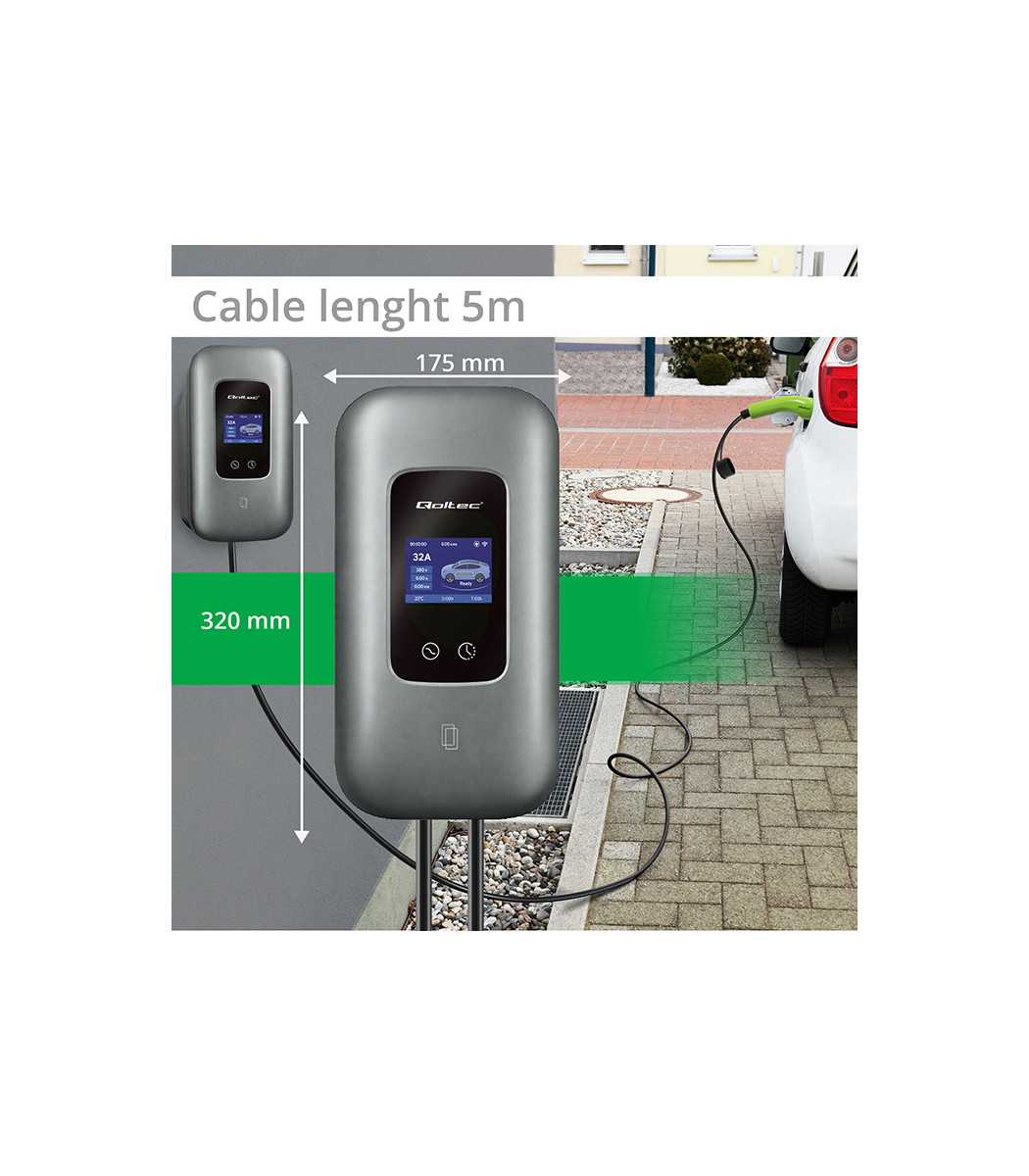

6 Dimensions (G/D x Sz x W) 75 x 175 x 320 mm (charge station), 210 x 70 x 60 mm (charger)
7 Color Black, green

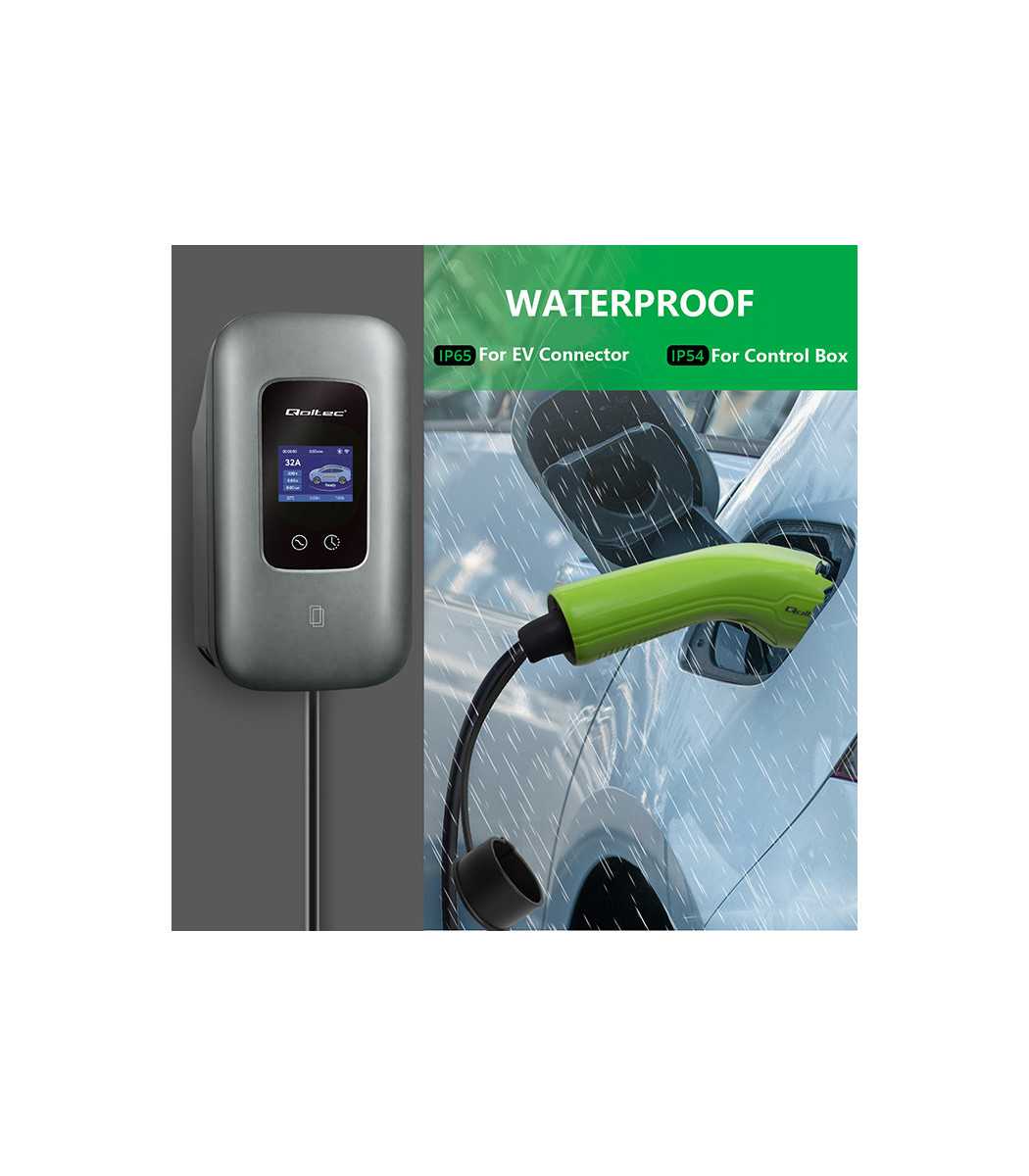

8 Degree of protection IP65
9 Cable Length 5m/ 0.50m charging cable “Wall End Wire”
10 Net weight [kg] 5,000
11 Warranty 24 months
12 Frequency 50Hz
13 Rated voltage 400VAC (L1+L2+L3+N+PE)
14 Certificate CE
15 Material PC + ABS
16 Type of plug 32A
17 Number of phases 3
18 Display LCD
19 Working temperature -25 ̊C ~ +45 ̊C
20 Insulation Material TPU/TPE
21 Packaging The box
22 Compatibility TYPE 2 compliant with most electric cars in Europe
23 Remarks You can use the charger only if the power network is equipped with a differential current circuit breaker Do not attempt to repair the device yourself Please do not use the device with an additional extension cord

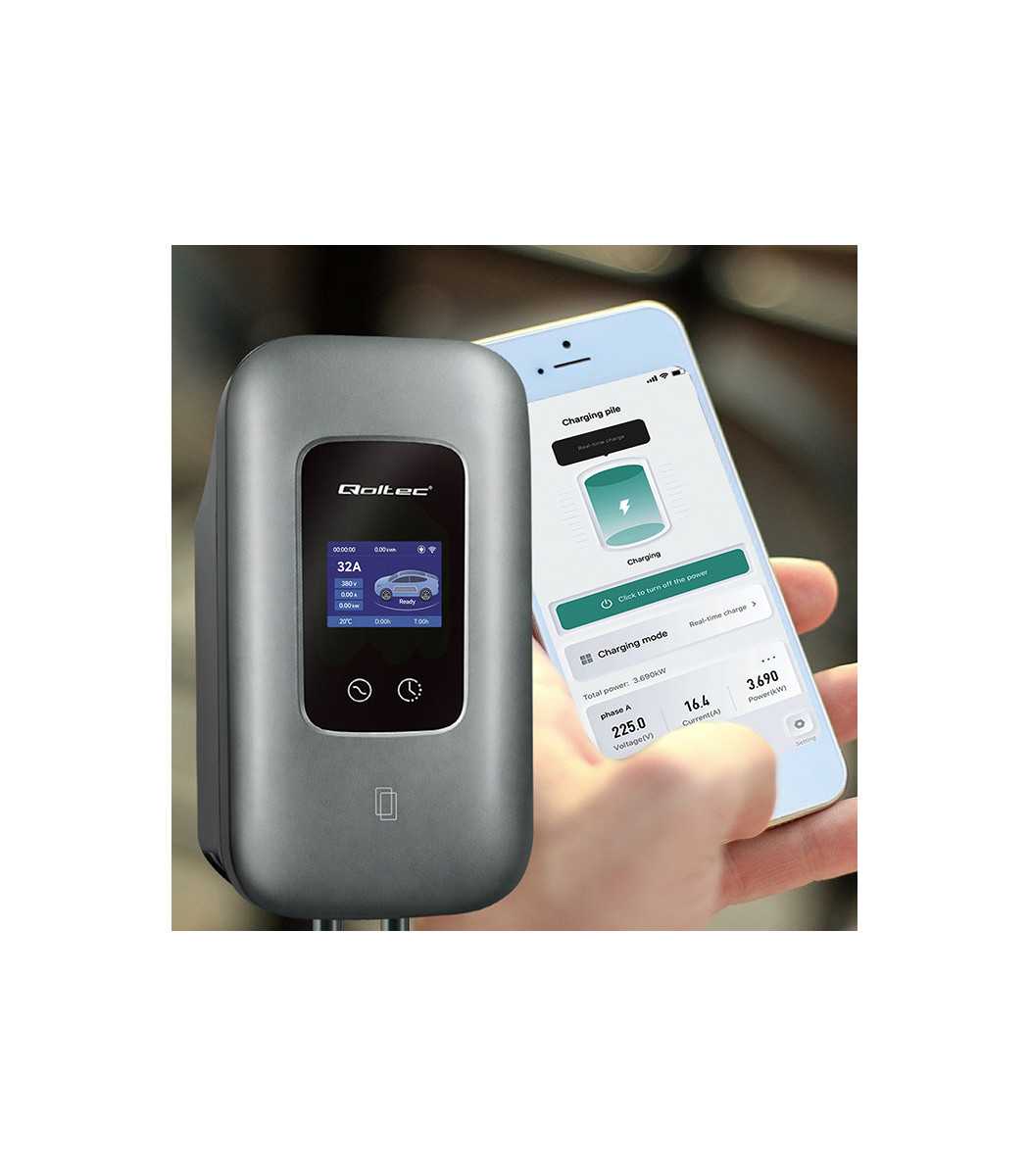

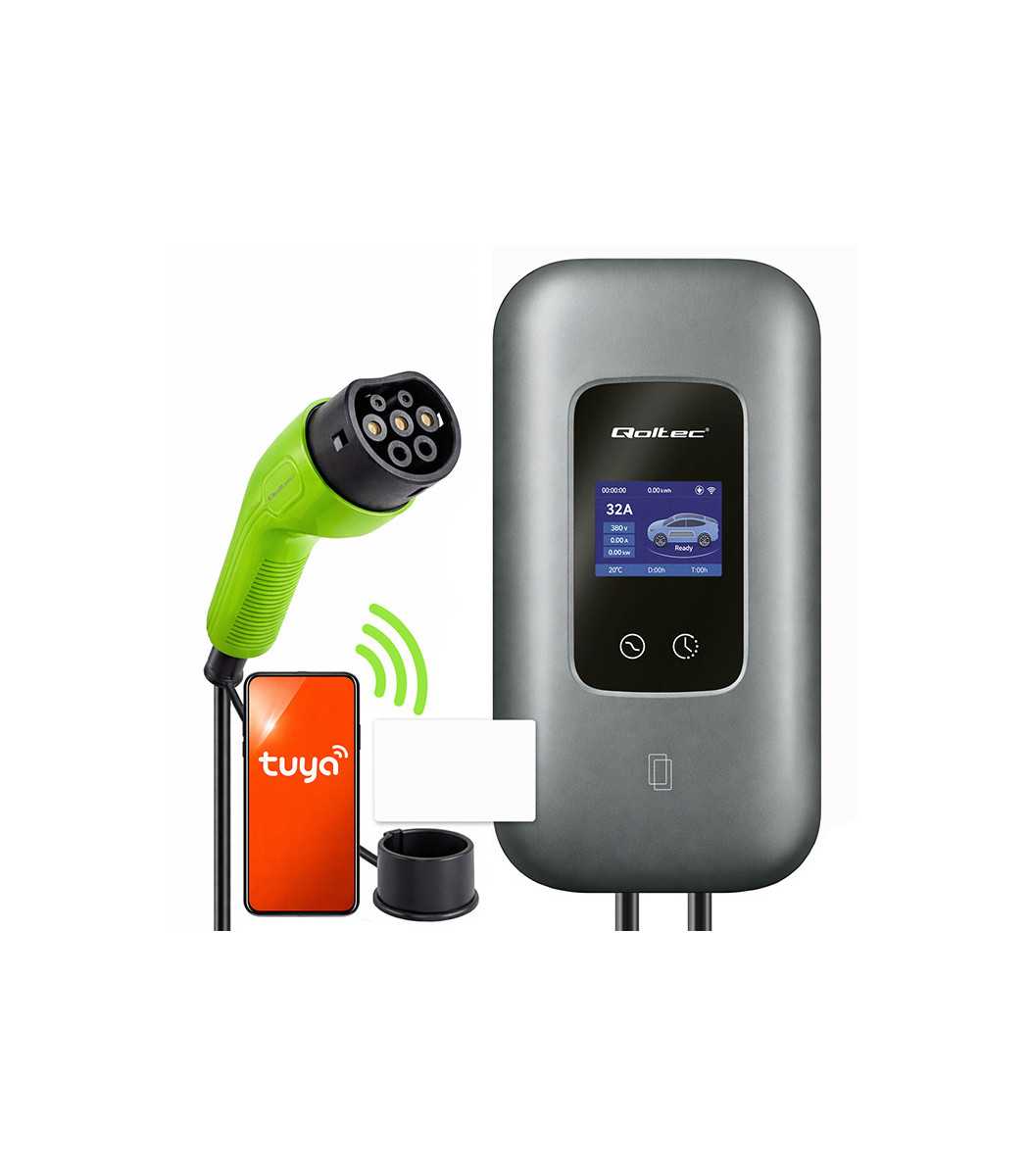

24 Additional information Dedicated Smart life application The EV charging current is adapted to the requirements of the on-board charger (OBC) in the electric car. In the Tuya application, it is possible to adjust the charging current in the range from 1A to 32A.

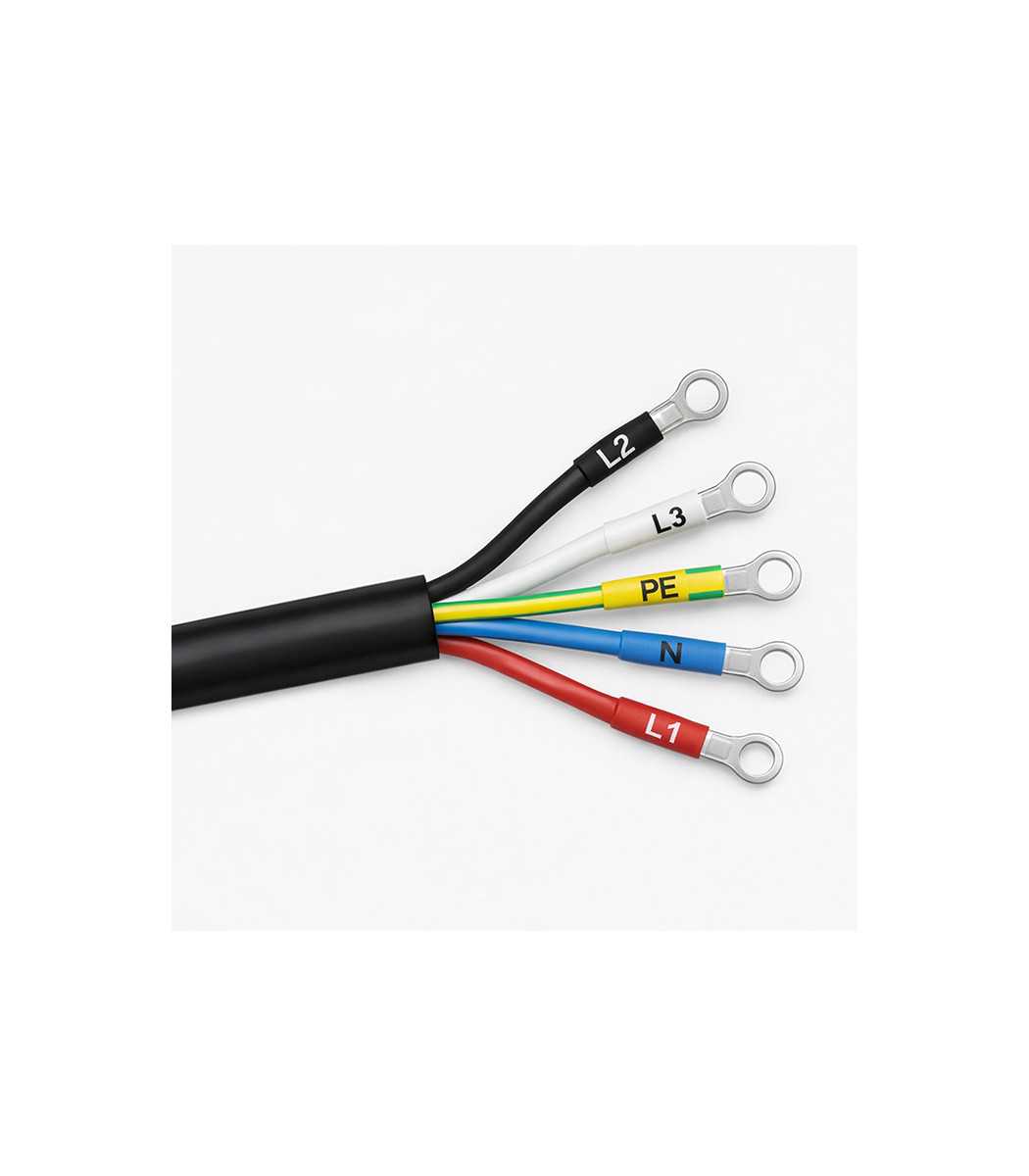

25 Cross-section of wire vein 5*6mm2 + 1*0.5mm2
26 Security Overvoltage protection Sub-volte protection Thermal overload protection Short circuit protection Protection against power output Grounding Temperature monitoring
27 Type 2
28 Working current 32A (max)
29 Contents of the package 1 x Charging station with Type 2 cable 1 x Gun holder 1 x Mounting screws 1 x Mounting plate 1 x User manual 2 x RFID Cards + Case
30 Gross weight [kg] 5,600
31 Manufacturer Qoltec
32 Maximum power 22KW
qoltec
52723 qoltec

Data sheet

POWER SUPPLY VOLT
WALL CHARGER
