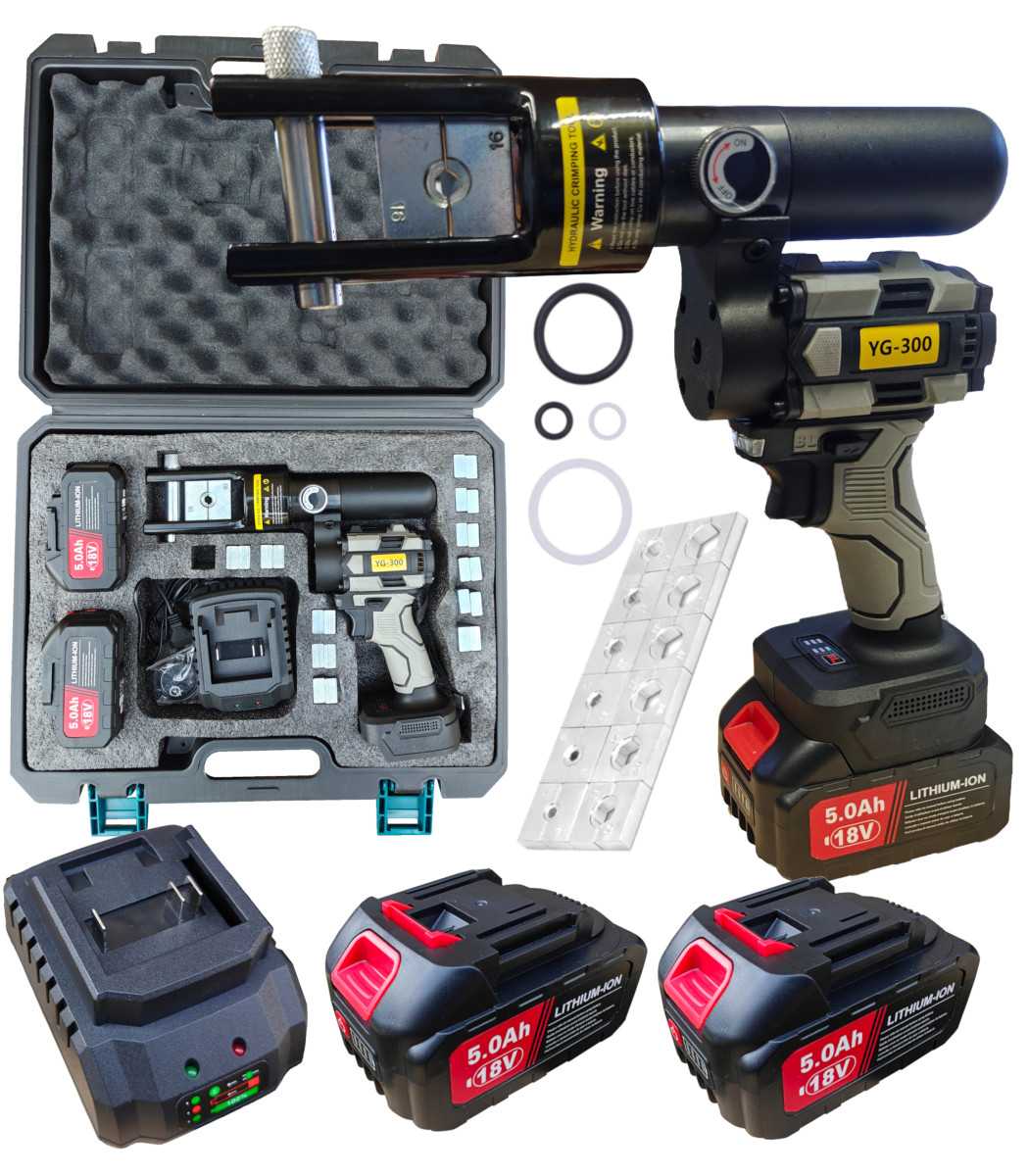

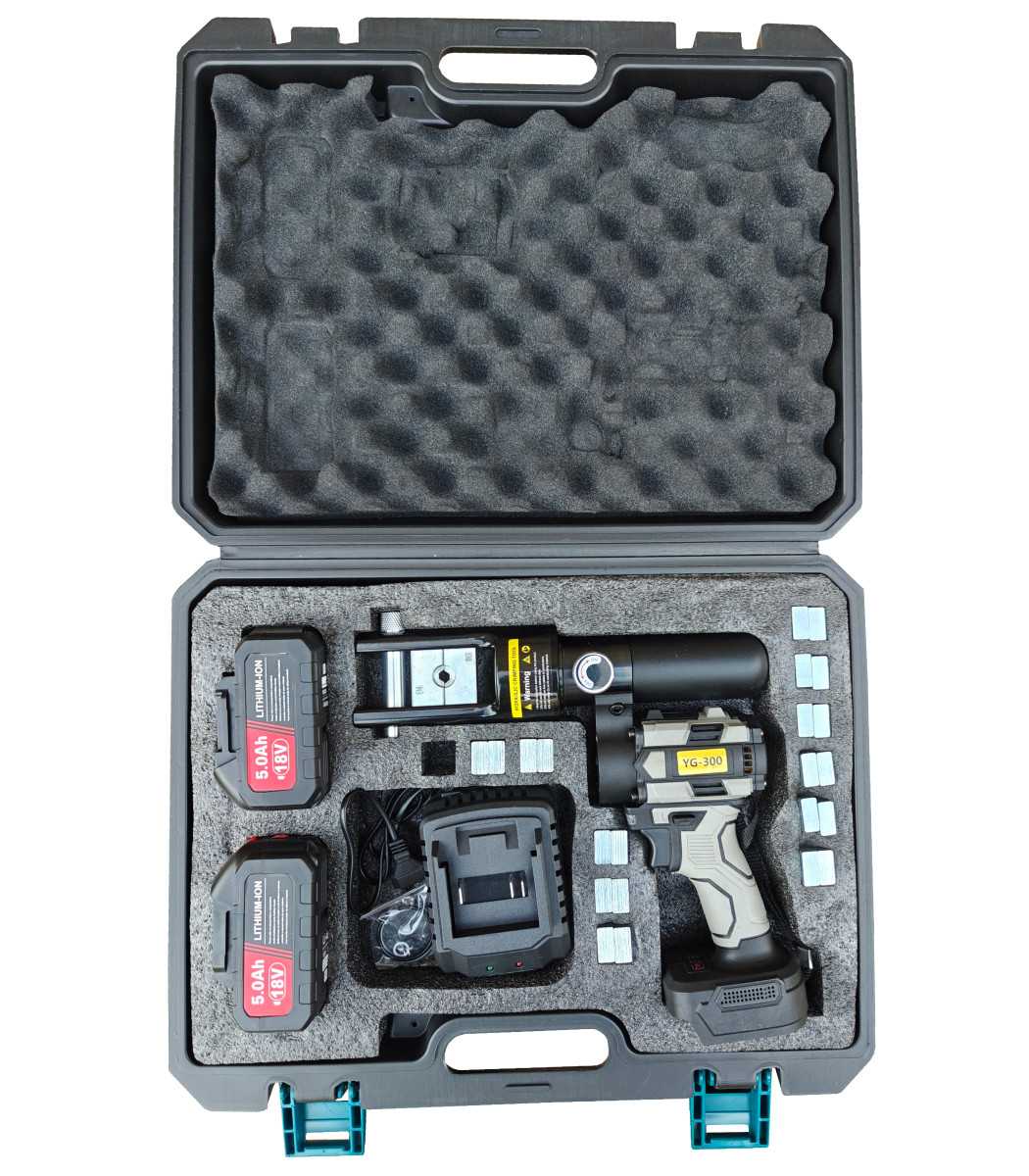

YG-300 cordless clamping machine connects 10-300

Brushless, portable, electric, hydraulic clamping pliers with rotating head

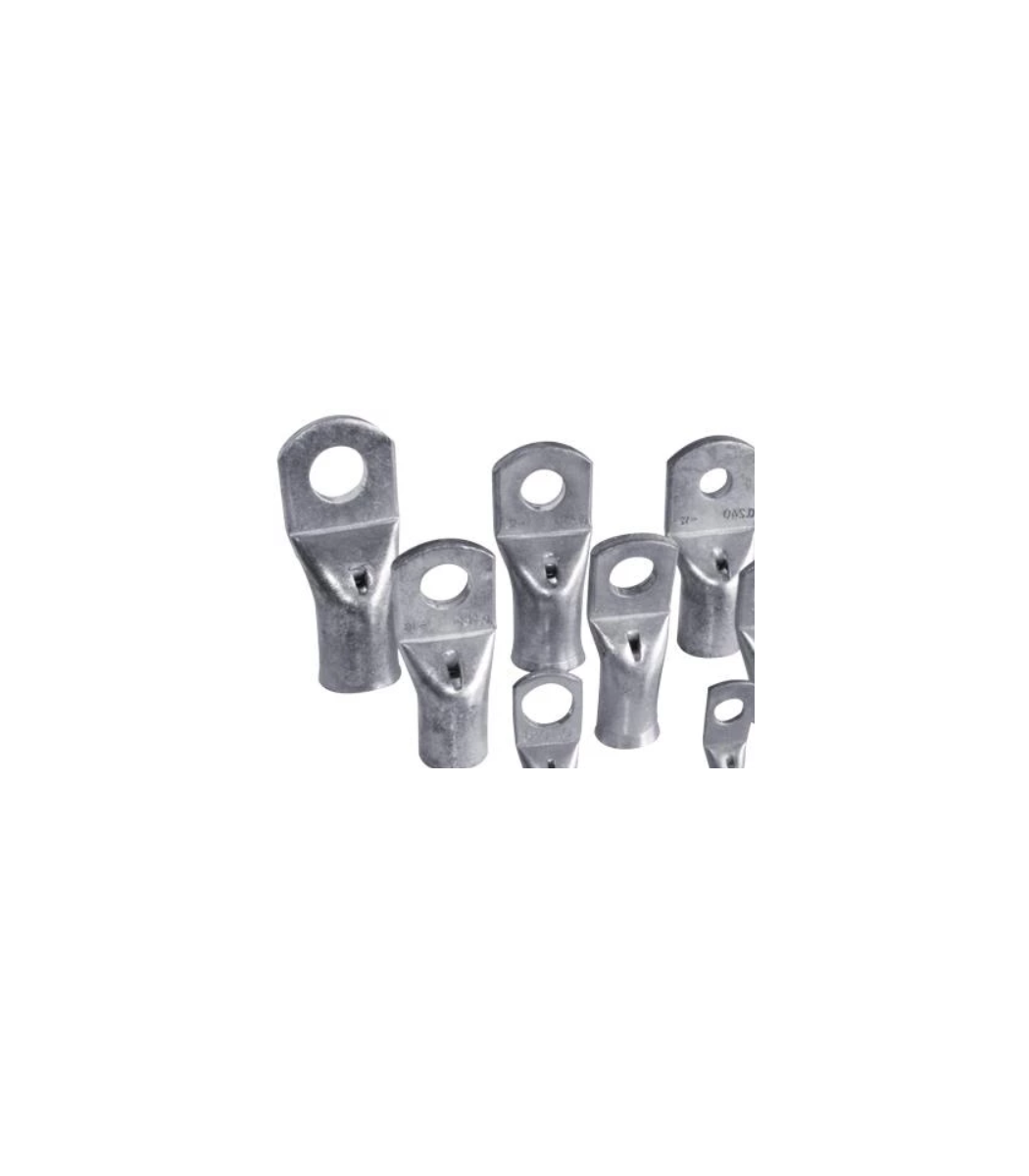

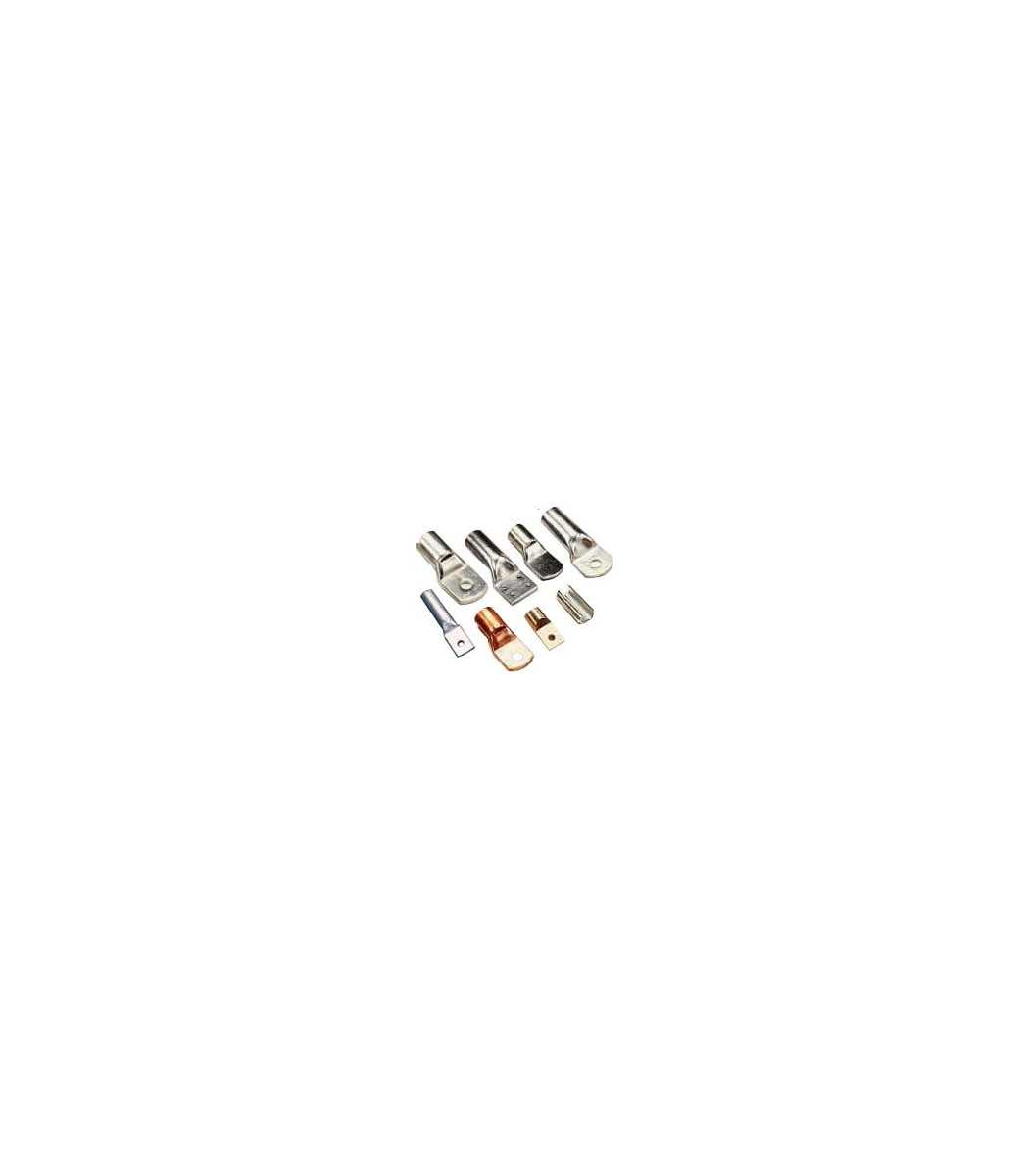

16-300 mm2 for copper and aluminum terminals and materials with rotating head clamping.

High efficiency: brushless electric motor provides continuous and strong power, helping to quickly perform crimping operations, thereby increasing work efficiency and reducing machining time.

High precision: The hydraulic system enables two-stage force control, guaranteeing precision and repeatability during use, which is ideal for applications requiring precise control of the pressure force.

Ease of operation: User-friendly design with easy-to-use buttons helps to reduce the workload and increase the operator’s efficiency.

Details Product:

Name Product: YG-300 EUROKOMP Electric Hydraulic Pliers

Strength pressure: 12 tons (80KN)

Battery: 5.0 Ah 18V. 10 lithium-ion cells (2 sets.)

Speed: 3000 cycles/minute

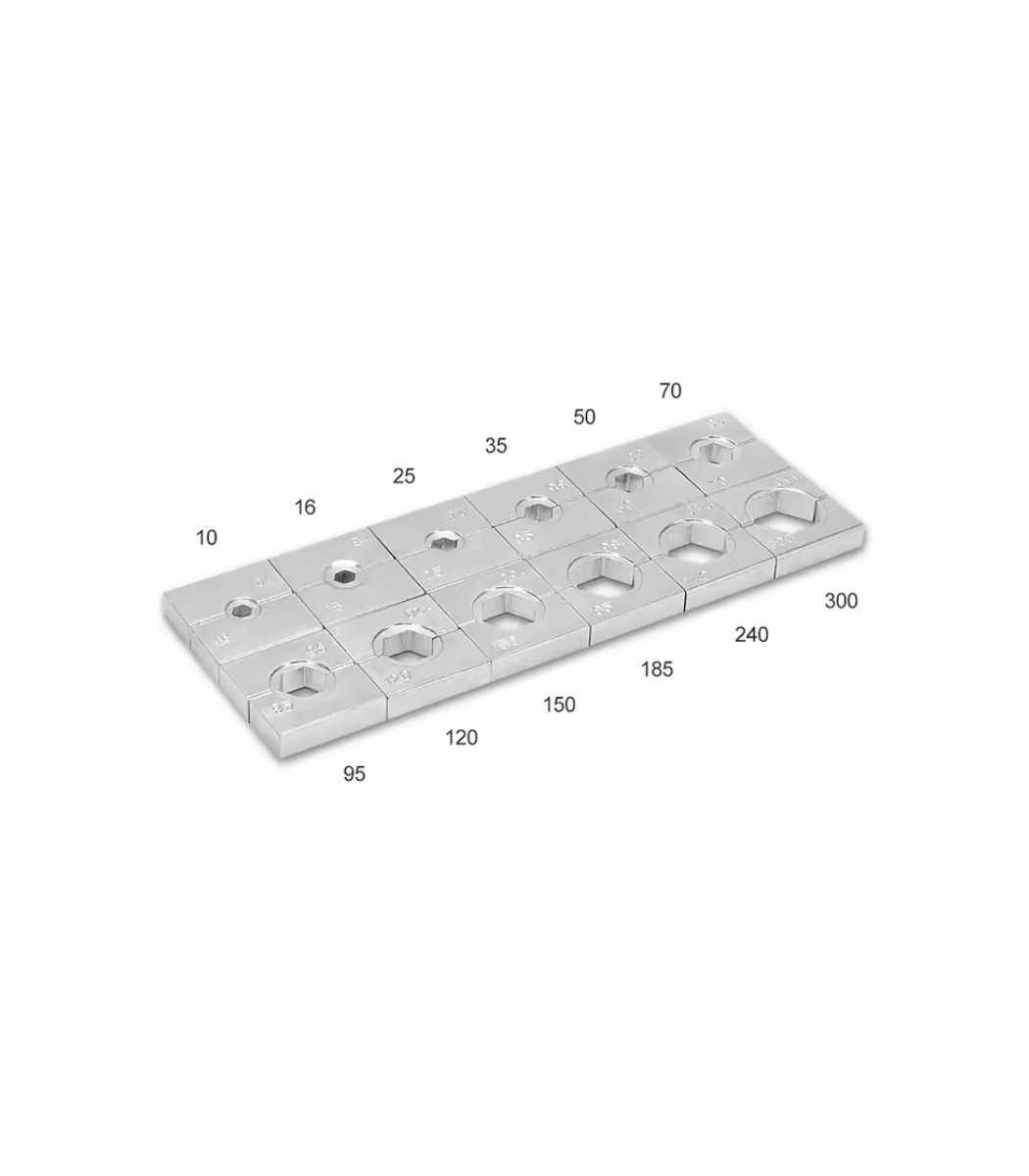

Matrix clamping: 16-25-35-50-70-95-120-150-185-240-300 mm2

Weight: 8.5 kg

Dimensions packaging: 46 x 12 x 36.5 cm

Charger to the batteries attached to the device.

The entrance 100-240V 5O-60Hz

Output: 21V DC 2A.

When the charger will detect an increase in battery temperature (especially when reaching around 80% charge), interrupts the charging process until the cells cool, after which automatically resumes charging. This system also works when we put it in hot batteries immediately after intensive operation. The charger will wait with Starting to charge until the battery reaches a safe temperature.

-Charger connected to the electrical network without a battery signals with a green color LEDs.

-Charger connected to the electrical network with a charging battery signals The red color of the diode. When the battery recharges, the color of the diode will change to green.
