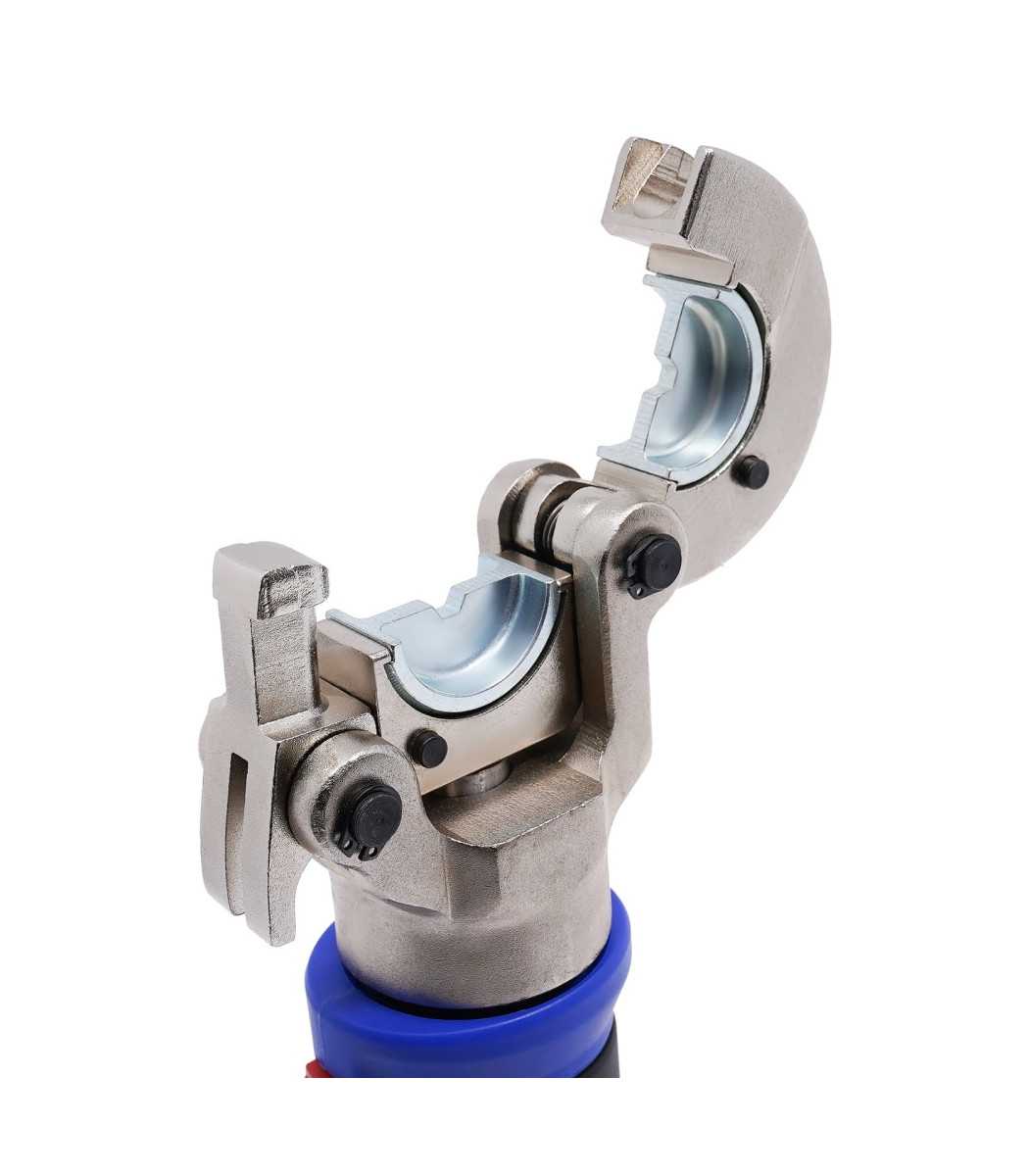

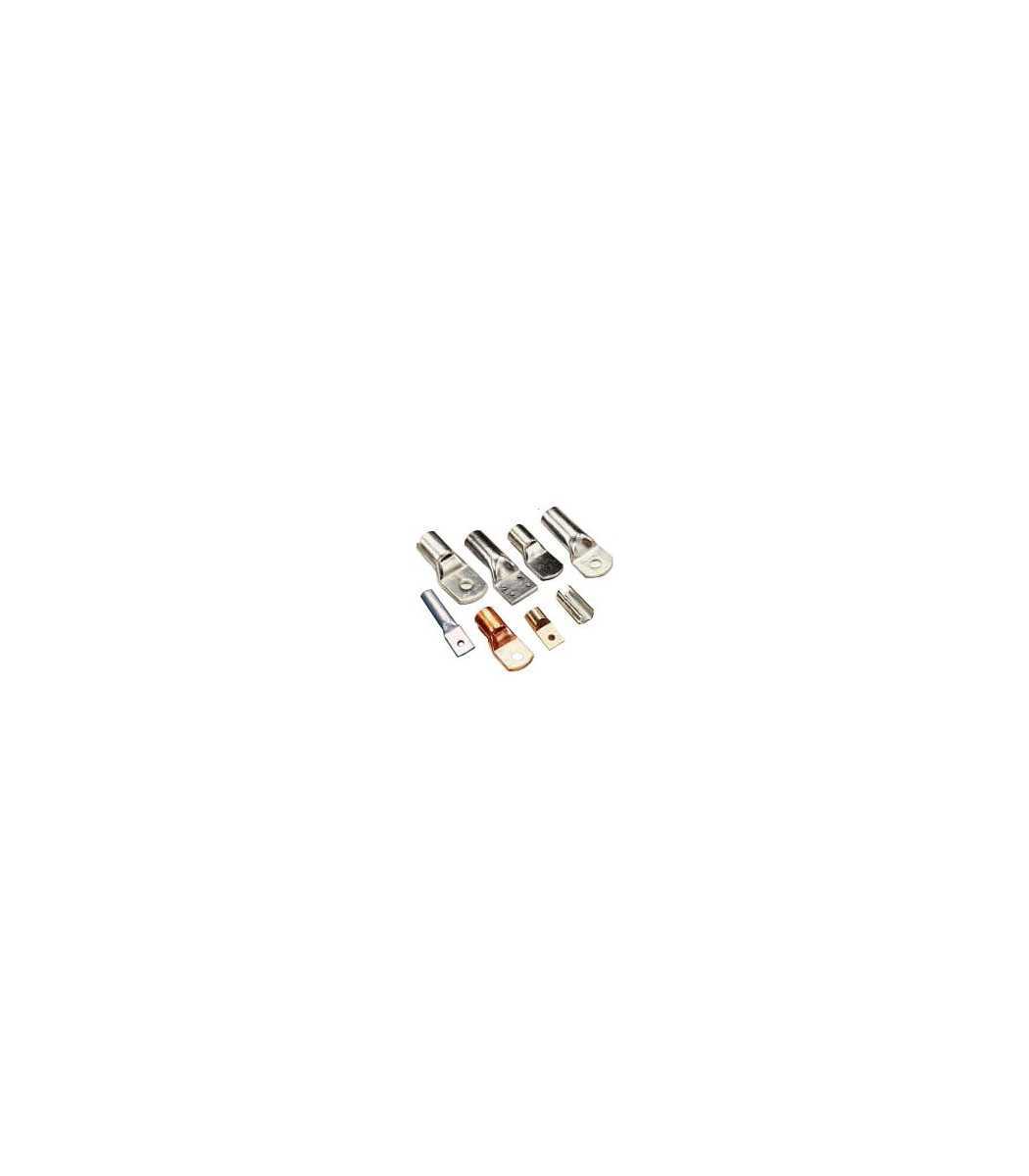

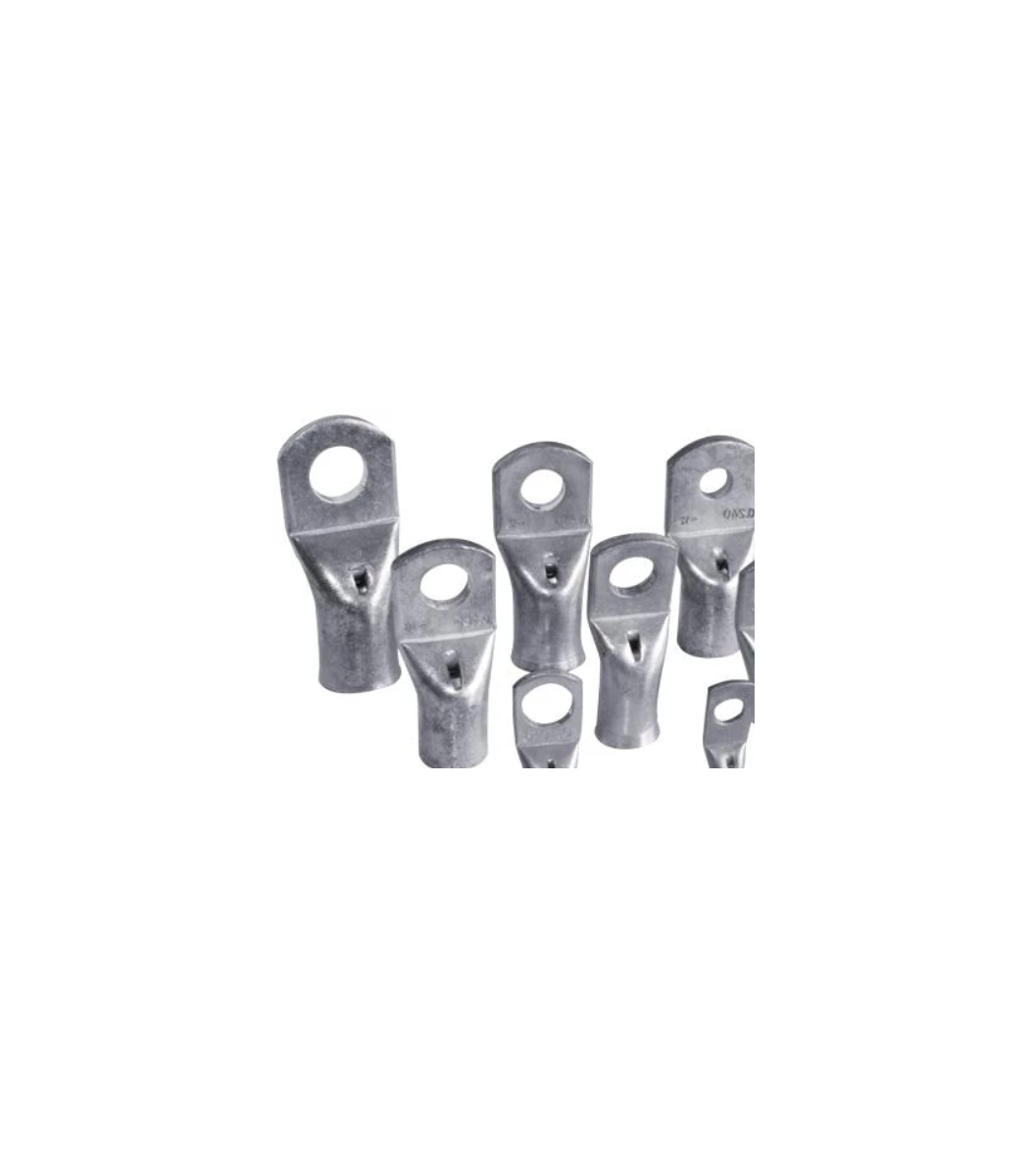

Professional press for copper and aluminium terminals and materials 16–300 mm2 with rotary clamp head. pressed. The clamping machine is characterized by high quality execution, repeatability of connections and reliability. Prague are equipped with rotating and openable head for easy and quick execution of clamps. The use of a hydraulic cylinder makes the clamping machine have compact dimensions and does not require the use of force by the operator.

Data Technical:

• Pressure: 60 kN
• Rotating head: yes
• Interchangeable matrices: yes

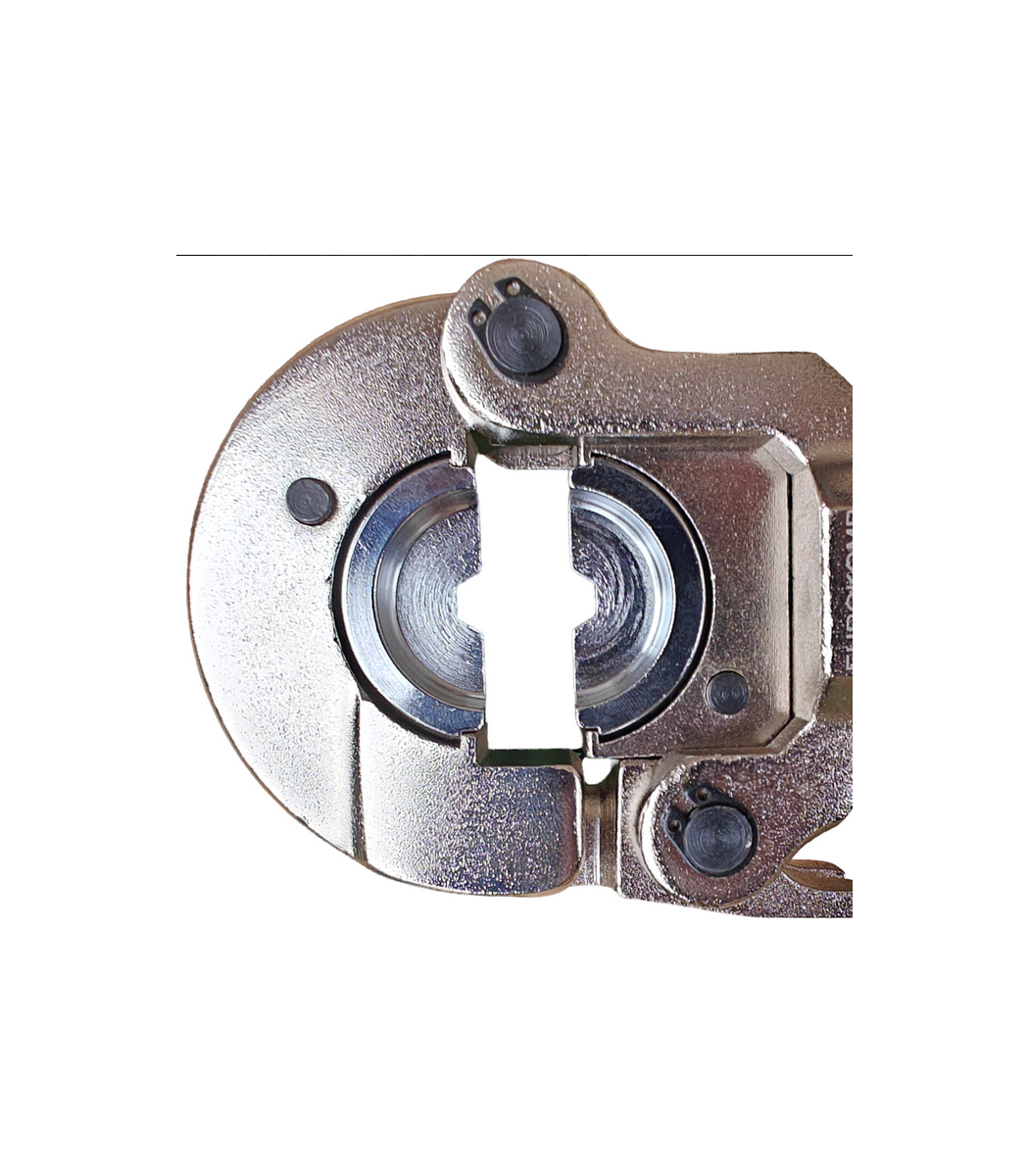

• Sizes of hexagonal dies in the set:

  10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm2

• Ergonomic dimensions: 44x12 cm
• IN ADDITION, IF THERE IS A NEED, WE HAVE IN ATTRACTIVE PRICES FOR SALE MATRIX V AND M
• Weight and dimensions: compact, suitable for field work

Main Features

• Comfort of work in all conditions
• Universal, multi-purpose equipment - thanks to interchangeable dies
• Intuitive operation
• Durable and reliable
• Solid construction

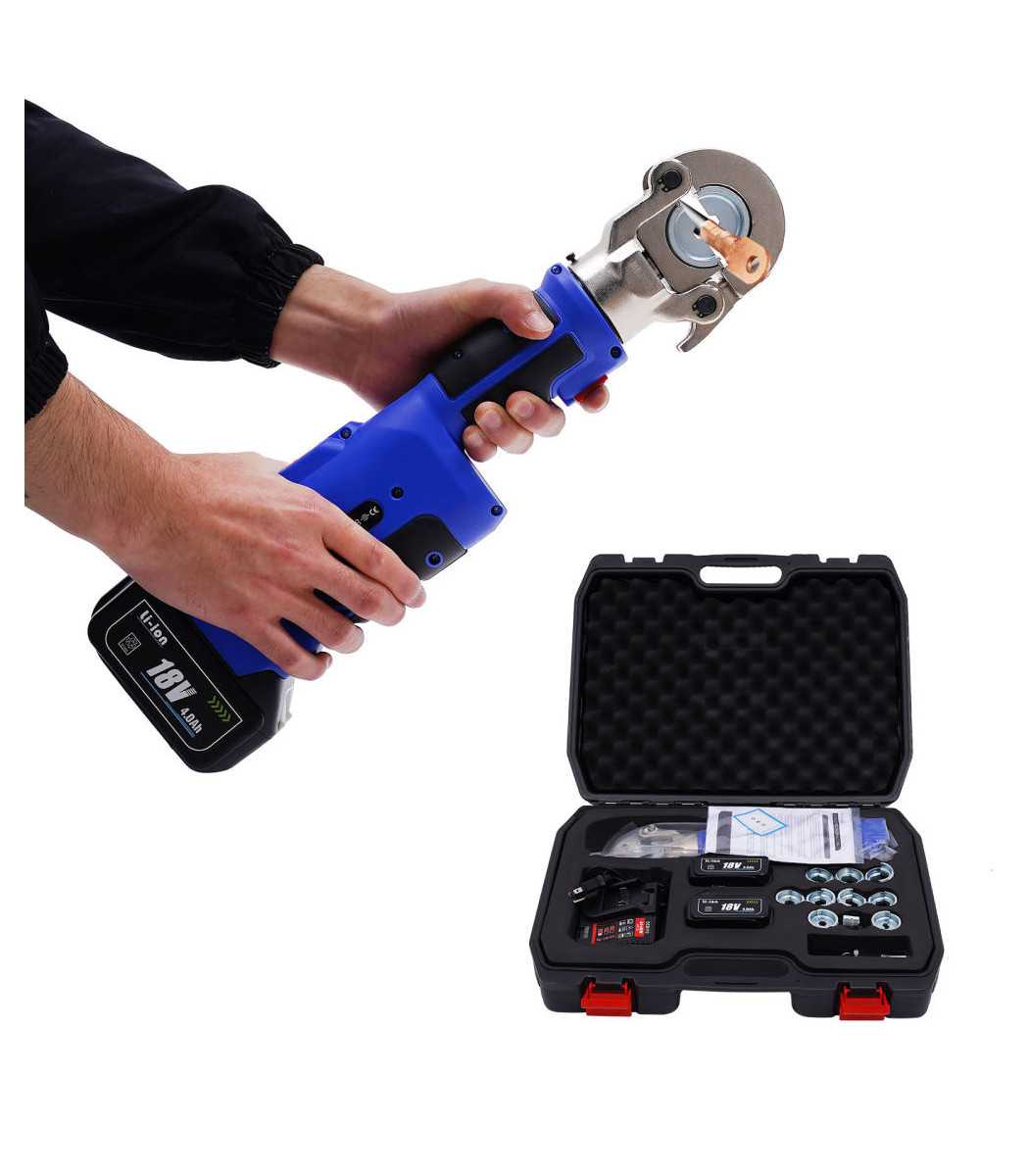

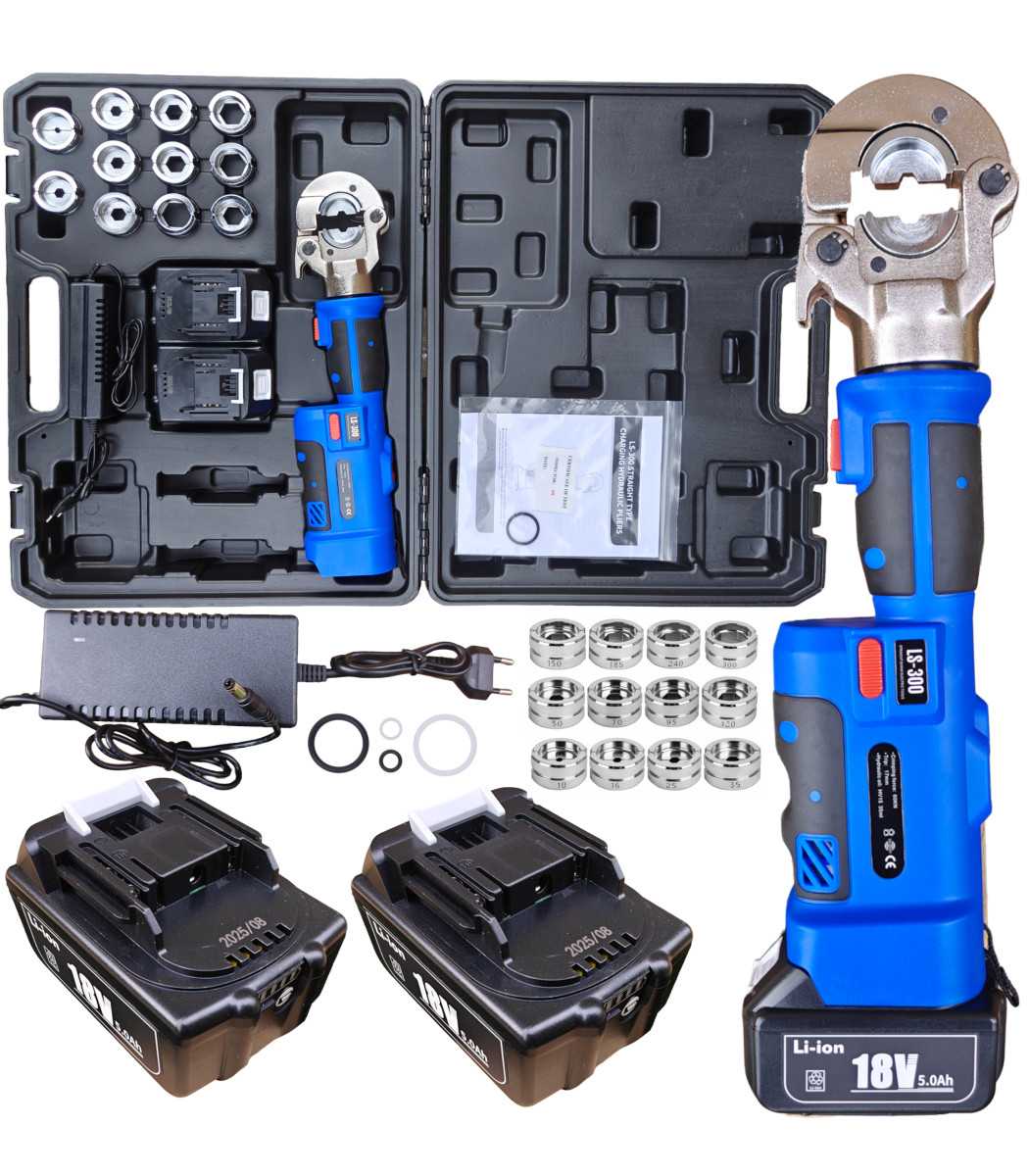

Set contains:

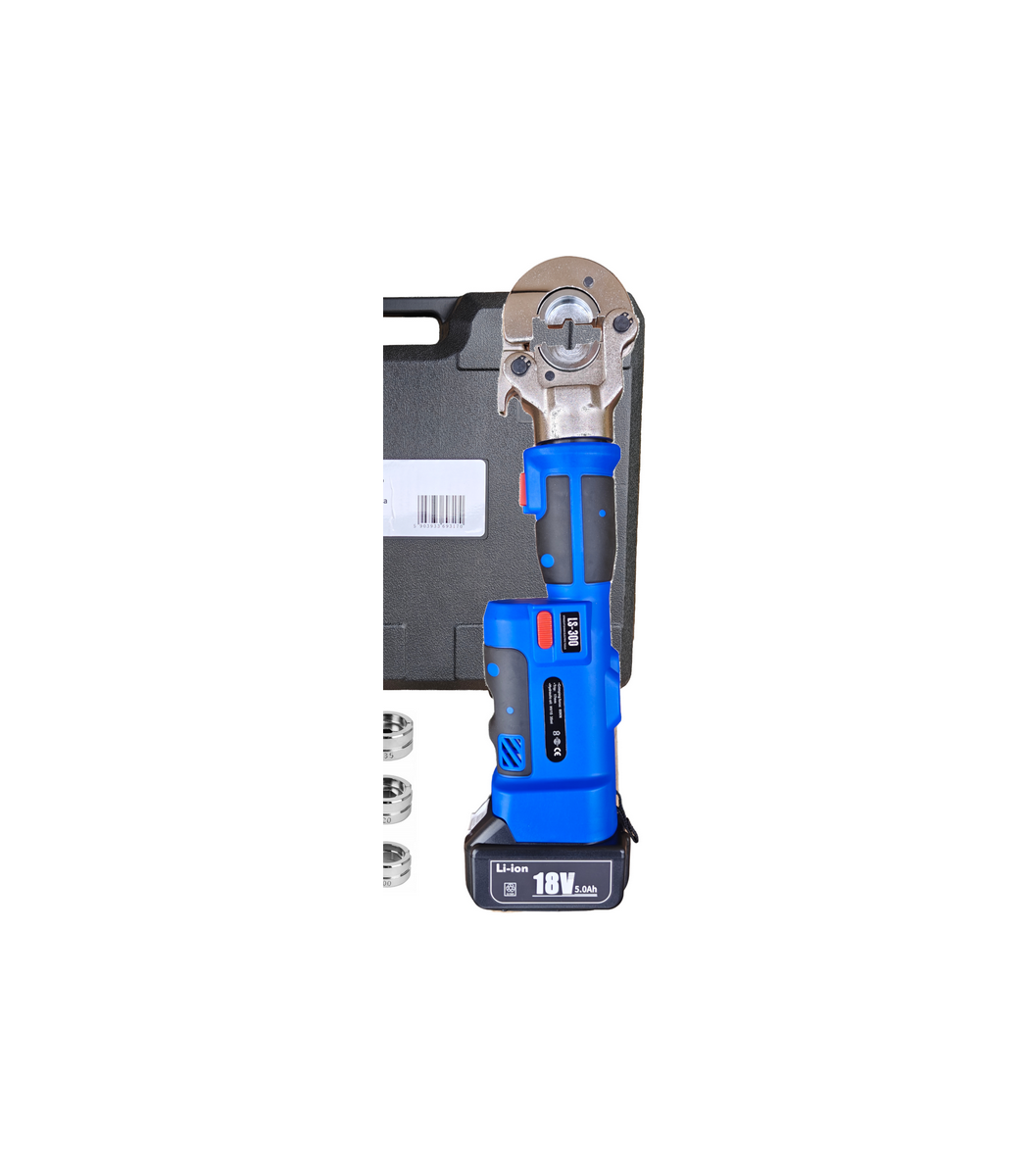

• Hydraulic clamping machine EUROKOMP model E6304
• Set of 12 dies (10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm2)
• Transport case
• 2 batteries 18V 5.0AH
• Charger with charging signalling for batteries
• Spare hydraulic seal

Battery: 5.0 Ah 18V. 10 lithium-ion cells (2 sets.)

Speed: 3000 cycles/minute

Matrix clamping: 16-25-35-50-70-95-120-150-185-240-300 mm2

Weight: 8.5 kg

Dimensions packaging: 46 x 12 x 36.5 cm

Charger to the batteries attached to the device.

The entrance 100-240V 5O-60Hz

Output: 21V DC 2A.

When the charger will detect an increase in battery temperature (especially when reaching around 80% charge), interrupts the charging process until the cells cool, after which automatically resumes charging. This system also works when we put it in hot batteries immediately after intensive operation. The charger will wait with Starting to charge until the battery reaches a safe temperature.

-Charger connected to the electrical network without a battery signals with a green color LEDs.

-Charger connected to the electrical network with a charging battery signals The red color of the diode. When the battery recharges, the color of the diode will change to green.
