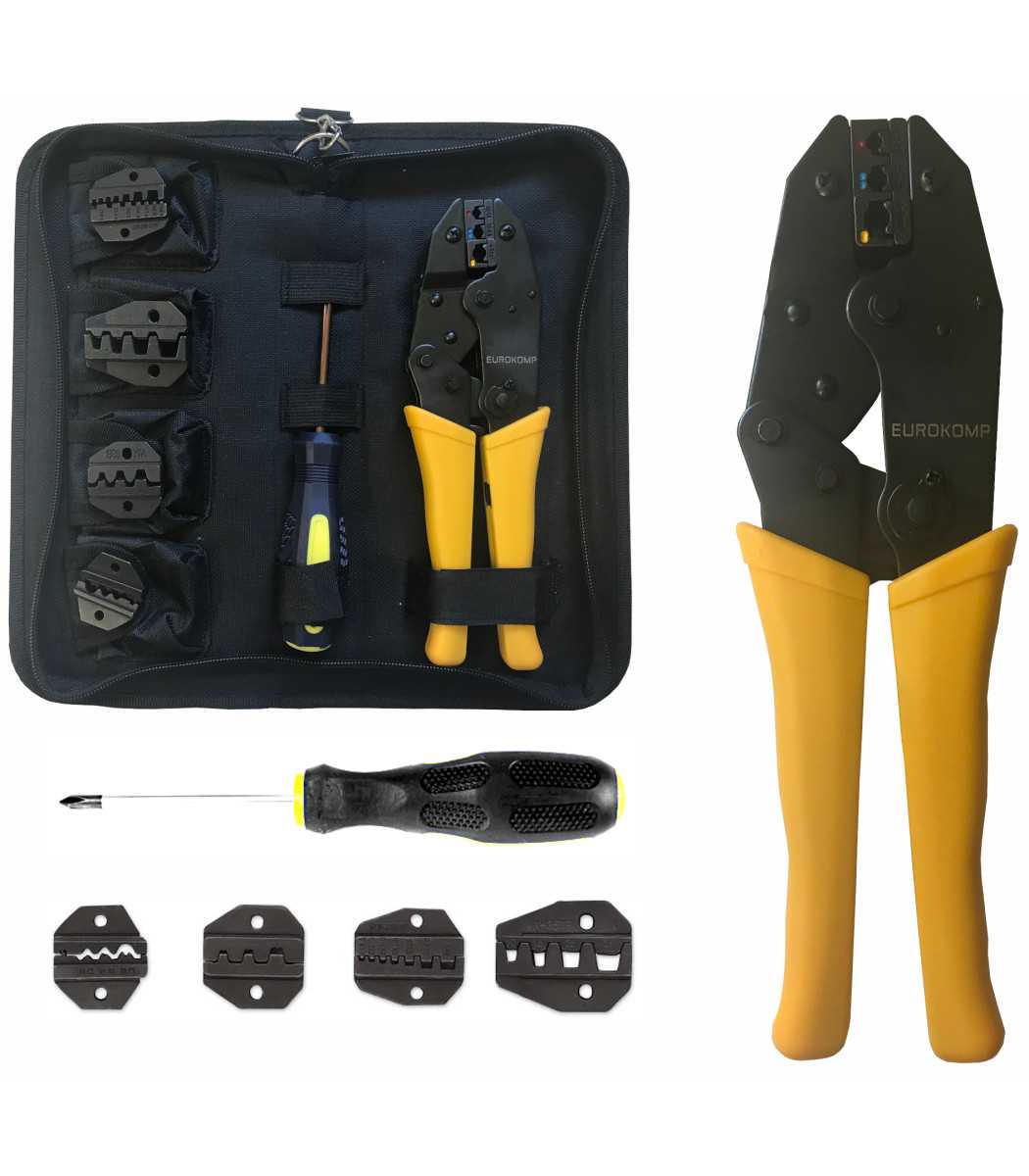

A set of clamping machine with interchangeable jaws

handy set is suitable as a tool for clamping of cable, connector and end connection terminals.

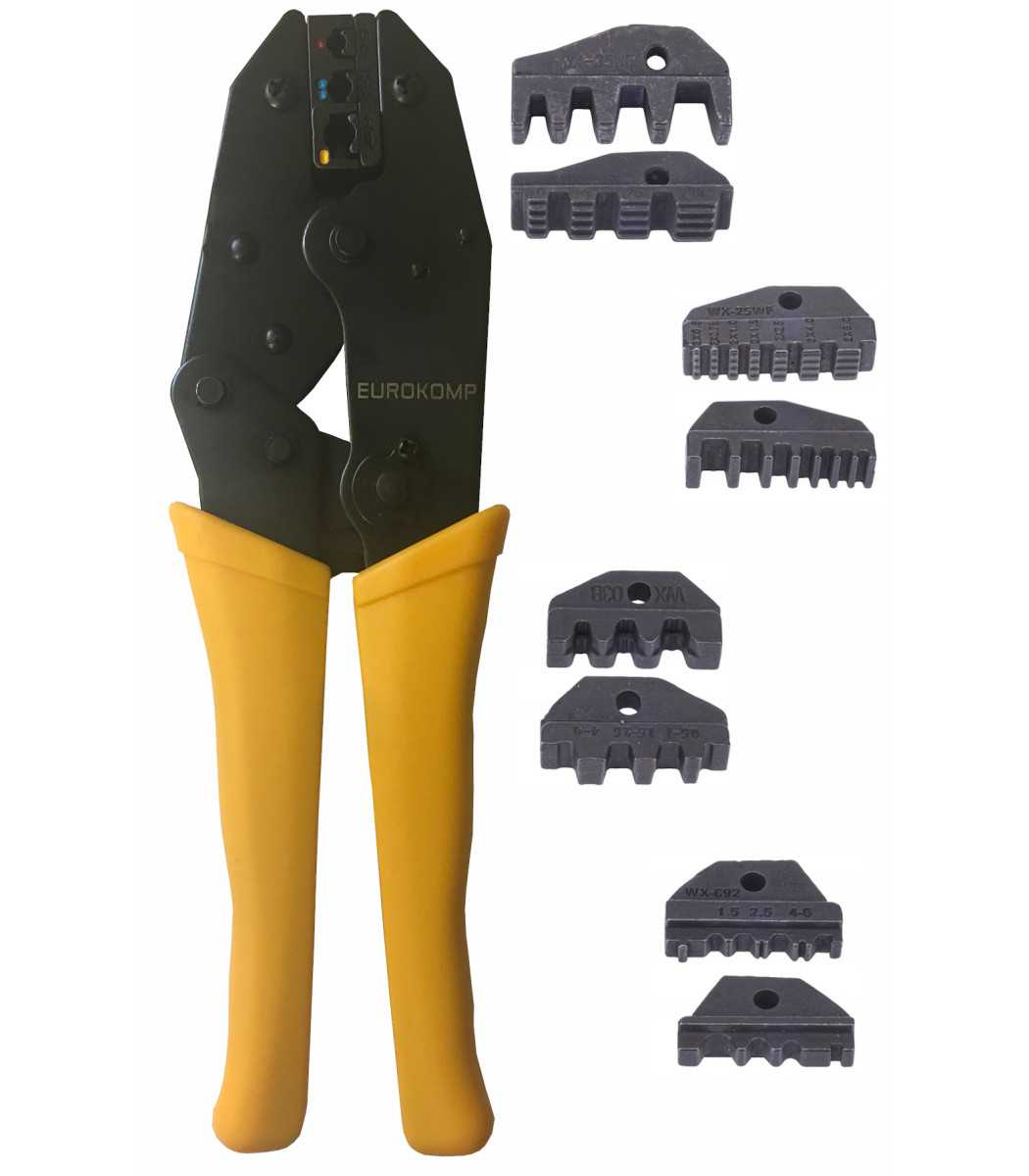

5 different jaws clamps thanks to the screwdriver included in the set can be in a short time exchange. The set is secured in a practical tool bag.

• Versatile application thanks to5 interchangeable Jaws.

• Clamping machine with the function of imechanics release Reversing the spring.

• Plastic clamping machine handles enable convenient operation.

• Cross screwdriver (Ø 6 mm).

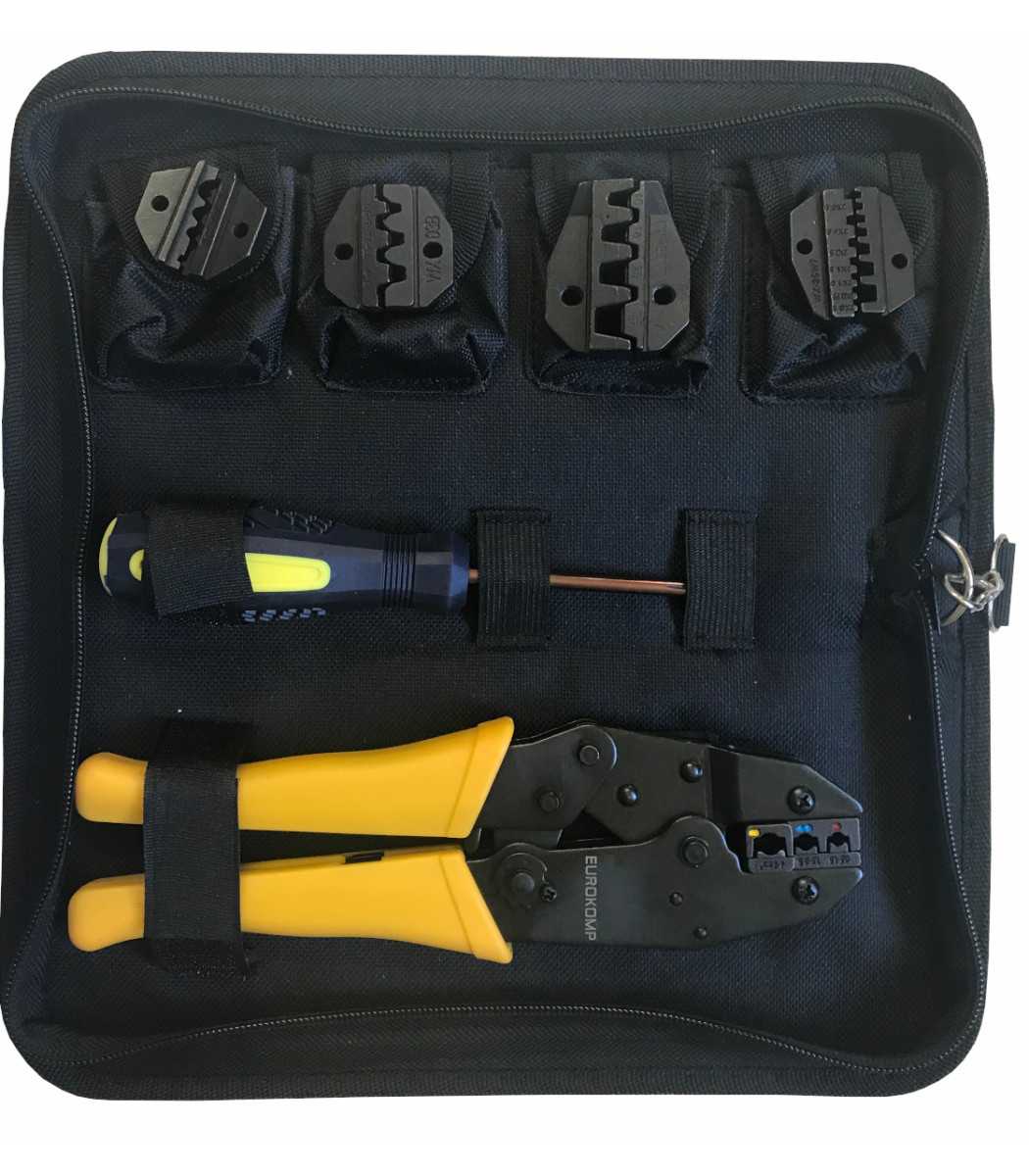

• Practical bag with internal pockets.

Technical data:

• Total dimensions of the bag (L xW x H) approx. 24 x 11 x 5 cm

• Dimensions of tongs (L x W xH) approx. 22 x 6.5 x 2.5 cm

• Material: steel and polyester

• Weight: approx. 1.1 kg

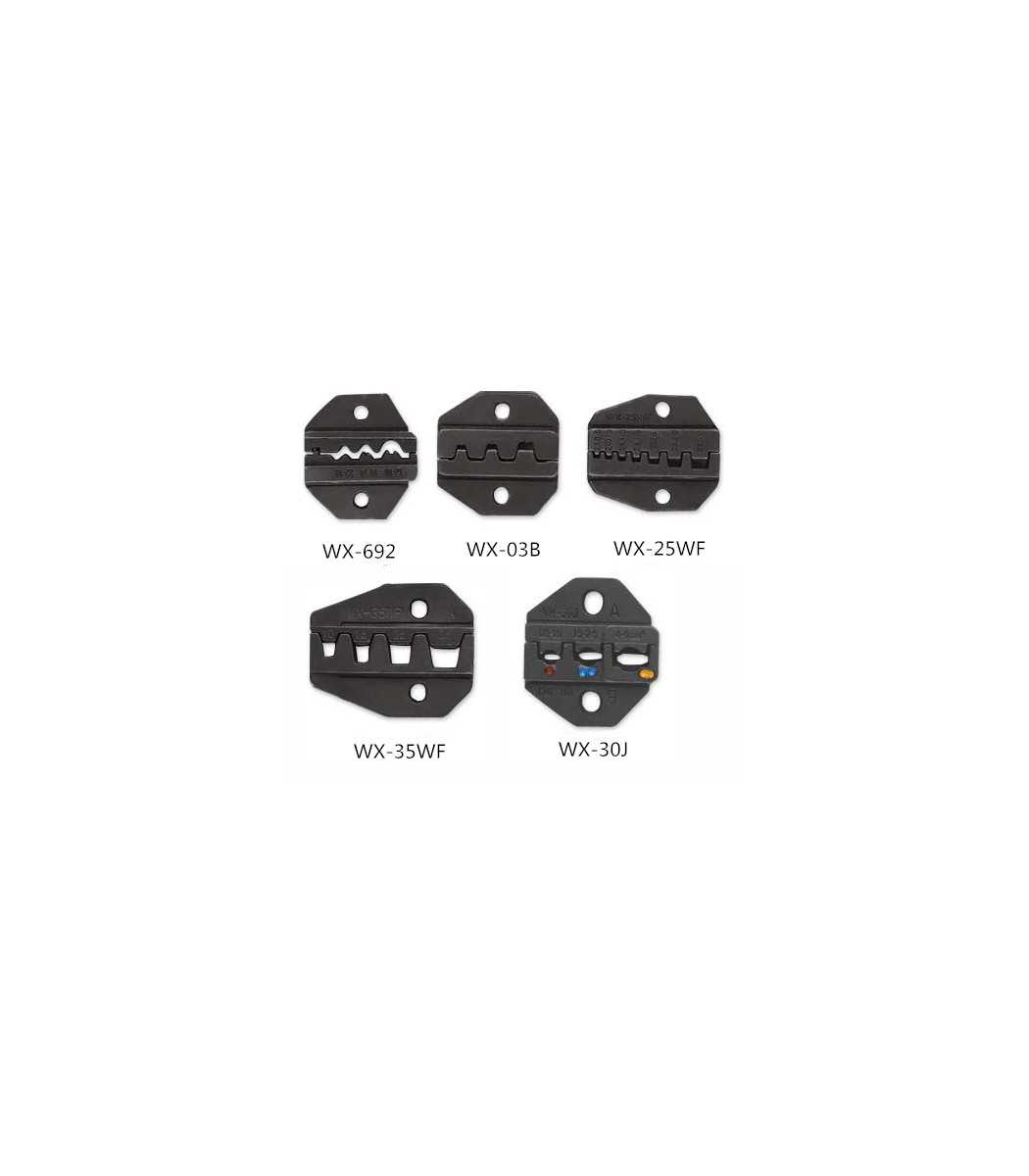

5 interchangeable terminal inserts:

• For non-insulated, flat-shaped connectors (to 0.5-6 mm2)

• For isolated and uninsulated sleeves final veins (0.5-6 mm2)

• For isolated and uninsulated sleeves final veins (10-35 mm2)

• For non-insulated terminals(0.5-10 mm2)

• For isolated connectors (0.5-6mm2)
