Set of clamping machine with interchangeable jaws + clamps

1. Clamping Ends Cable Cu and Al

2. Electrical installation work, service, assembly

3. Ideal construction, to workshop, in maintenance

 HIGH QUALITY

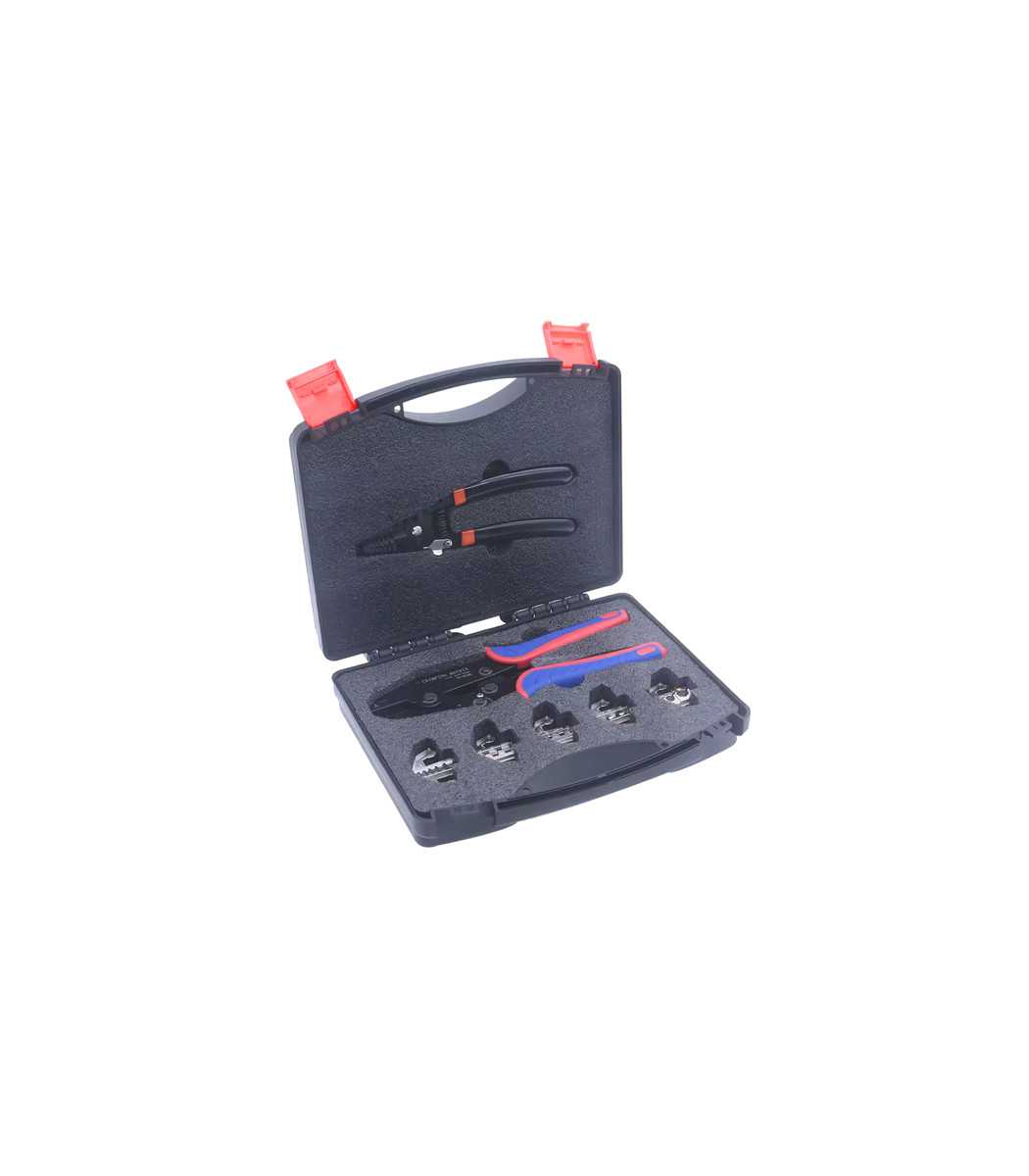

This handy set is suitable as a tool for clamping cable terminals, connectors and end connections. 5 different clamping jaws thanks to the screwdriver included in the set can be in short time to replace. The set is secured in a practical bag on tools.

The jaw replacement is done behind with the help of unscrewing the fastening screws. Screwdriver included.

CASE

The set includes a bag zippered, in which you can conveniently store and organize all repair tools.

5 REMOVABLE INSERTS CLAMPING

4. Insulated, flat connectors (up to 0.5 - 6 mm2)

5. To the isolated uninsulated end vein sleeves (0.5 - 6 mm2)

6. To the isolated uninsulated end sleeves of veins (10 - 35 mm2)

7. Insulated terminals (0.5 - 10 mm2)

8. For isolated connectors (0.5 - 6 mm2)

Suitcase size 24x22x7 cm

Weight 1 kg

Crimping capacity:0.25-10 mm2

Tempered tool

Τool blackened protection before corrosion

Rubbered handle

Interchangeable matrices 5 pcs.

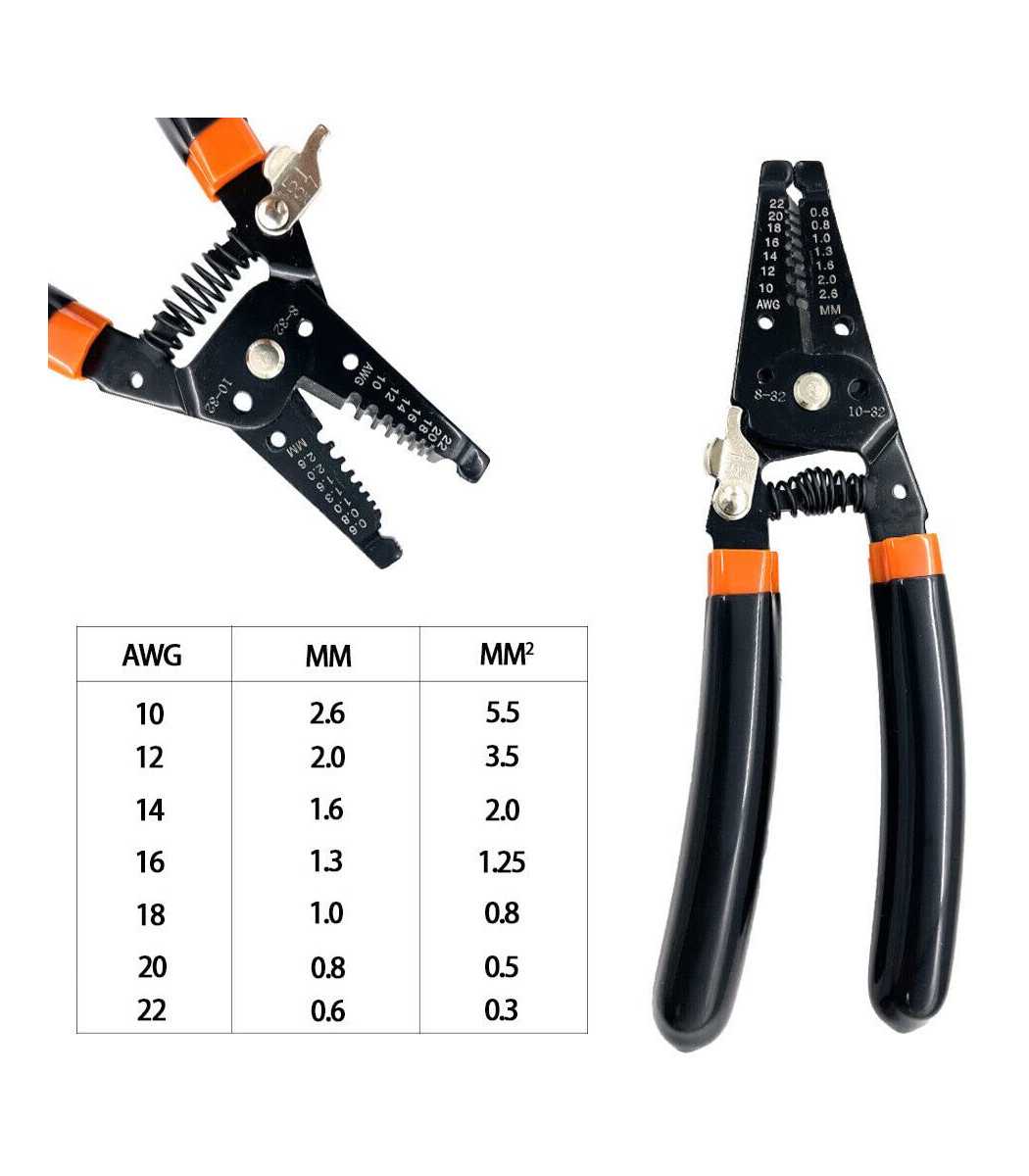

Insulation puller

Handy case with cartridge foam

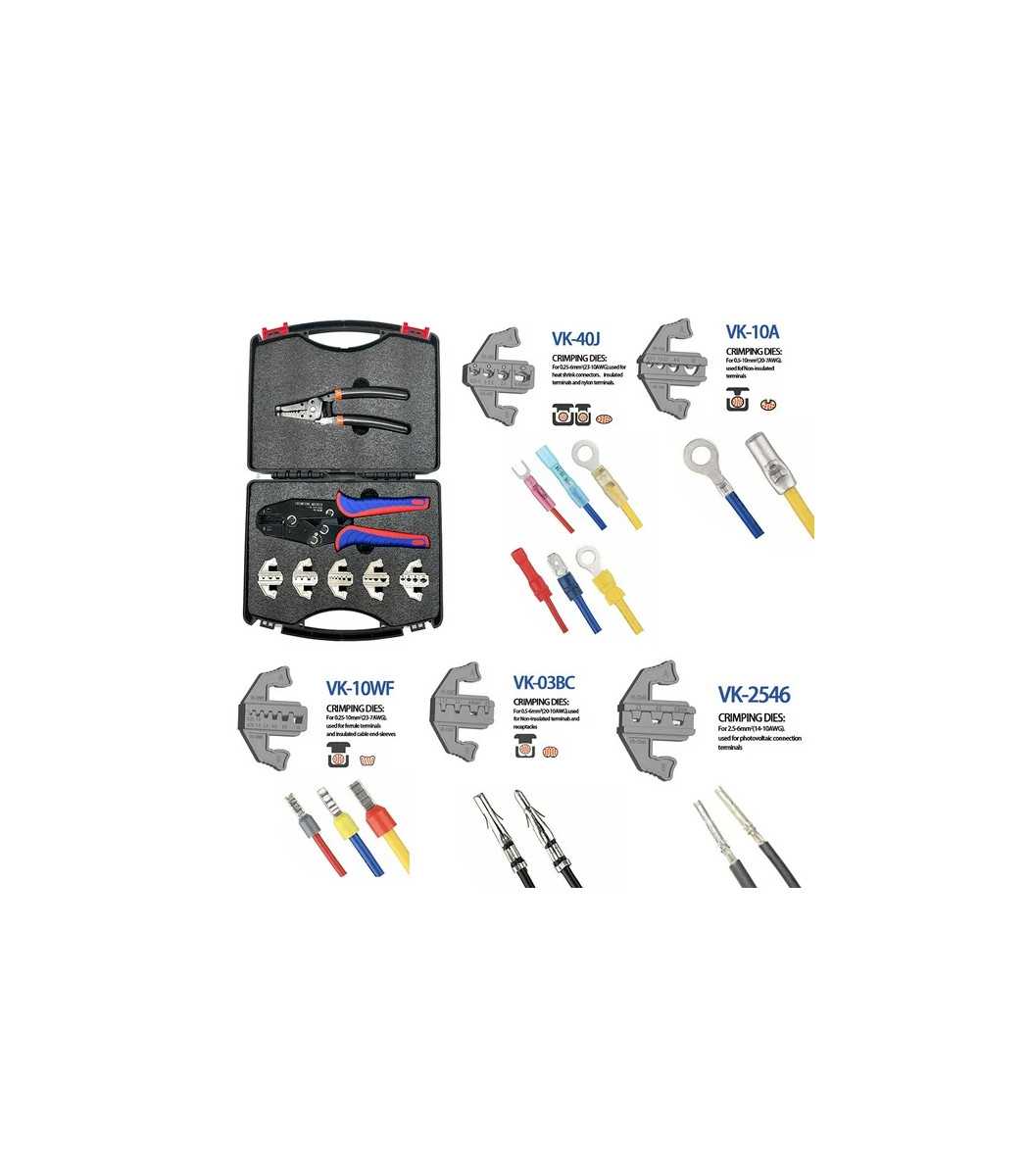

✳️VK-40J: For 0.25 - 6mm2(23-10AWG) - For shrink connectors, insulated tips and tips nylon.

✳️VK-03BC: For 0.5 - 6mm2(20-10AWG) - For uninsulated clamps and sockets

✳️VK-10A: For 0.5 - 10mm2(20-7AWG) - For non-insulated clamps

✳️VK-10WF: For 0.25 - 10mm2(23-7AWG) - For sleeve tips and insulated cables

✳️VK-2546: For 2.5 - 6mm2(14-10AWG) - For connection terminals of photovoltaic installations MC4
