Steel hoist for building materials and photovoltaic panels - 20m. / 200kg

Steel hoist for building materials and photovoltaic panels CIMEX SL200 is a specialized device designed for the transportation of solar panels,

stody materials on sloping roofs or other hard-to-reach places. It ensures efficiency and safety in moving and installing photovoltaic panels and building materials in different conditions.

The main goal is to facilitate the installation process by reducing physical exertion and increasing the safety of the workflow.

Thanks to its lightness and compact dimensions, it offers excellent mobility and can be easily transported by station wagon, van or even patty.

The CIMEX SL200 solar panel hoist is used in the photovoltaic installation industry,

mainly used in the installation of solar panels on the roofs of houses, business buildings, industrial halls and other similar facilities. The hoist is suitable for both new construction and repair of existing buildings. With the help of this hoist,

you can easily safely move your necessary building materials at a height of up to 20 meters. It saves a lot of valuable time, facilitates the workflow.

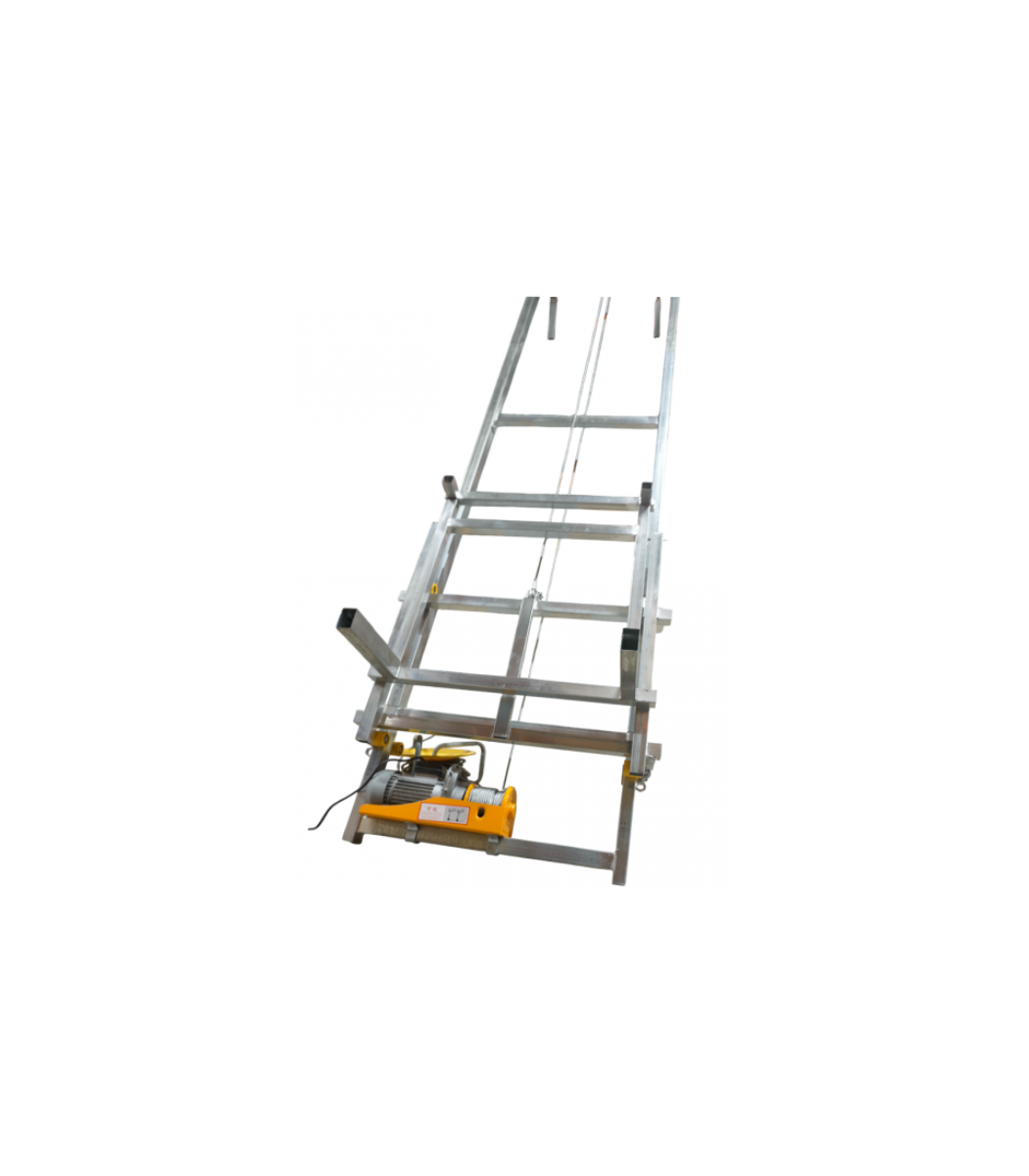

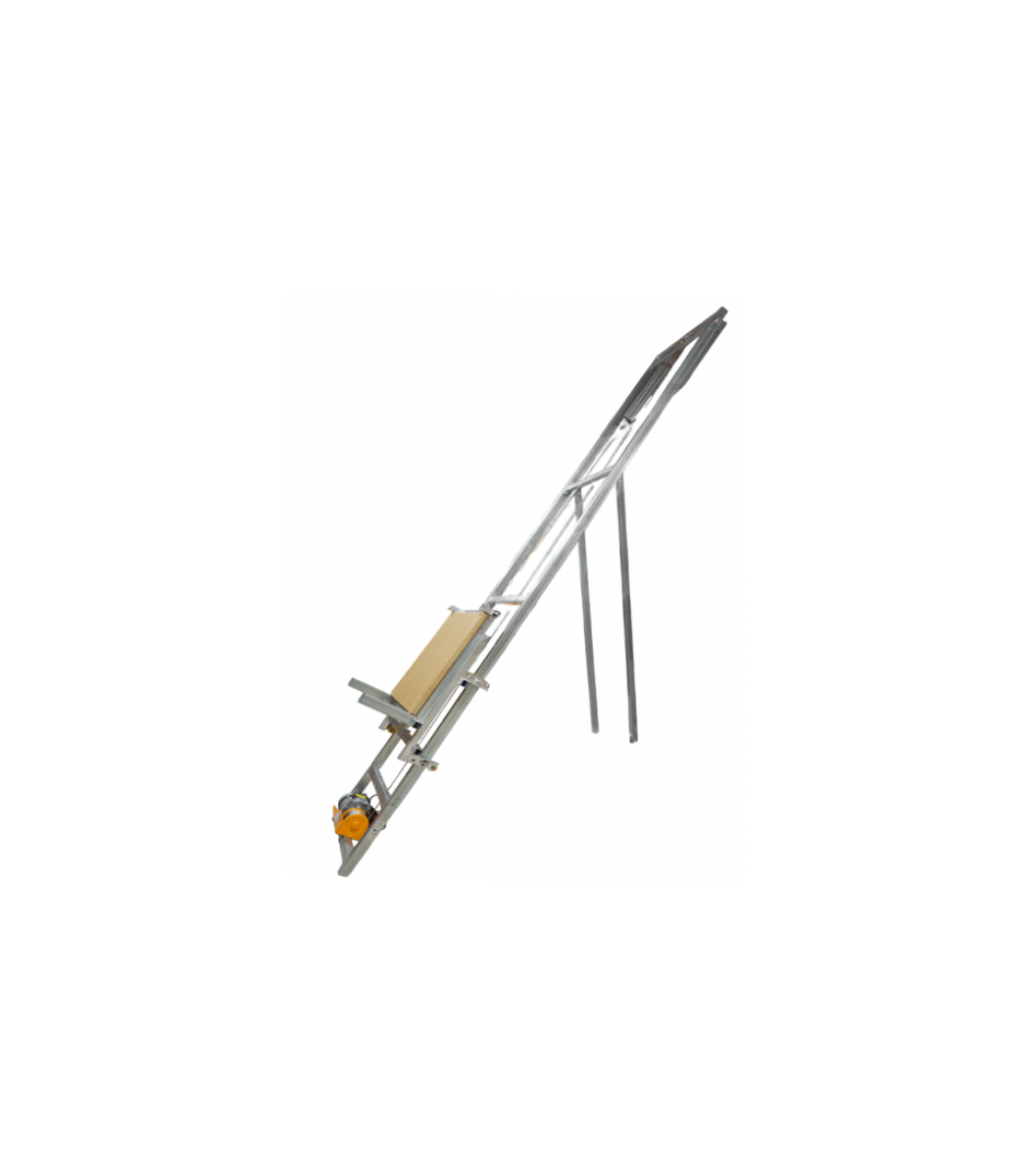

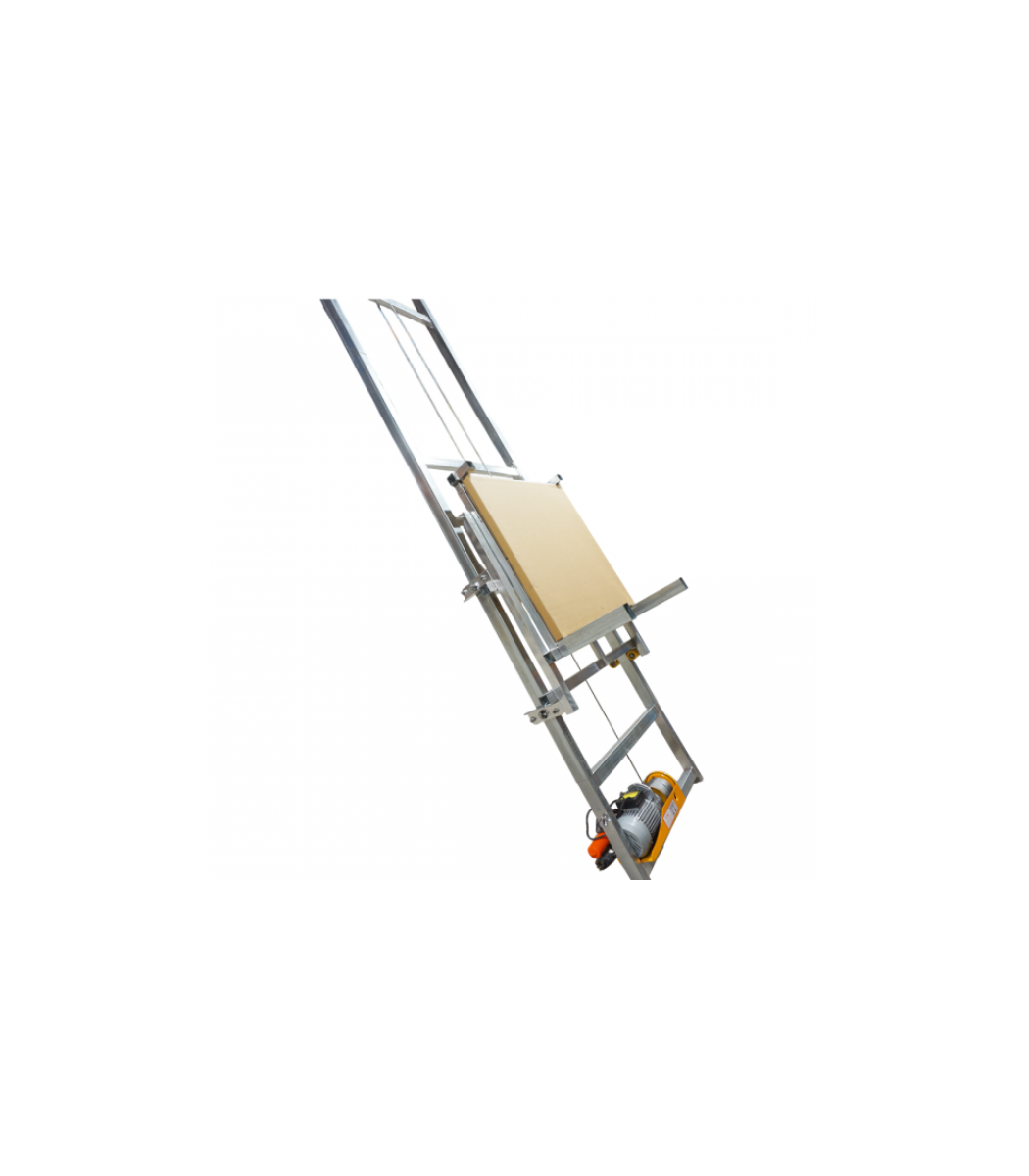

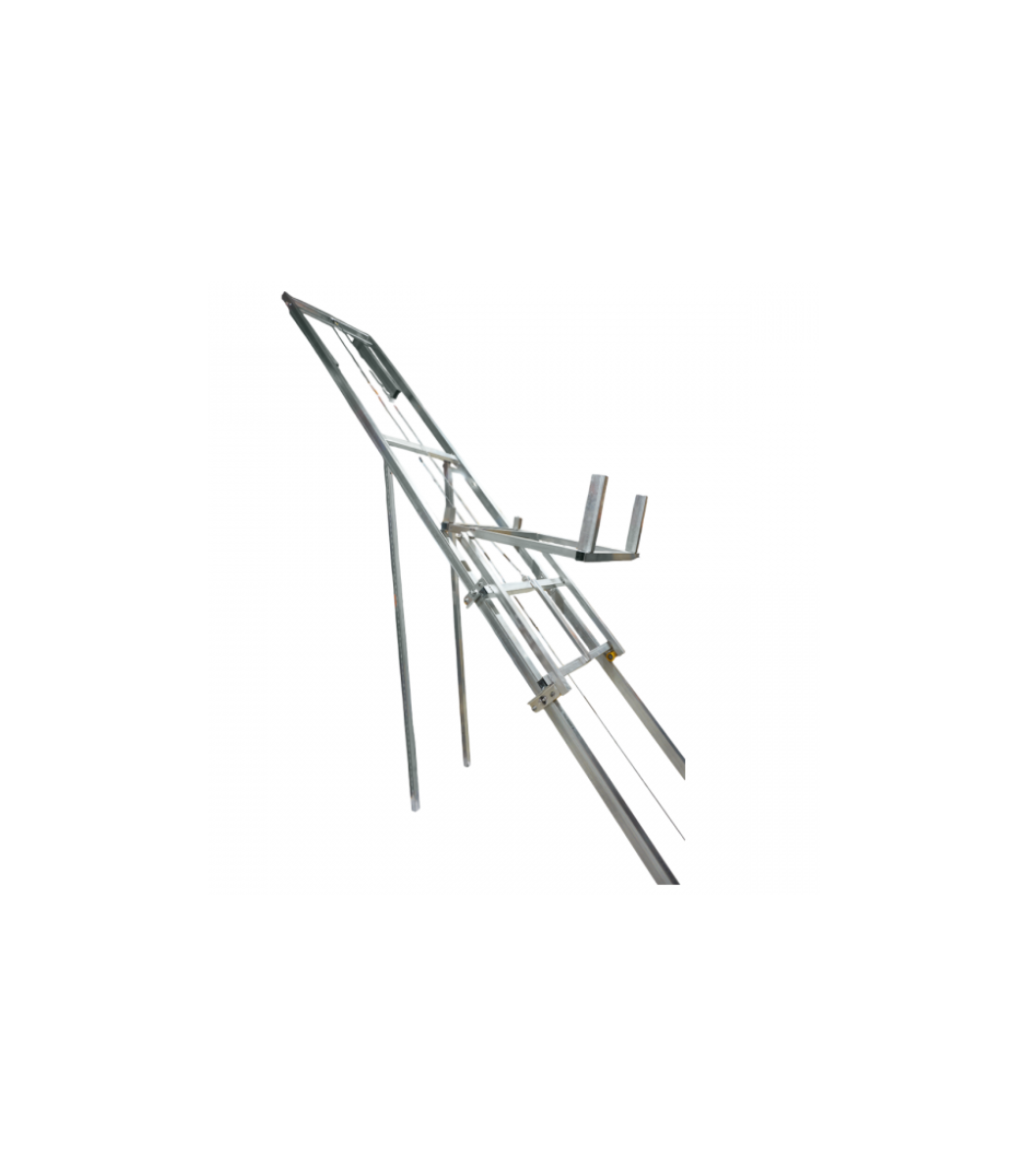

CIMEX hoist consists of essential components, including motor node, ladder, cargo platform.

The motor node provides the necessary strength to lift and lower the platform. The ladder and track are made of steel guide rails that connect without requiring tools for installation.

The hoist is designed to offer stability and safety in the transportation and installation of solar panels.

Advantages:

• Flexibility – the hoist is easy to set up and can be used on various sloping surfaces, such as sloping roofs or construction sites.
• Efficiency – significantly accelerates the installation process and reduces the need for physical exertion of workers.
• Durability – made of high quality galvanized steel, which ensures durability and reliability in harsh conditions.
• Quick installation: The hoist can be assembled in less than 30 minutes, without the need for specialized tools.

Main features:

• Power : 3 kW
• Rated load : 200 kg
• Voltage : 220V AC 50Hz.
• Track length : 20 m.
• Electricity : 8A / 10A.
• Weight of the motor unit : 30 kg.
• Degree of protection : IP40.
• Work system : 40 minutes of work / 15 minutes of rest.
• Angle of inclination : 55°.
• Specifications of the rope : 40 m (ø4 mm).
• Speed : 12m/min
• Control method : wire controller
• Gross weight: 245 kg.
• Net weight: 225 kg.
