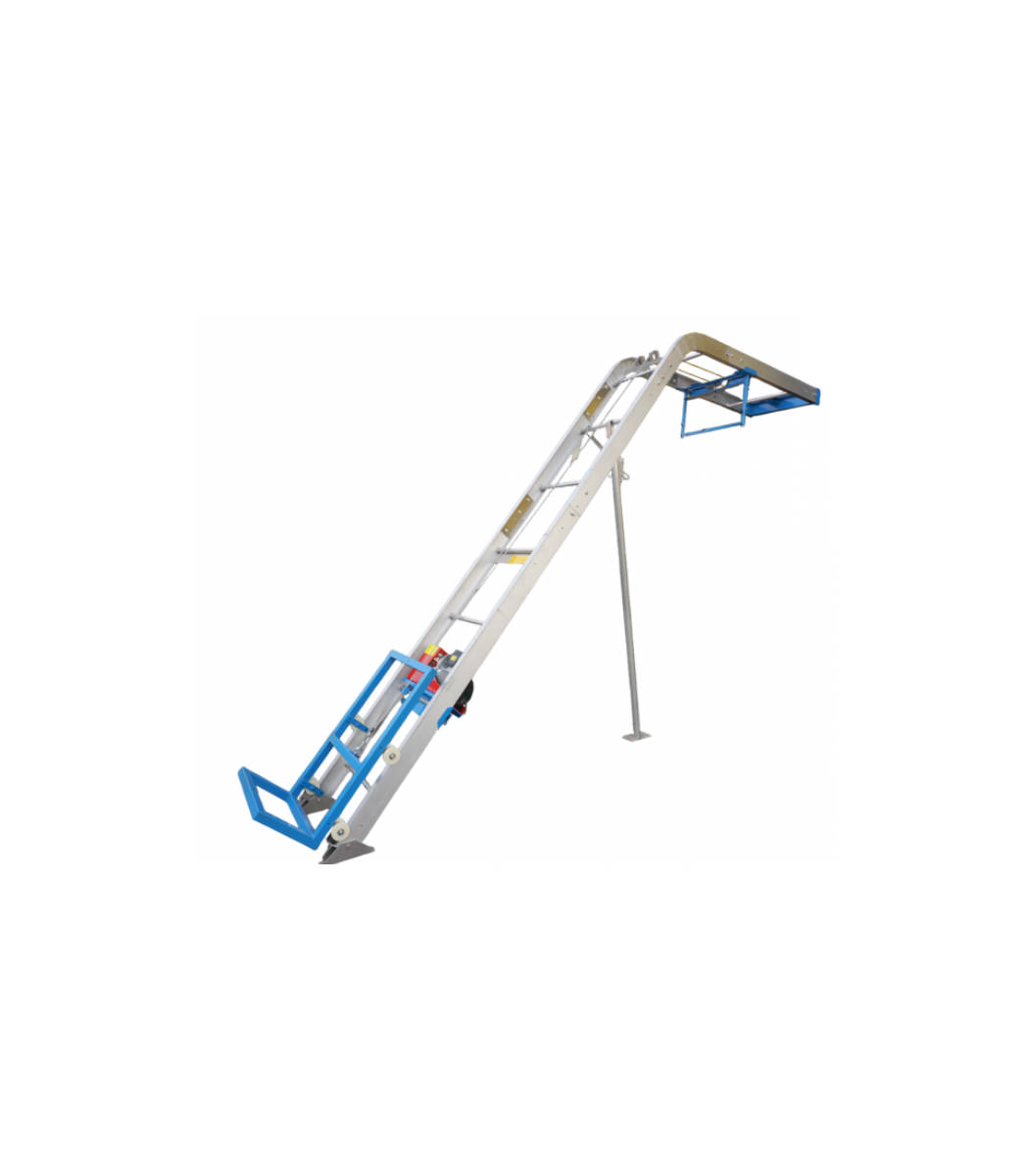

Steel hoist for building materials and photovoltaic panels 19m. / 200kg

Power: 1.6 kW / 2 kW depending on the load. Nominal load: 200 kg / 250 kg. Voltage: 220V AC 50Hz. Track length: 19 m. Current: 8A / 10A.

Motor unit weight: 24 kg. Degree of protection: IP40. Ladder length: 1 m / 2 m. Working system: 60 minutes work / 15 minutes rest.

Incline angle: 55°.

Rope specifications: 40 m (ø4 mm). Speed: 12-18 m/min. Control method: by wireless control.

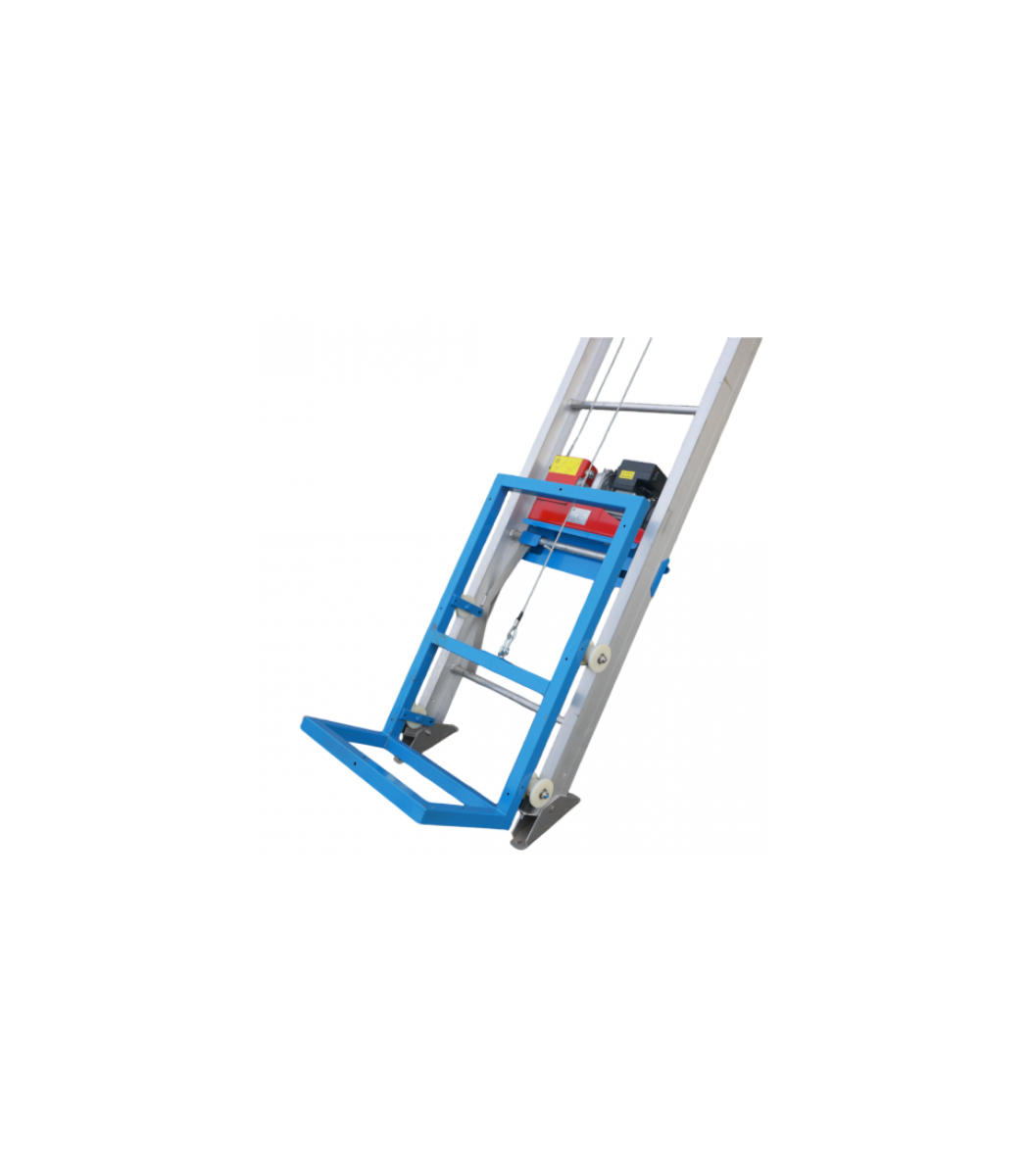

Loading platform size: 900 × 570 × 260 mm. Gross weight: 235 kg. Net weight: 205 kg.

Advantages:

• Flexibility – the hoist is easy to set up and can be used on various sloping surfaces, such as sloping roofs or construction sites.
• Efficiency – significantly accelerates the installation process and reduces the need for physical exertion of workers.
• Durability – made of high quality galvanized steel, which ensures durability and reliability in harsh conditions.
• Quick installation: The hoist can be assembled in less than 30 minutes, without the need for specialized tools.

Main features:

• Power : 3 kW
• Rated load : 200 kg
• Voltage : 220V AC 50Hz.
• Track length : 20 m.
• Electricity : 8A / 10A.
• Weight of the motor unit : 30 kg.
• Degree of protection : IP40.
• Work system : 40 minutes of work / 15 minutes of rest.
• Angle of inclination : 55°.
• Specifications of the rope : 40 m (ø4 mm).
• Speed : 12m/min

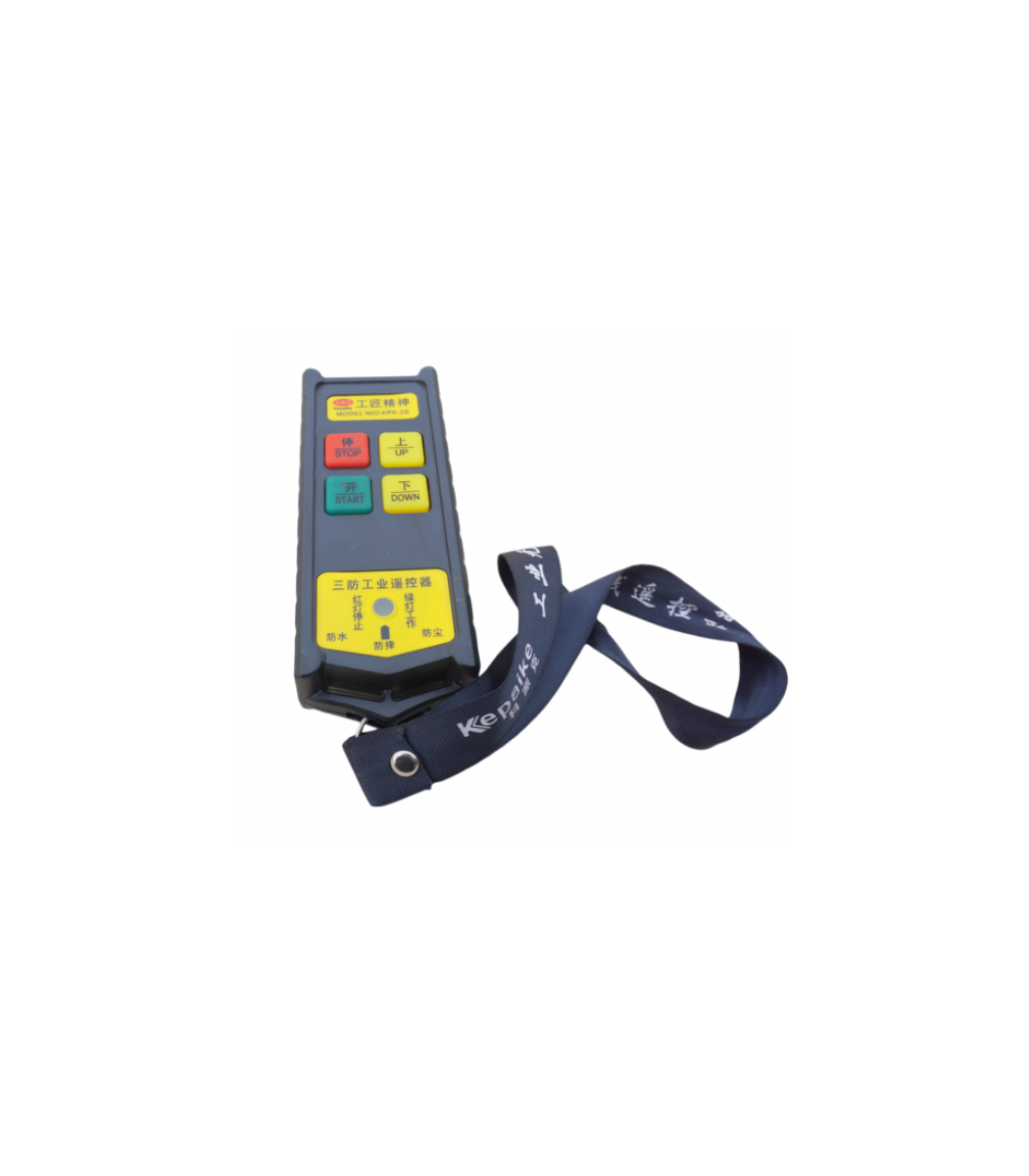

• Control method : wire controller
• Gross weight: 245 kg.
• Net weight: 225 kg.
