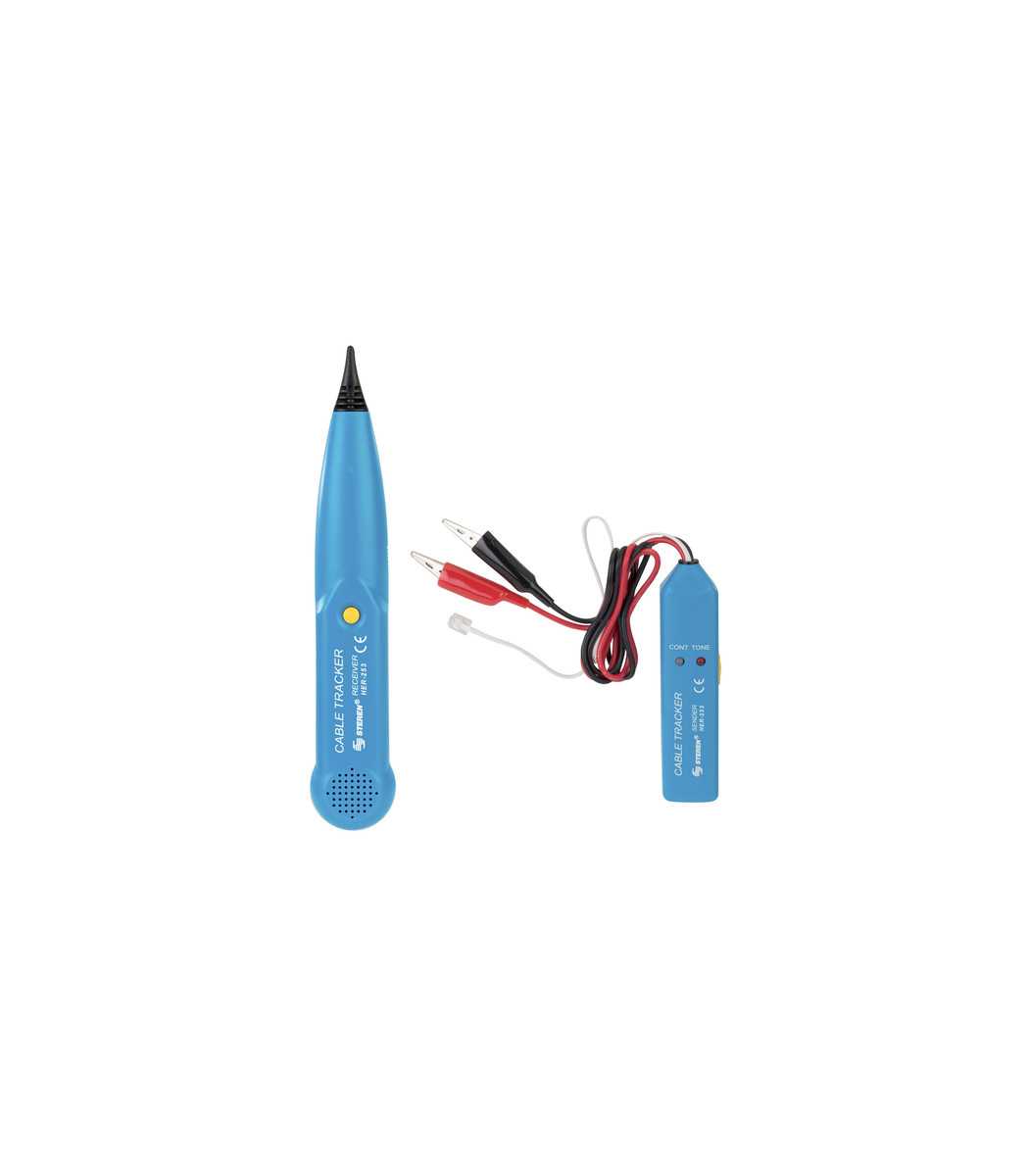

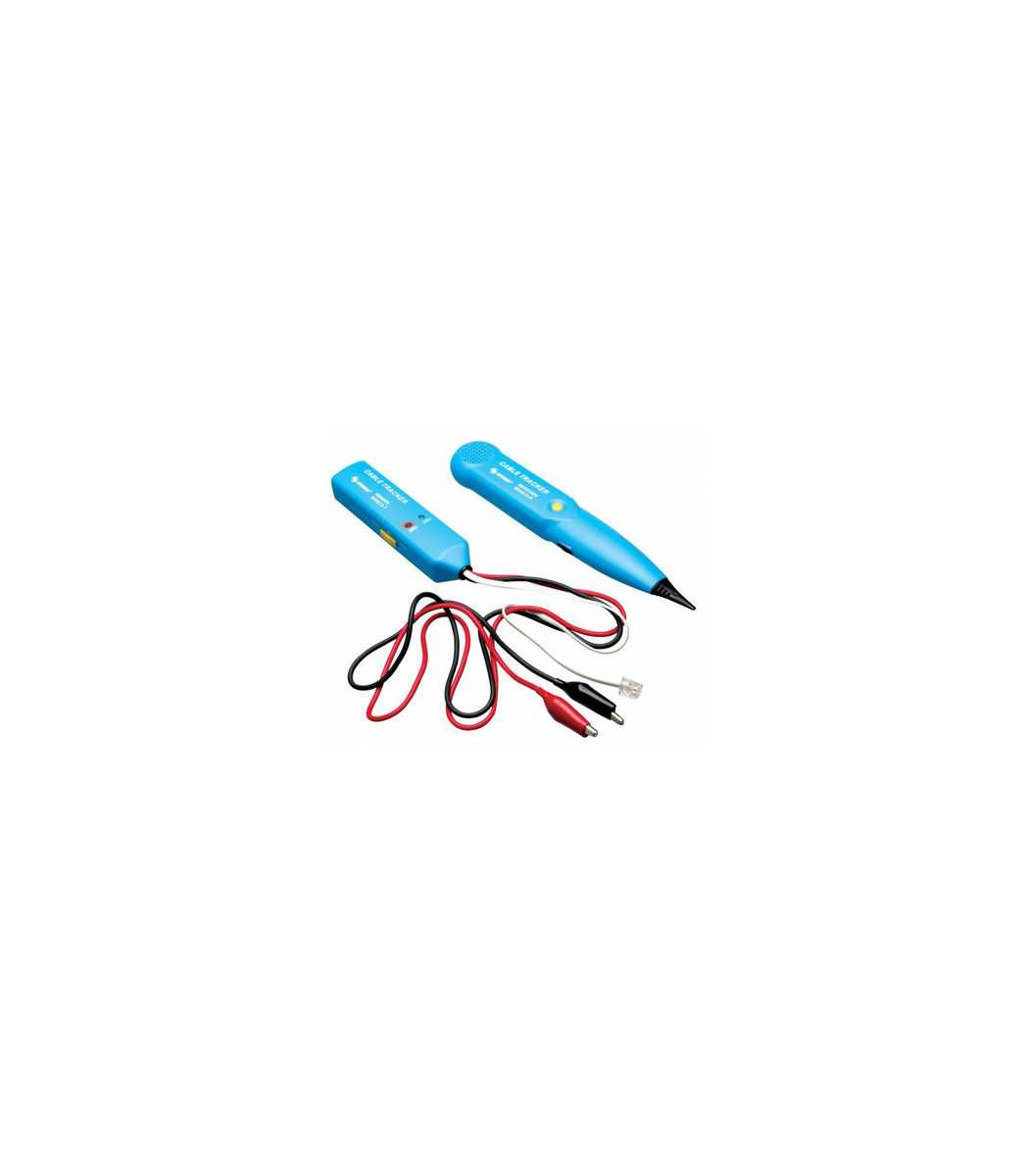

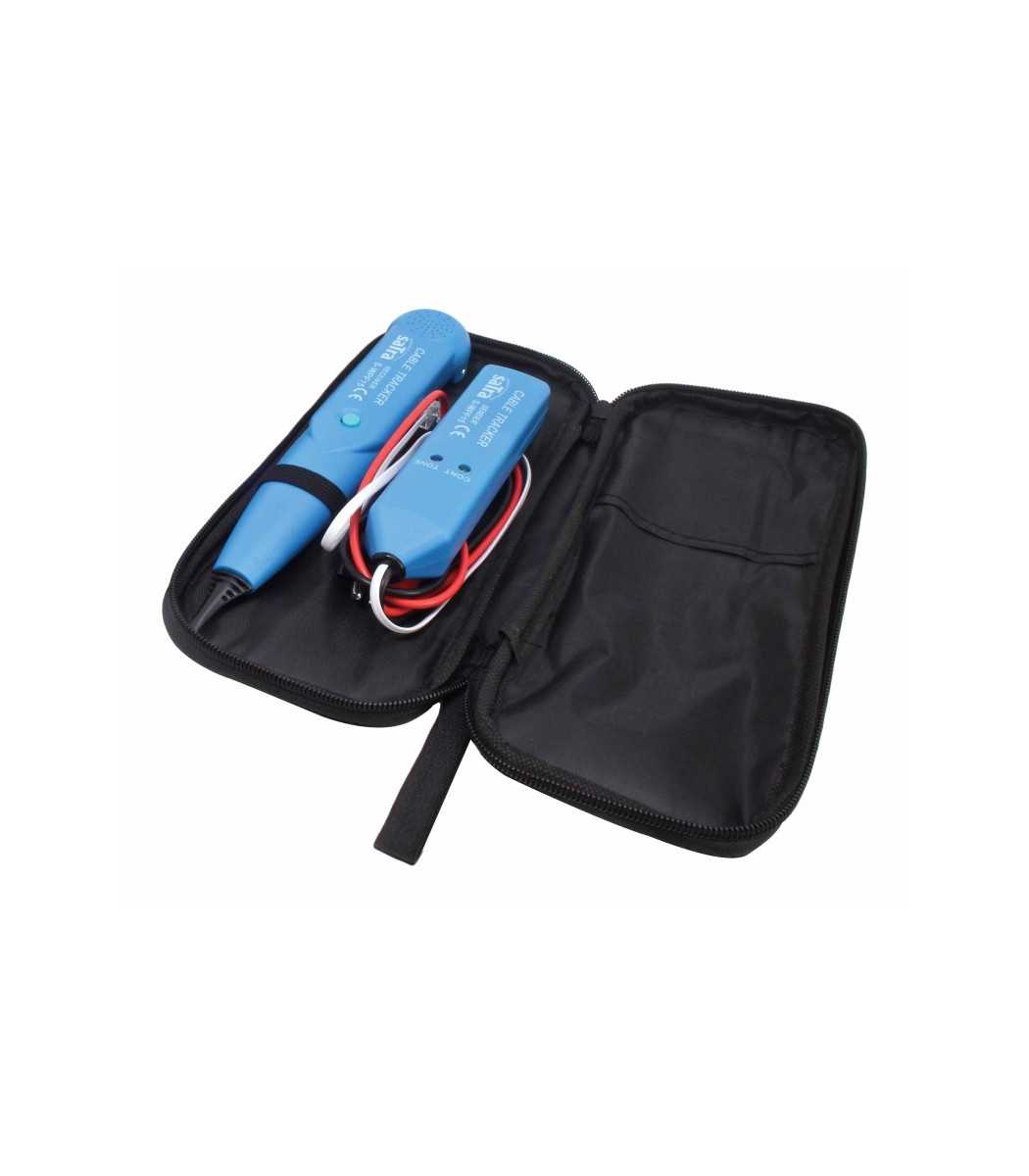

S-WPF15 MULTI-FUNCTION CABLE TRACKER

Designed for precise location and continuity testing of wires in electrical and telecommunications installations without damaging the insulation.

The transmitter sends a signal that the receiver detects on the corresponding wire pair, facilitating identification and troubleshooting of wiring issues.

Applications:

·         Locating breaks in electrical or telecommunication wires

·         Pinpointing the exact location of cable faults

·         Detecting ringing signals on telephone lines

·         Verifying the operational state of telephone lines

·         Sending an identification signal to isolate a specific wire among multiple conductors

Features:

·         High sensitivity allows operation on multi-pair cables, supporting up to 100 pairs

·         Connects to wiring via RJ-11 connectors or alligator clips

·         Receiver equipped with audible tone indication and adjustable volume control

·         Headset support via integrated mini-jack port on the receiver

Technical Specifications:

·         Receiver signal frequency: 100 – 300 kHz

·         Transmitter signal frequency: 1.5 kHz

·         Transmitter dimensions: 145 × 35 × 25 mm

·         Receiver dimensions: 238 × 43 × 26 mm

·         Transmitter weight: 114 g (with battery)

·         Receiver weight: 106 g (with battery)

·         Power supply: 2 × 9V batteries – batteries not included
