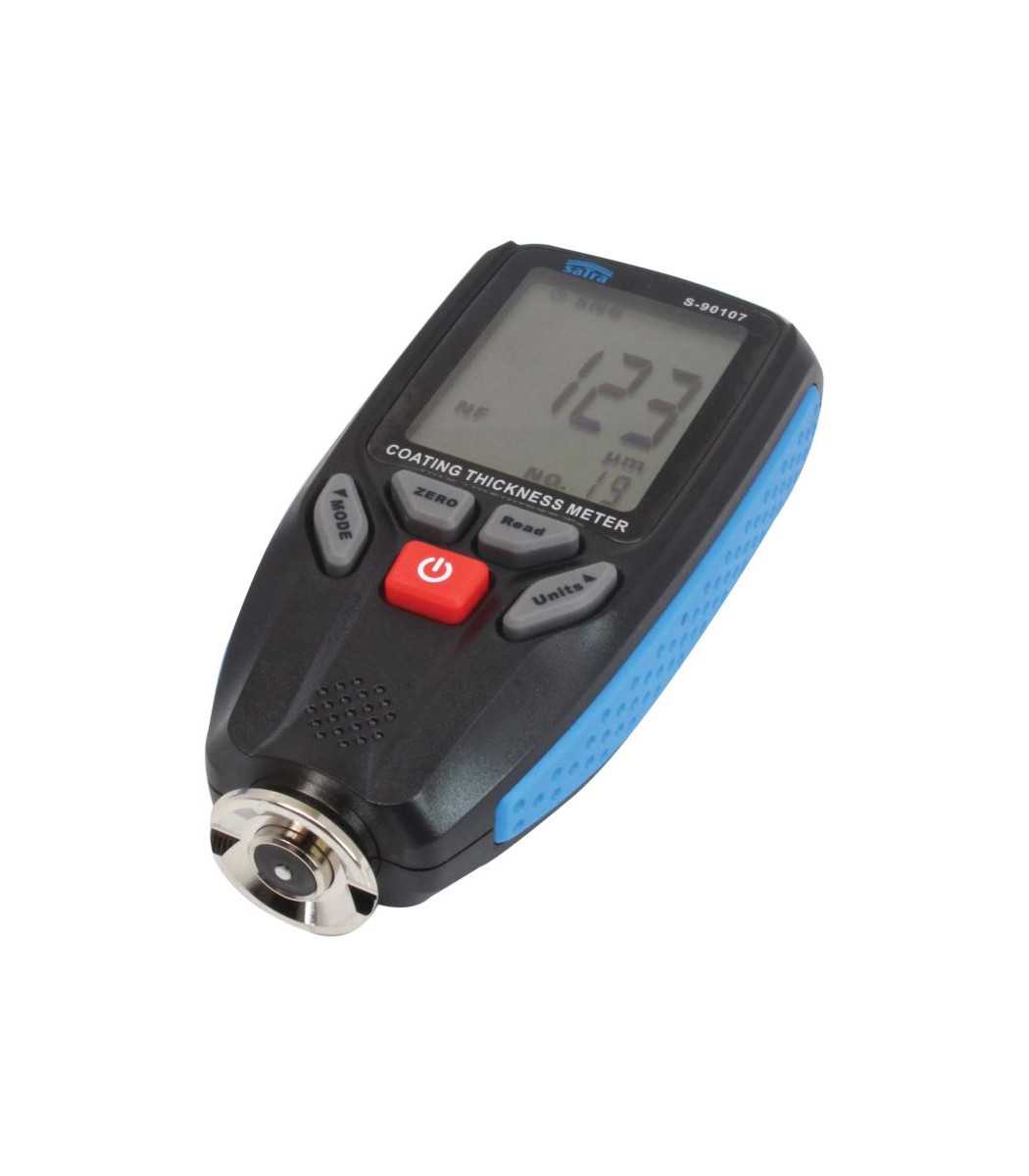

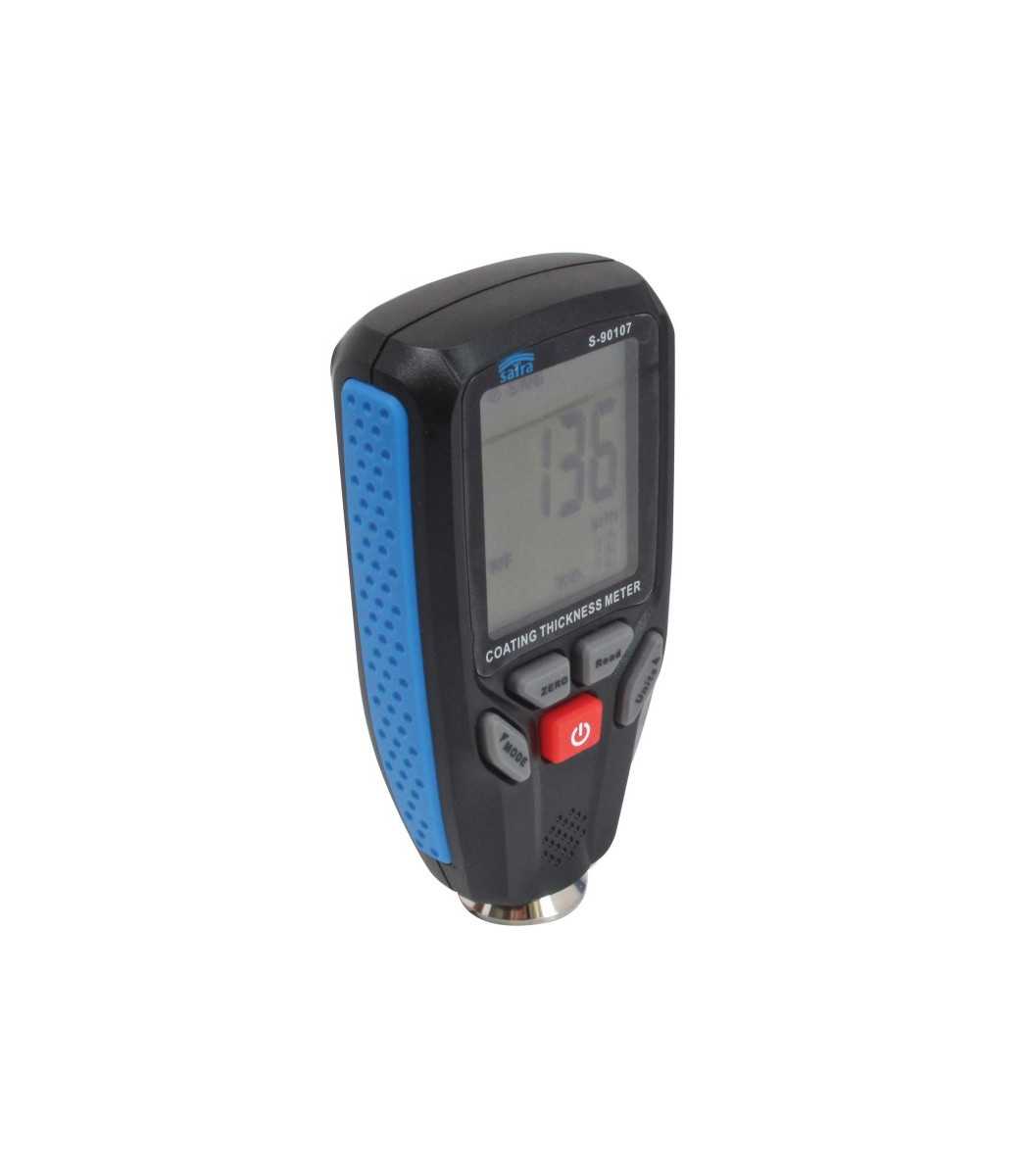

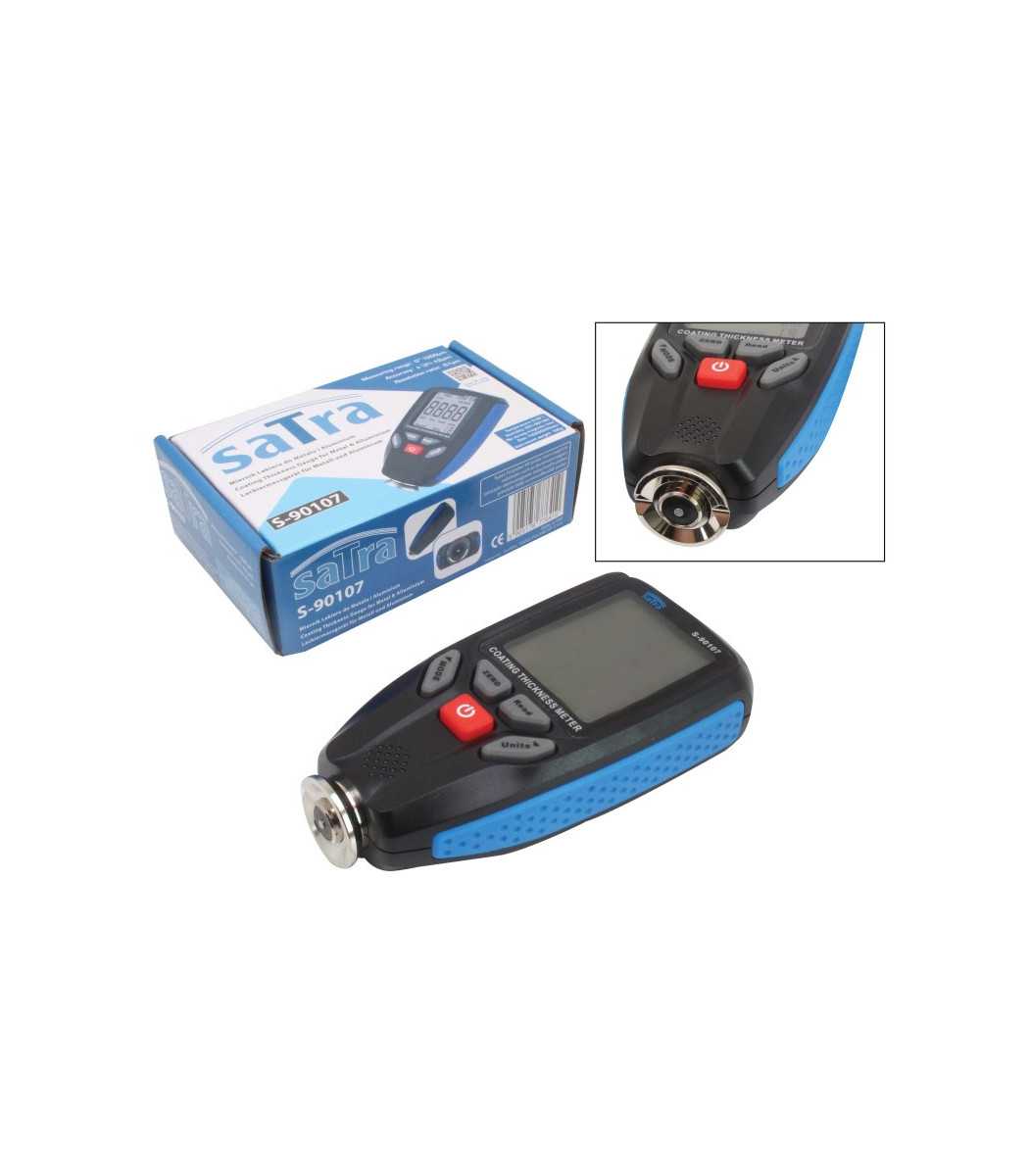

S-90107 Coating Thickness Meter

The paint thickness gauge is designed for measurements on both magnetic and non-magnetic materials.

It automatically recognizes the type of substrate, ensuring precise results on various surfaces, making it an excellent tool for assessing the quality of protective coatings and paintwork.

The digital format with a large, easy-to-read LCD display provides user comfort and accurate readings.

The gauge is widely used in the automotive industry as well as in metalworking.

Its measuring range of 0 to 1.3 mm, along with the ability to account for curvature radius, guarantees reliable readings even on curved or angled surfaces.

Technical Specifications:

Types: Fe probe / NF probe (non-magnetic substrates such as aluminum/copper)

Operating principle (Fe probe): electromagnetic induction

Operating principle (NF probe): eddy current effect

Measuring range: 0 ~ 1300 μm

Accuracy:

Resolution: 0.1 μm

Calibration: zero calibration, multi-point calibration

Units: μm / mil

Minimum convex curvature radius: 1.5 mm

Minimum concave curvature radius: 25 mm

Minimum measurement surface diameter: 6 mm

Minimum substrate thickness (Fe probe): 0.5 mm

Minimum substrate thickness (NF probe): 0.3 mm

Power supply: 2 × 1.5 V AAA

Operating environment:

- Temperature: 0–40℃

- Humidity: 20%–90% RH

- No strong magnetic field

Dimensions: 115 × 50 × 25 mm
