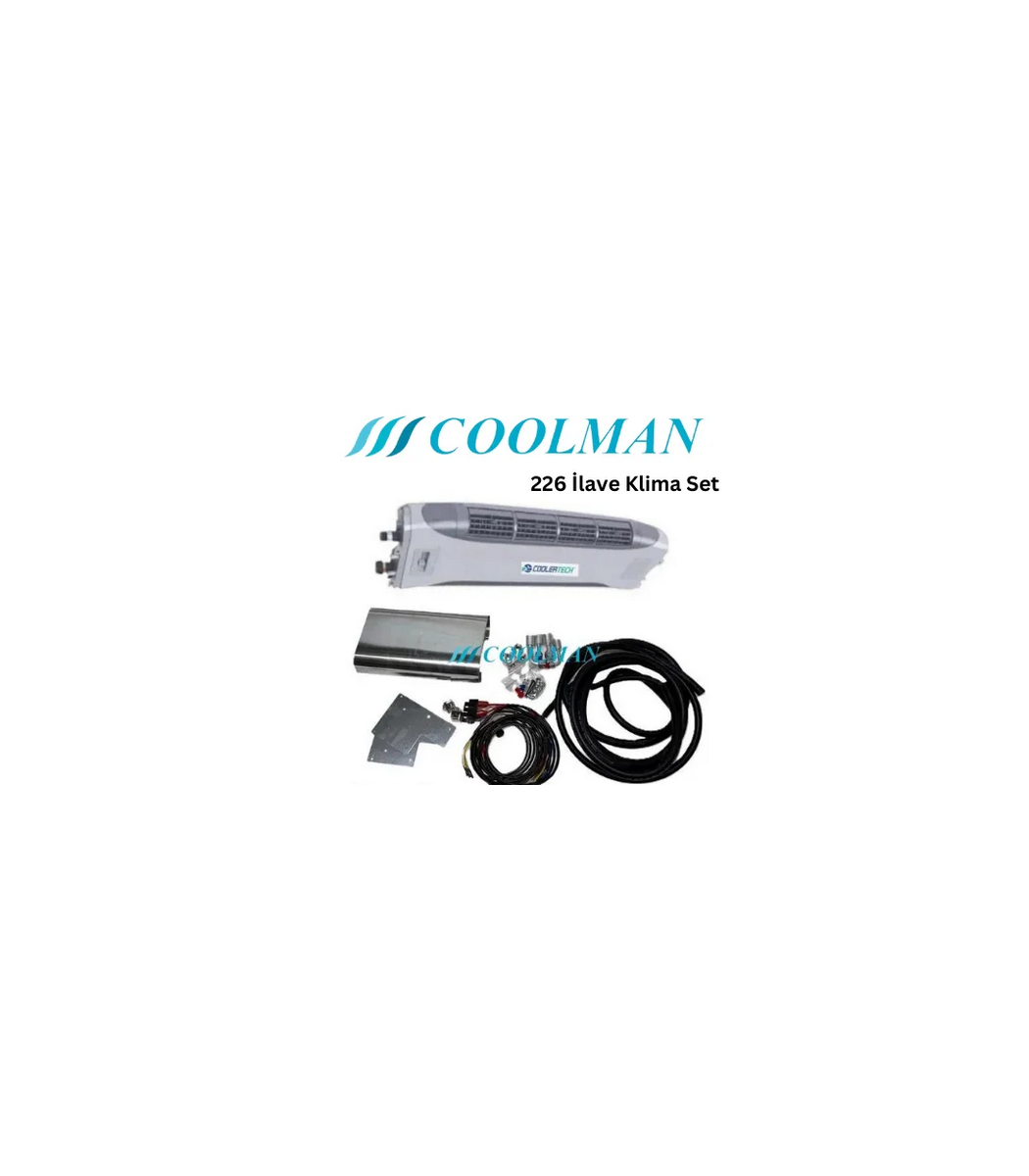

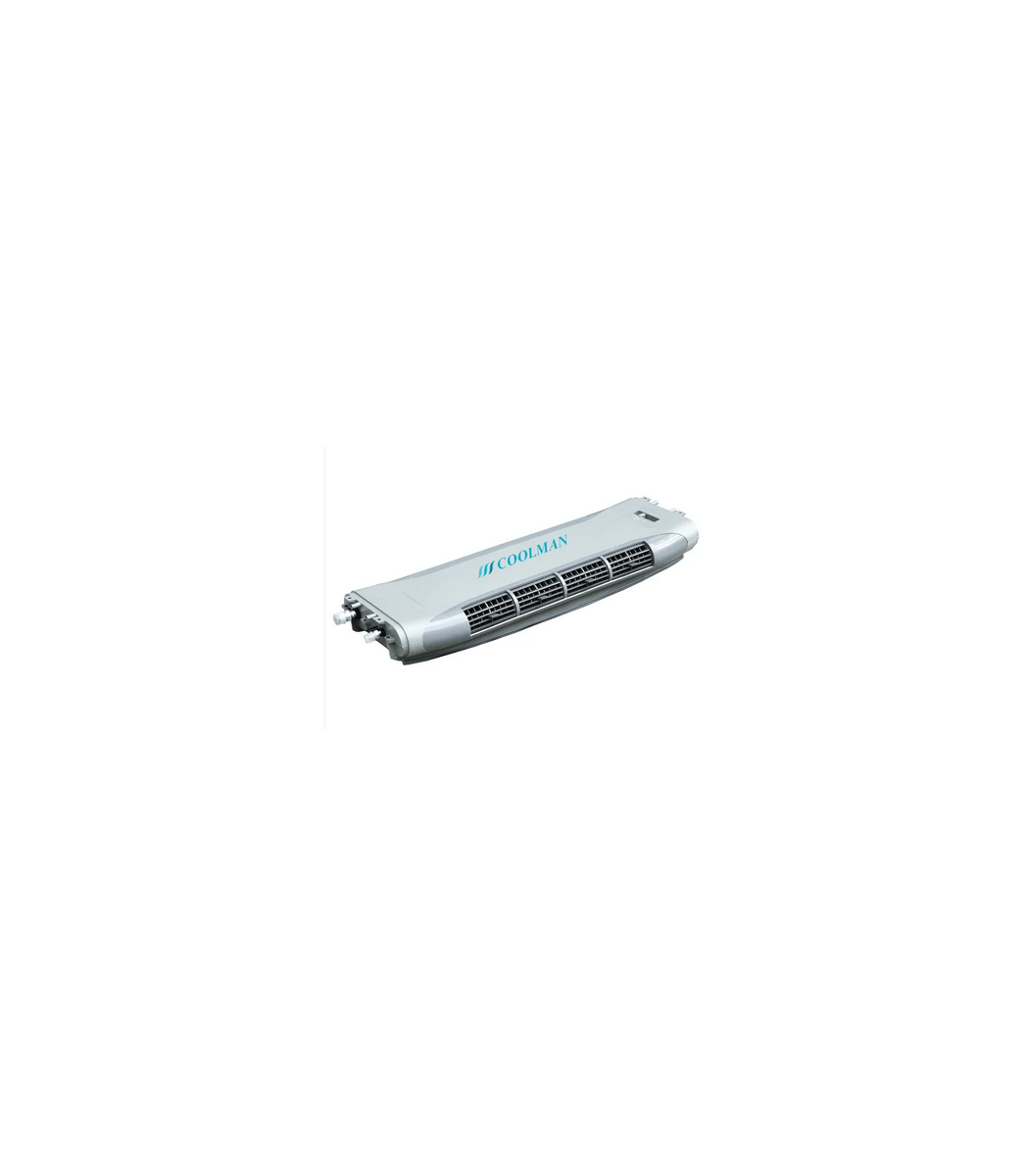

226 Evaporator Additional Air Conditioner

Cooling Capacity: 3-8 kW (10236 – 27296 BTU/h) (2580 – 6880 kcal/h)

Cooled Air Flow: 1360 m³/h Performance Limit: 45°C (Outdoor temperature)

Current Draw: 18 A @12 VDC – 9 A @24 VDC Internal Dimensions: 82 x 27 x 11.5 mm Unit Weight: 11 kg Refrigerant: R134a 226

Evaporator Additional Air Conditioner is a product designed especially for cooling the rear passenger compartment

of vehicles such as Vito, Caravelle, Transporter, Custom with front air conditioning.

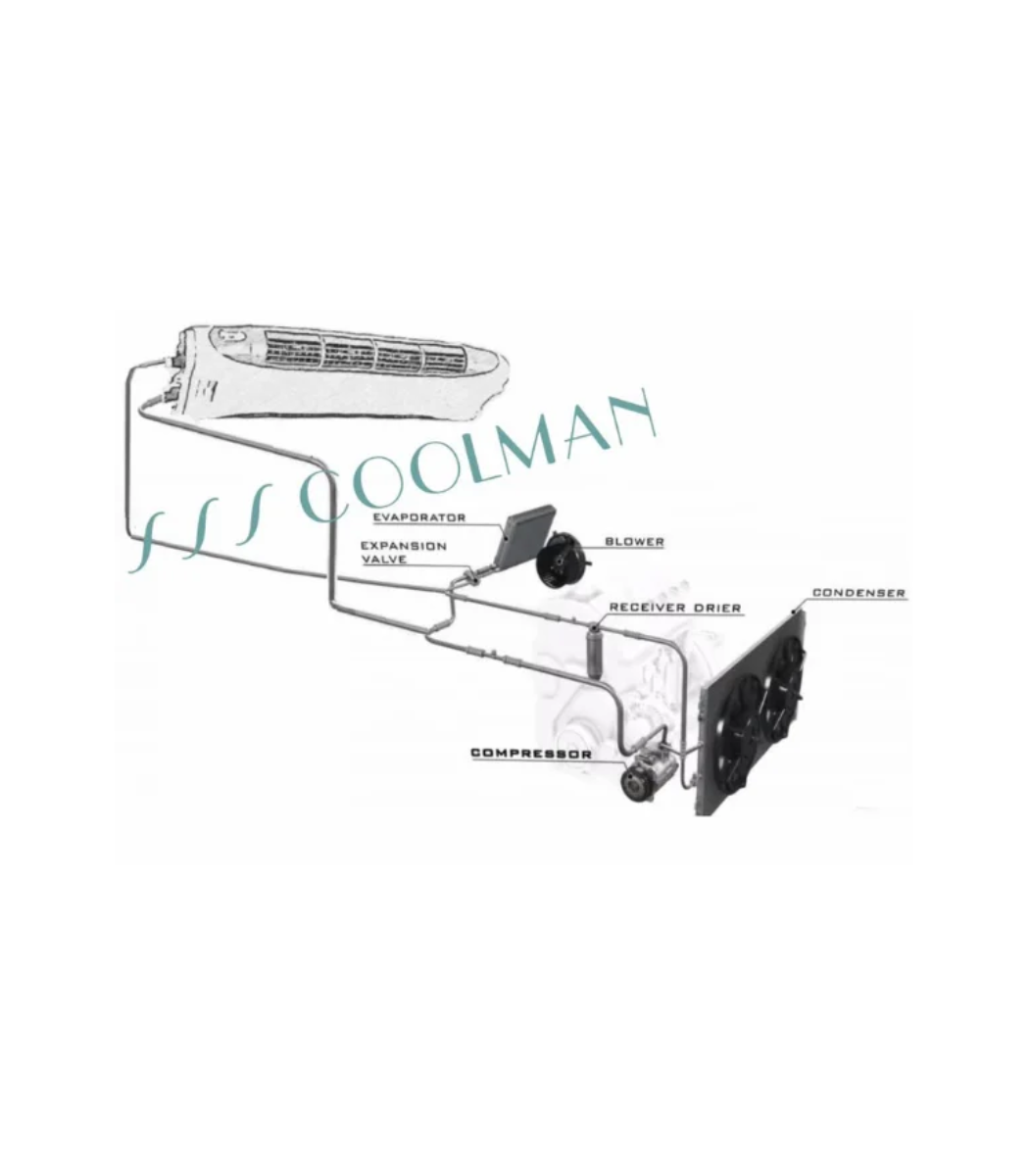

This evaporator, which is mounted on the ceiling

of the rear seat section of VIP style transfer vehicles, works with the gas line integrated into the original air conditioning compressor of the vehicle.

In this way, a double air conditioning system is provided with a single compressor.

226 Evaporator Additional Air Conditioner provides a superior air conditioning experience in the rear seat section,

while the air conditioning system in the front of the vehicle continues to work effectively.

The product provides passengers with a more enjoyable and comfortable travel experience,

while keeping the vehicle's interior at the desired temperature level. Offering high performance and efficiency,

this air conditioning set increases the air quality in the vehicle, providing maximum comfort on your journeys.
