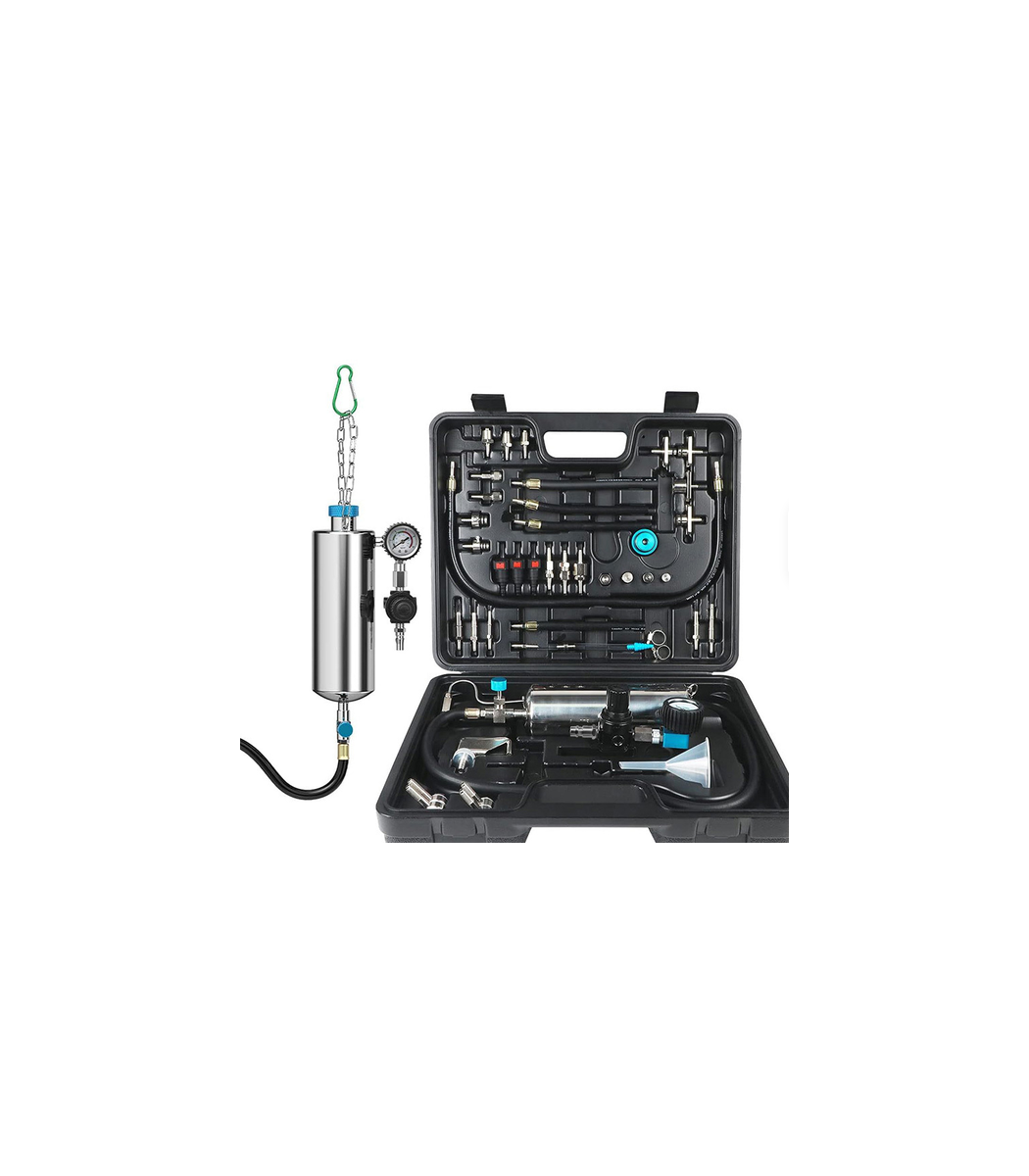

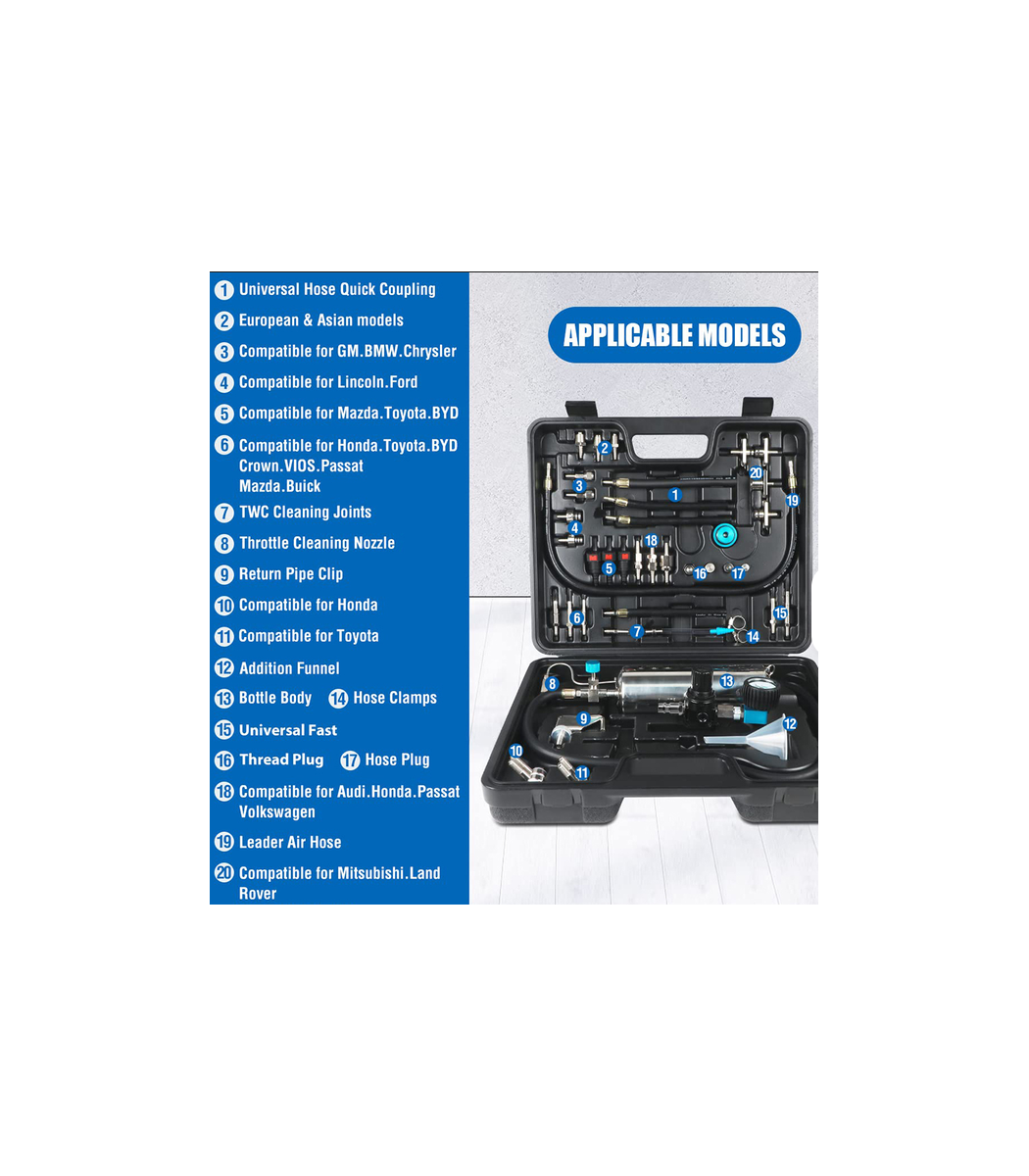

X101 PRO Injector cleaning kits include many different types of adapters

1. find the fuel return hose, disconnect it and connect it with a suitable adapter;

(2) Find the fuel inlet hose, disconnect it and connect it to the vacuum cleaner's outlet hose with a suitable adapter;

3. connect the fuel tank outlet and return hose and open the tank lid; If there is no return hose, move the fuel pump fuse so that the pump does not operate;

4 Charge the cleaning fluid into the cleaning agent tank;

5. connect the air source supply to the air port of the vacuum cleaner, adjust its pressure 40-50PSI;

6 Check all connection points to make sure there is no leakage;

7 Start the engine to clean the fuel system.

For throttle style:

For the throttle style system, the connection method is the same, just adjust the air source pressure 1-5PSI.

A way to identify the inlet and return hose:

1 Generally speaking, the inlet hose is larger, the return hose is samaller;

2. there is always a filter on the inlet hose side and a buffer on the return side;

3. there is an arrow on the hose showing the direction of fuel flow.
