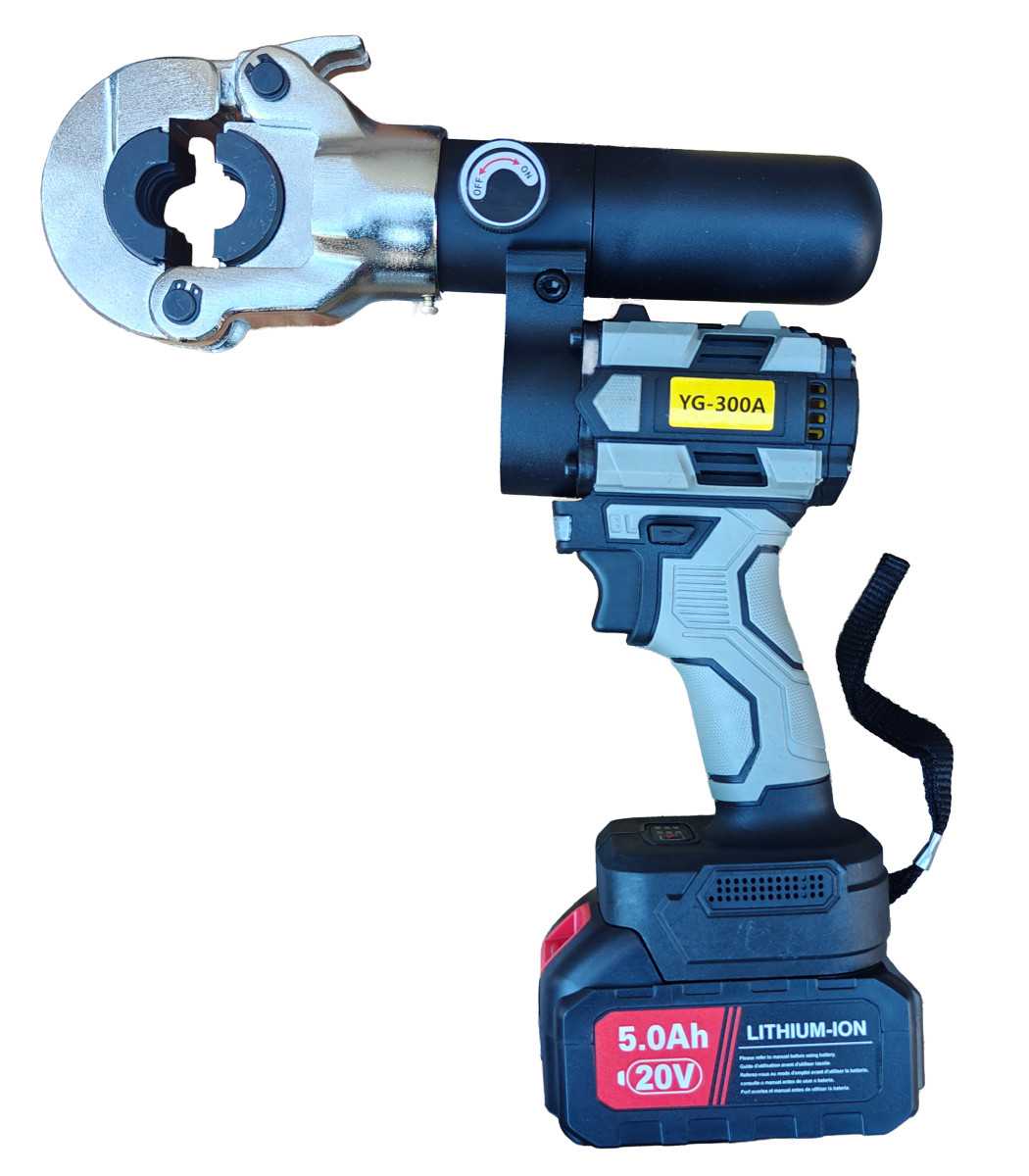

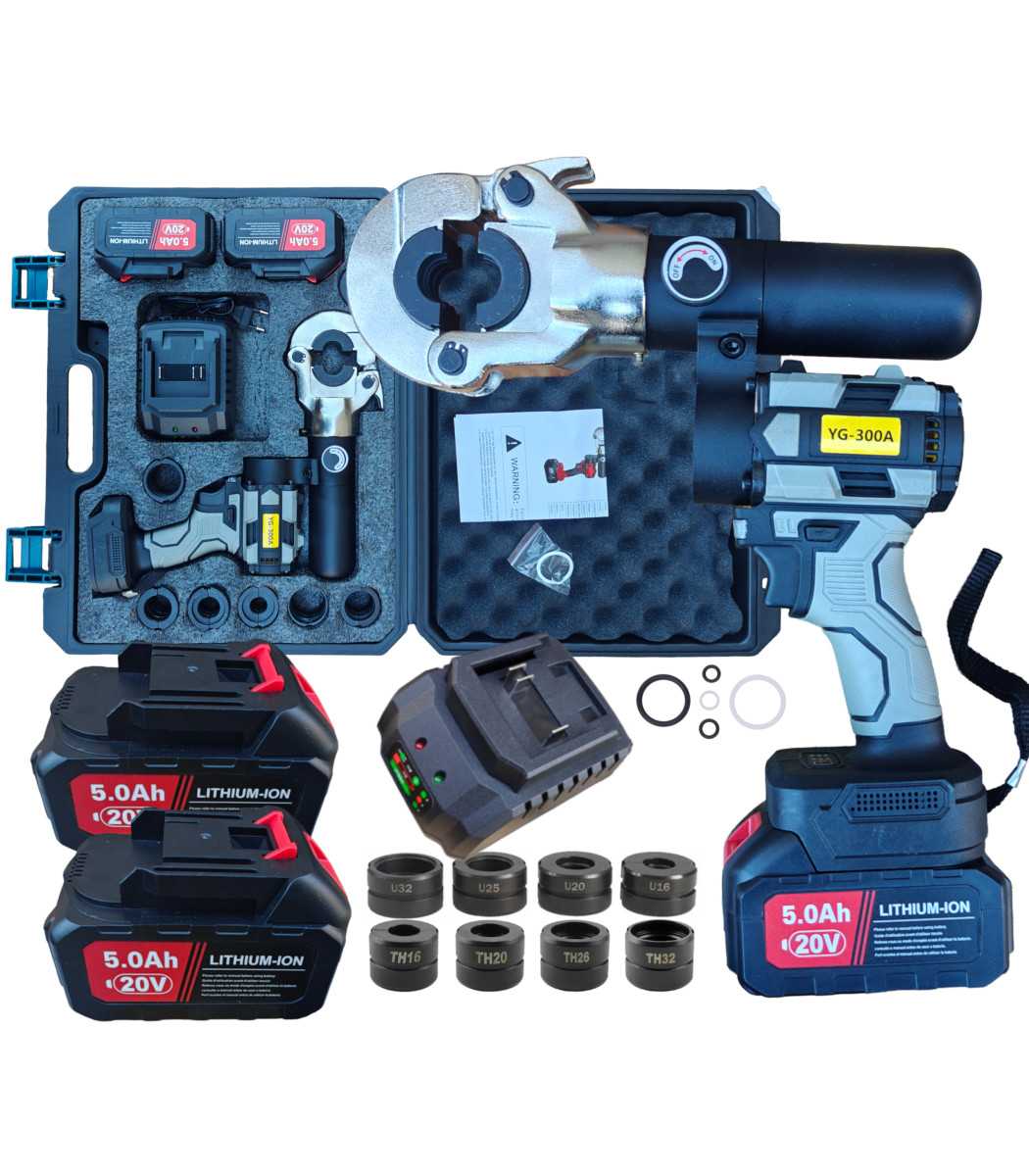

YG-300 cordless clamping machine connects TH+U

Brushless, portable, electric, hydraulic clamping pliers with rotating head

Professional clamping press for fittings, used for PEX, copper and stainless with the use of pressed connectors. The clamping machine is characterized by high quality of workmanship, repeatability of connections and reliability. Prague are equipped with a rotating and openable head for easy and fast execution of clamps. The use of a hydraulic cylinder makes The clamping machine has compact dimensions and does not require the use of force by the operator.

High efficiency: brushless electric motor provides continuous and strong power, helping to quickly perform crimping operations, thereby increasing work efficiency and reducing machining time.

High precision: The hydraulic system enables two-stage force control, guaranteeing precision and repeatability during use, which is ideal for applications requiring precise control of the pressure force.

Ease of operation: User-friendly design with easy-to-use buttons helps to reduce the workload and increase the operator’s efficiency.

Details Product:

Name Product: YG-300 EUROKOMP Electric Hydraulic Pliers

Strength pressure: 12 tons (80KN)

Battery: 5.0 Ah 20V. 10 lithium-ion cells (2 sets.)

Speed: 3000 cycles/minute

Matrix clamping:

U16, U20, U25, U32

TH16, TH20, TH26, TH32

Weight: 8.5 kg

Dimensions packaging: 46 x 12 x 36.5 cm

• IN ADDITION, IF THERE IS A NEED, WE HAVE IN ATTRACTIVE PRICES FOR SALE MATRIX V AND M
• Weight and dimensions: compact, suitable for field work

Charger to the batteries attached to the device.

The entrance 100-240V 5O-60Hz

Output: 21V DC 2A.
