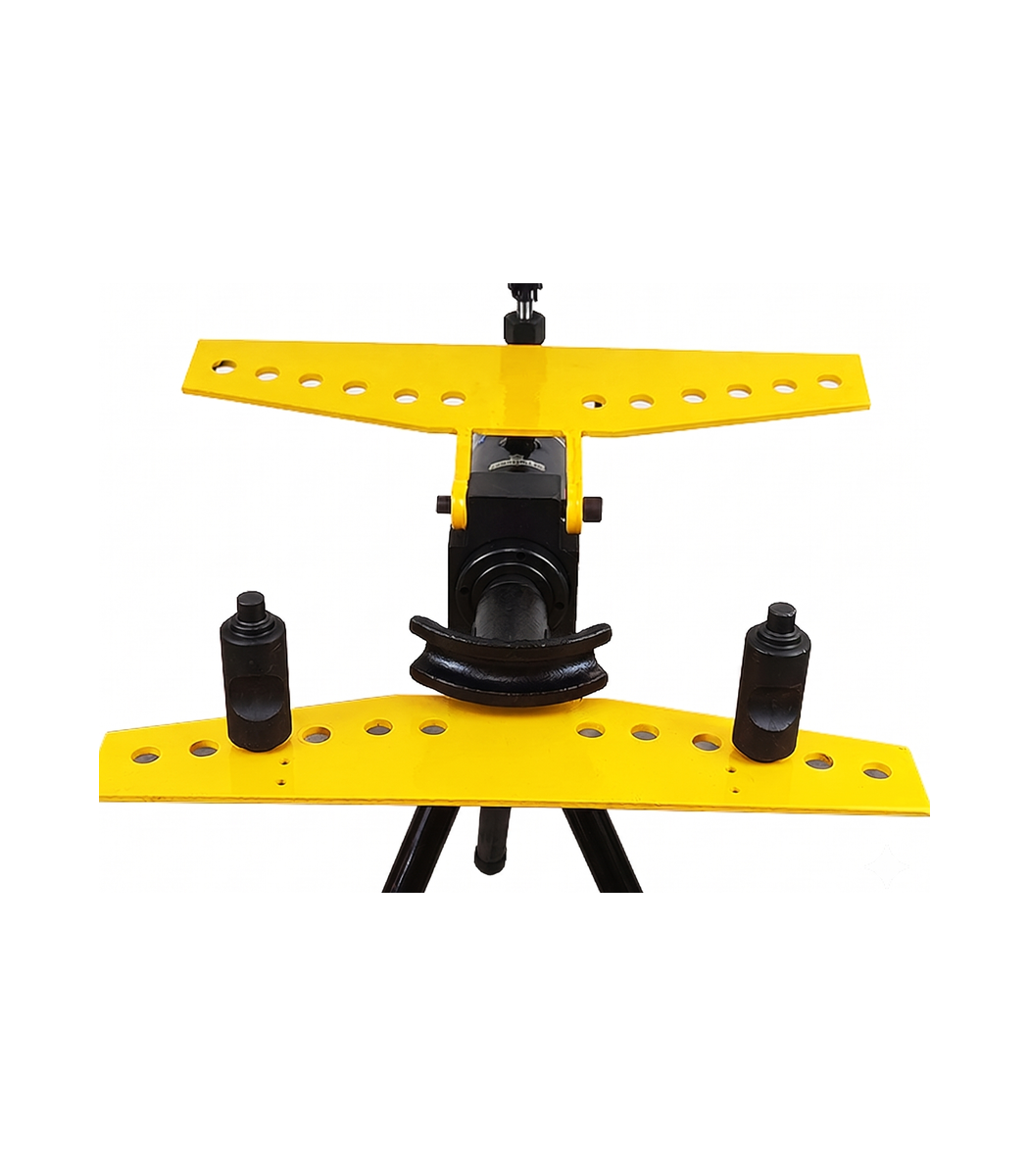

Hydraulic bending machine 10T 13-34mm SWG-1

Are you looking for an uncompromising tool that can effortlessly cope with the precise bending of thick-walled pipes?

The SWG-1 is a professional hydraulic bender with a pressure of up to 10 tonnes, equipped with a stable tripod. Created for installers, construction workers, locksmiths and DIY enthusiasts who expect perfect results without material deformation.

Thanks to the powerful hydraulic cylinder, the work becomes light, smooth and does not require the use of high physical force.

The construction on a stable stand allows for comfortable work in all conditions – directly on the construction site or in the workshop.

Why choose the SWG-1?

• Powerful pressure – up to 10T: The hydraulic drive allows for instant and precise bending of steel, galvanized and black pipes without the risk of flattening them.

• Wide range of work (13-34 mm): Included are a complete package of professional dies that allow you to operate the most popular pipe diameters on the market.

• Ductile cast iron molds: Bending stones made of the highest quality ductile cast iron are characterized by gigantic strength, higher plasticity and resistance to cracks compared to ordinary gray cast iron.

• Stable tripod included: Three solid legs provide perfect support and safety when working with heavy load. Forget the bends moving around the table!

• Solid wooden box: The whole set is supplied in a heavy, durable wooden case, which guarantees safe transport and convenient tool storage.

 Technical Specification:

• Model: SWG-1

• Maximum actuator pressure: 10 Ton (10T)

• Working range (pipe diameters): 13 mm - 34 mm

• Pipe wall thickness: 2 - 3.5 mm

• Maximum piston stroke: 230 mm

• Application: Galvanized pipes, welded pipes, seamless steel pipes, guide pipes

• Weight of the whole set: approx. 21 kg

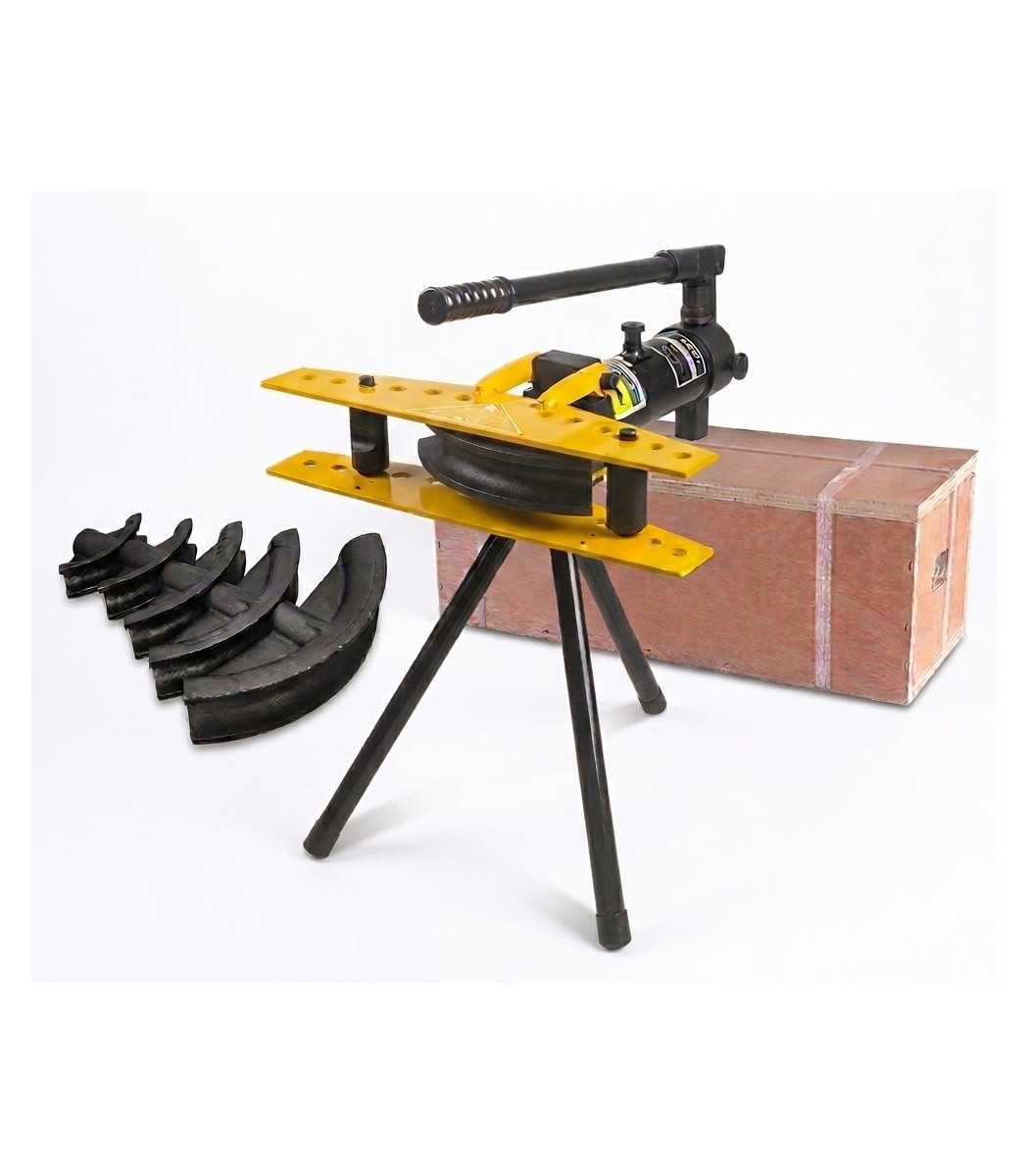

 The set includes:

• Hydraulic bender body 10T SWG-1

• Stable stand (3 support legs)

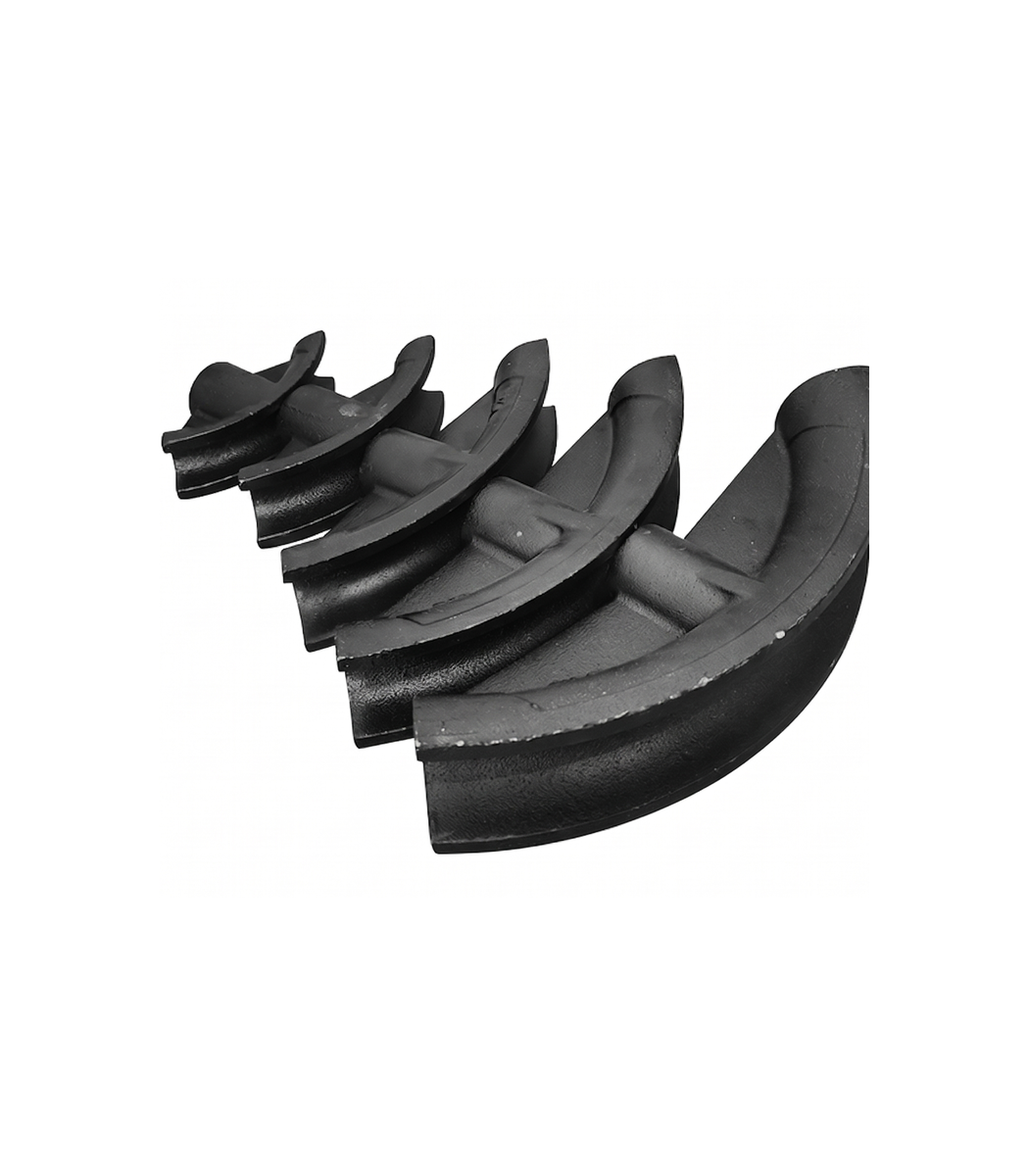

• Set of durable ductile cast iron dies (in the range of 13-34 mm)

• Adjustable side posts (columns)

• Long handle for pumping the actuator

• Solid wooden case with fittings
